FPV Camera Kit HDZero Whoop Lite Bundle Nano V3

Product detailed description

FPV Camera Kit HDZero Whoop Lite Bundle Nano V3

The FPV Camera + VTX HDZero Whoop Lite Bundle is a lightweight and high-performance digital FPV system designed for ultra-lightweight drones and whoops. This bundle includes the HDZero Whoop Lite VTX, which provides low-latency digital video transmission, and the HDZero Nano V3 Camera, delivering crisp and clear video quality. The set also comes with a Dipole Antenna, a 40mm MIPI cable for secure connectivity, and four rubber grommets (M3 to M2) for easy mounting.

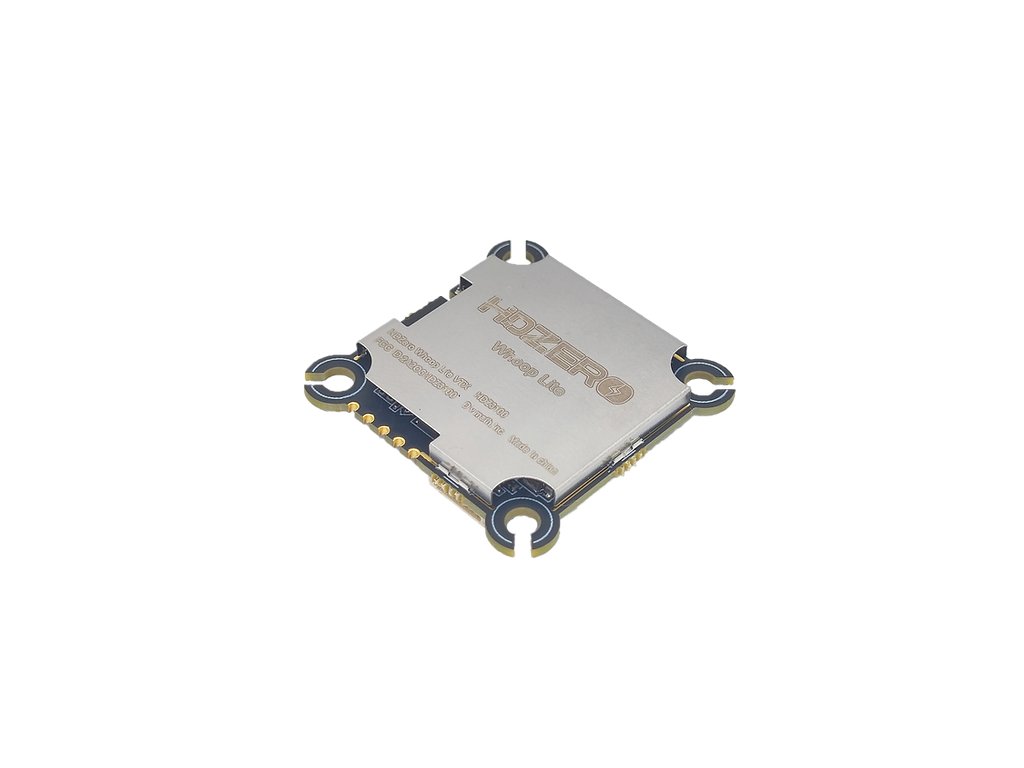

Whoop lite VTX Specification:

Frequency: 5.725-5.850GHz
Resolution: 1280×720 @ 60fps
RF power: 25mW / 200mW RF output
RF Connector: U.FL
Video Connector: MIPI
FC protocol: Smart Audio Support / MSP
Size: 32.5×32.5mm (29×29mm inner)
Weight: 4.5 grams / 4mm Thickness (without shielding)
Power: 7W
Power input: 1S-3S
Mounting: 25.5×25.2mm M2 soft mounting

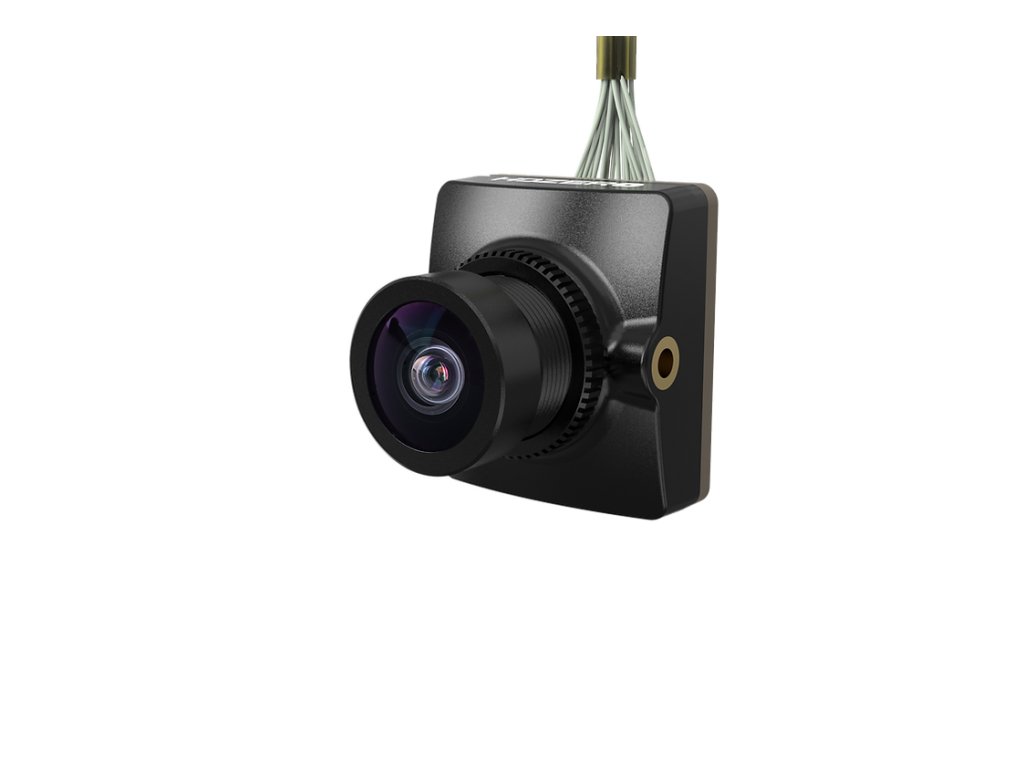

Nano V3 Camera Specification:

Size: 14×16×14mm
Weight: 2.2 grams
Sensor: 0.5 inch, up to 10650 mV/Lux-sec / Ultra-high sensitive CMOS sensor
FOV (Field of View): D: 155° / H: 126° / V: 94°

Package Includes:

1 x HDZero Whoop Lite VTX
1 x HDZero Nano V3 Camera
1 x Dipole Antenna
1 x 40mm Mipi Cable
4 x Rubber Grommet (M3 to M2)
