FC BETAFPV F722 2-6S 35A Toothpick Brushless ICM42688 BLHeli_S

Product detailed description

F722 2-6S 35A Toothpick Brushless FC ICM42688 BLHeli_S

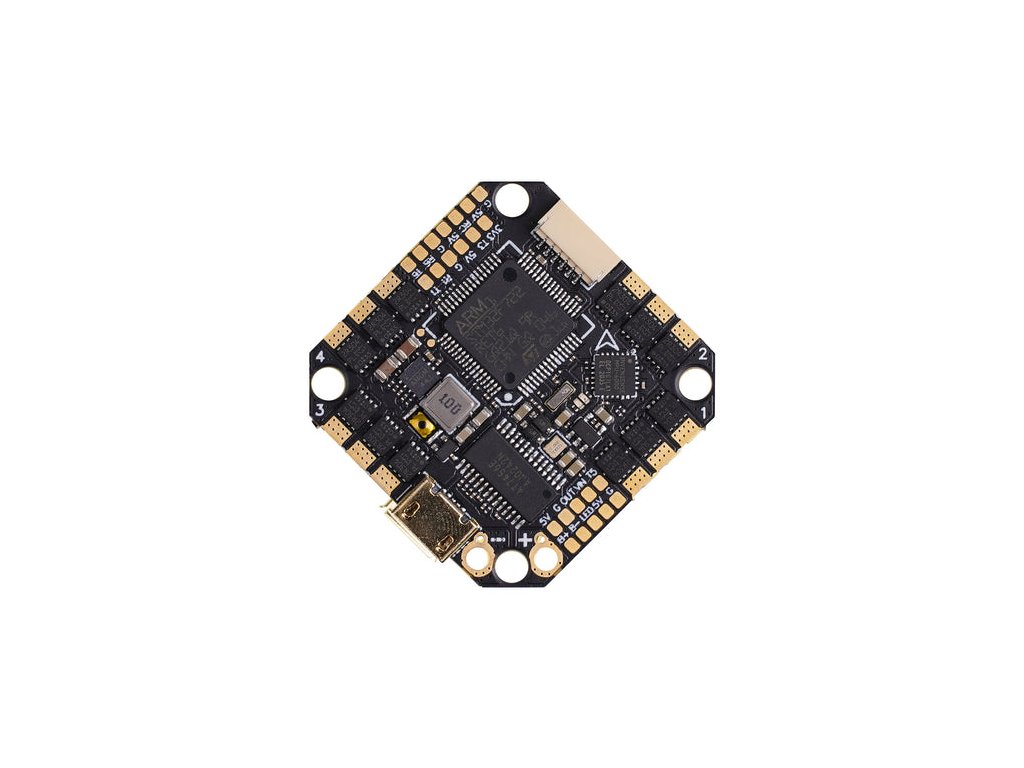

The F722 35A AIO Brushless Flight Controller is equipped with the STM32F722RET6 CPU. This board offers enhanced performance and high processing speed, ensuring a stable and smooth flight experience for 4"-5" drones. It features a 6-pin plug-and-play port, allowing direct connection to HD Digital VTX without the need for soldering.

Key Features:
-Abundant UART Ports: With 6 full UARTs available, the board provides flexibility for connecting various external components such as VTX, GPS, and receivers.
-High Current Handling: Capable of handling 35A continuous current (40A burst), supporting 2-6S lipo batteries, ensuring a robust flight performance for drones.

Specification of FC:
Item: F722 35A AIO Brushless Flight Controller
Weight: 7.06g(BLHeli_S)
CPU: STM32F722RET6
Six-Axis: ICM42688
Mounting hole size: 26x26mm
Firmware version: betaflight_4.3.0_STM32F7X2
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LED like WS2812 etc
Built-in current sensor

Specification of ESC:
Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
Input voltage: 2S-6S Lipo
Continuous current: 35A
Peak current: 40A
ESC firmware: BLUEJAY G_H_30_48_v0.16 (BLHeli_S)
Indicators: Power indicator (Red) / FC indicator (Blue)
Capacitance: CS/5x10x13mm/470μF/35V
Connector: 80mm 14AWG silicone cable with XT60
Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
