AIO FC BETAFPV F4 1S 12A SPI ELRS 2.4G

Product detailed description

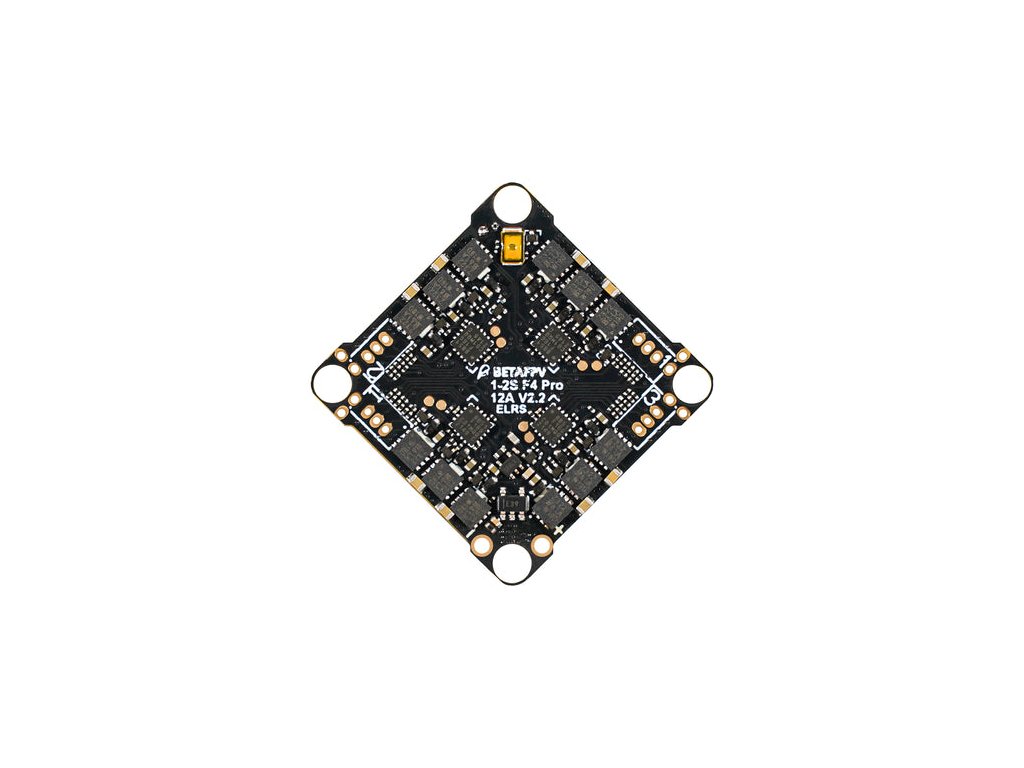

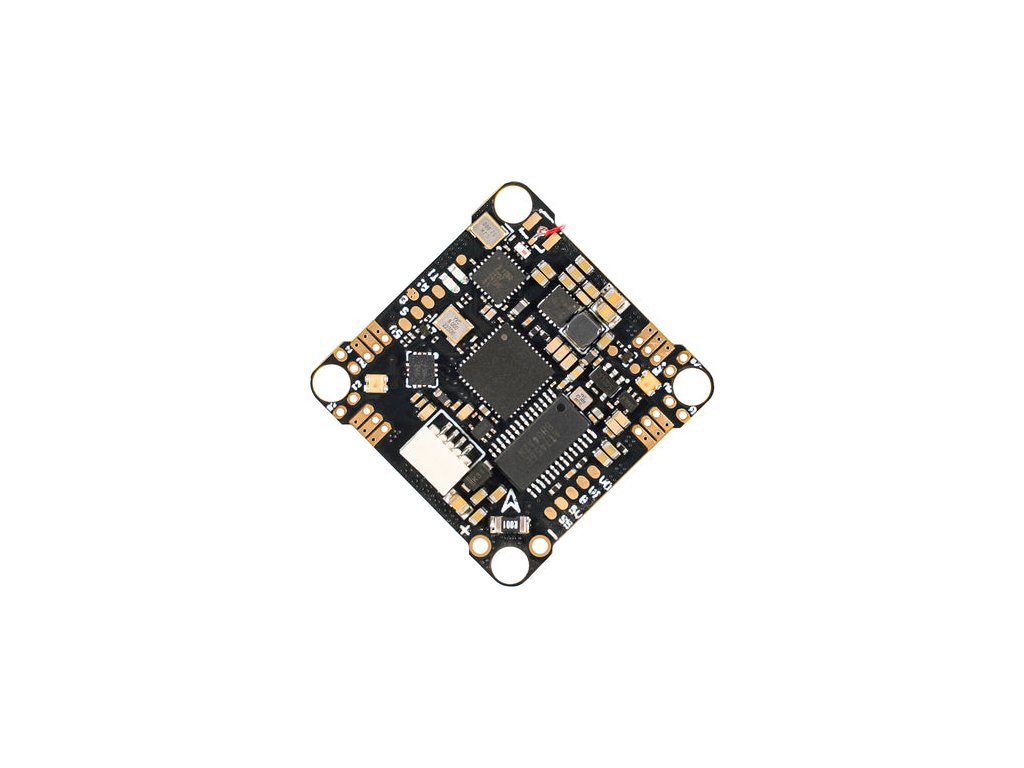

F4 1S AIO Brushless Flight Controller 12A - SPI ELRS 2.4G

F4 1S 12A AIO Brushless Flight Controller V2.2 is the default FC for Cetus X brushless whoop quadcopter, also great for 85mm whoop drones like Meteor85 and 3" toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone.

This is an updated FC to V2.2 with BMI270 gyro and BB51 ESC hardware in place of ICM20689 gyro and BB21 ESC hardware.

Specification of FC:
Item: F4 1S 12A AIO FC
Weight: 4.74 g (without power cable and BT2.0 connector)
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: BMI270 (SPI connection)
Firmware version: betaflight_4.3.1_BETAFPVF4SX1280
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: SPI ELRS 2.4G Receiver
Motor Pin Connector: 1.25mm Header Pins
Mounting Hole Size: 26x26mm (suitable for whoop pattern mounting hole)
USB Port: SH1.0 4-Pin

Specification of 1S 12A ESC:
Built-in ESC with 12A continuous and peak 25A current
Input voltage: 1S-2S
ESC firmware: C_X_30_48_V0.18.1.hex for Bluejay BB51 hardware
Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM

Package:
1 x F4 1S 12A AIO FC
4 x Anti-vibration Rubber Dampers
4 x M2 x 10mm Screws
4 x M2 x 10mm Screws
4 x M2 Screw Nut
8 x PH-1.25 Connectors for Motor
1 x SH1.0 4-Pin Cable
1 x SH1.0 4-Pin to USB Type-C Adapter
