AIO FC BETAFPV F4 1S 12A V3 Serial ELRS 2.4G V3 (AT32F435)

Product detailed description

F4 1S 12A AIO FC V3 Serial ELRS 2.4G V3 (AT32F435)

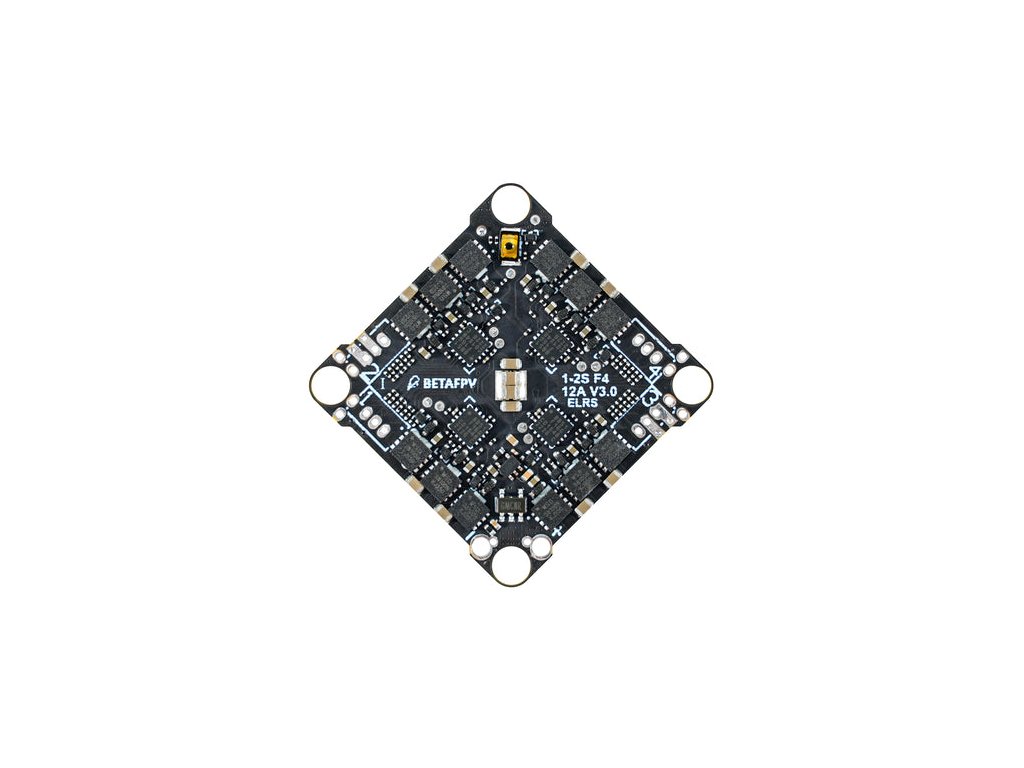

F4 1S 12A AIO Brushless FC V3, the FIRST flight controller designed specifically for HD VTX. This powerful controller features an STM32F405/AT32F435 chip for high-performance calculations and a 5V 3A BEC solution for the HD VTX. It weighs only 4.2 grams and includes a Serial ELRS 2.4G receiver, 16MB Black Box, Barometer, and Current meter. Designed for HD VTX, it removes the OSD chip AT7456E and also added support for external GPS through Betaflight 4.4.0.

Specification

Six-Axis: ICM42688P (SPI connection)

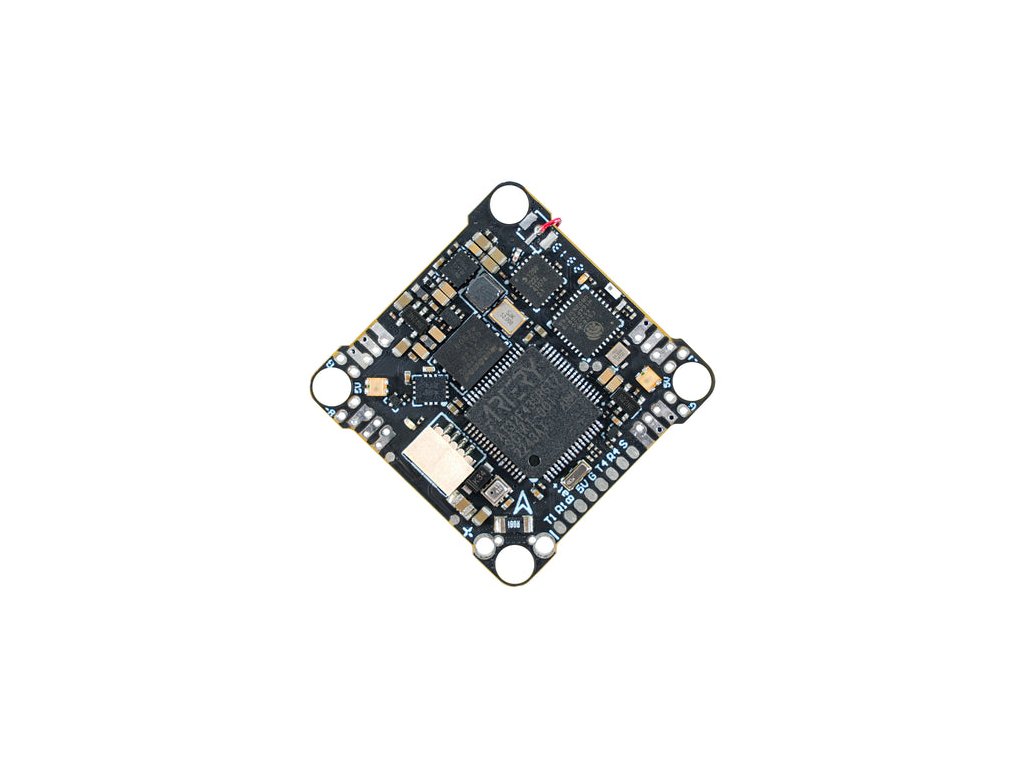

MCU: AT32F435RGT7 (288MHz)
Firmware version: ATBetaflight_4.3.2_BETAFPVF435_RC3 (AT32F435)
Receiver: Serial ELRS 2.4G Receiver
Receiver firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2
Antenna: Enameled wire
Blackbox Memory: 16MB
Sensor: Barometer (BMP280), Voltage&Current
Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
BEC*: 5V 2A@4V supply, 5V 3A@8V supply
USB Port: SH1.0 4-Pin
Built-in ESC with 12A continuous and peak 25A current
ESC input voltage: 1-2S
ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
Signal support: D-shot300, D-shot600

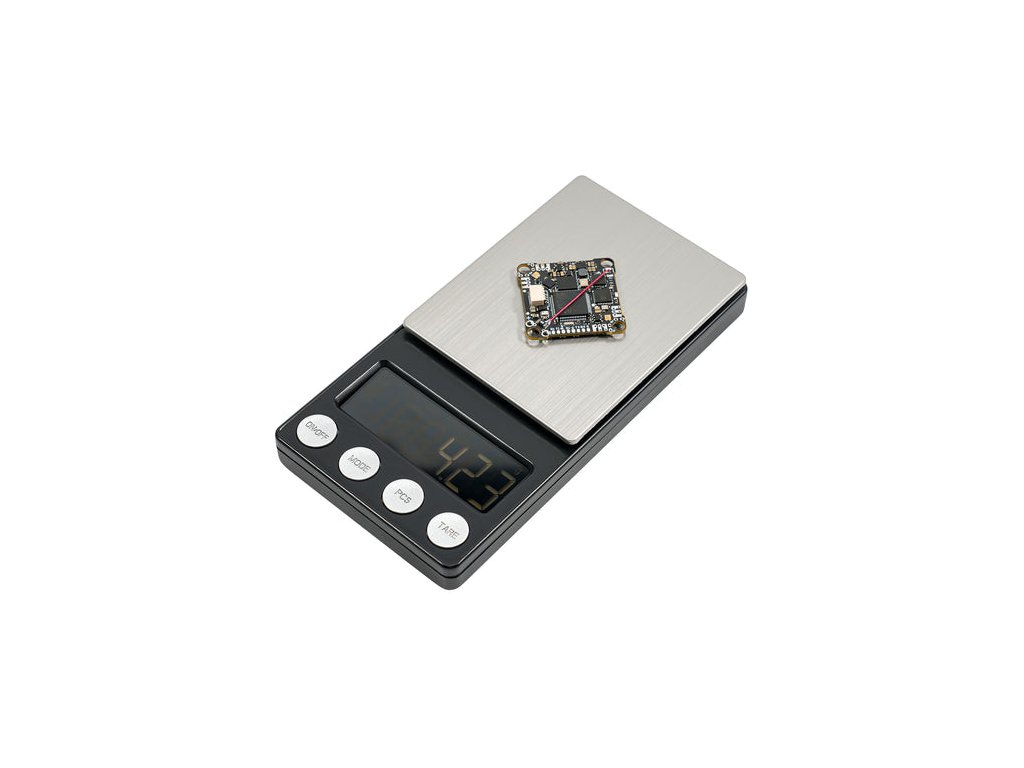

Weight: 4.23g (without motor connectors), excluding power cable

*The output current of BEC will decrease as the temperature increases

Recommend Parts

Drones:  Meteor75 HD, Meteor75 Pro HD, Pavo Pico Brushless Whoop Quadcopter, 85mm whoop frame like Meteor85 HD, 3" toothpick drones
Battery: BT2.0 450mAh 1S 30C Battery, 450mAh 2S 45C Battery
Motor: 1102 18000KV motor, 1103 11000KV motor
Propeller: HQ3020 2-blade Props, 2020 4-blade Props

Package
1 * F4 1S 12A AIO FC V3
4 * M2*10 machine screw
4 * M2*10 nylon screw
4 * M2 nuts
4 * shock absorbing ball
4 * JST1.25mm angle socket
4 * JST1.25mm straight socket
1 * SH1.0 4Pin adapter cable
1 * Type-C to SH1.0 adapter
1 * XT30 power cord
1 * filter capacitor
