ESC 6in1 Pilotix BLS 3-6S 65A burst 75A
Code: 5161Related products
Product detailed description

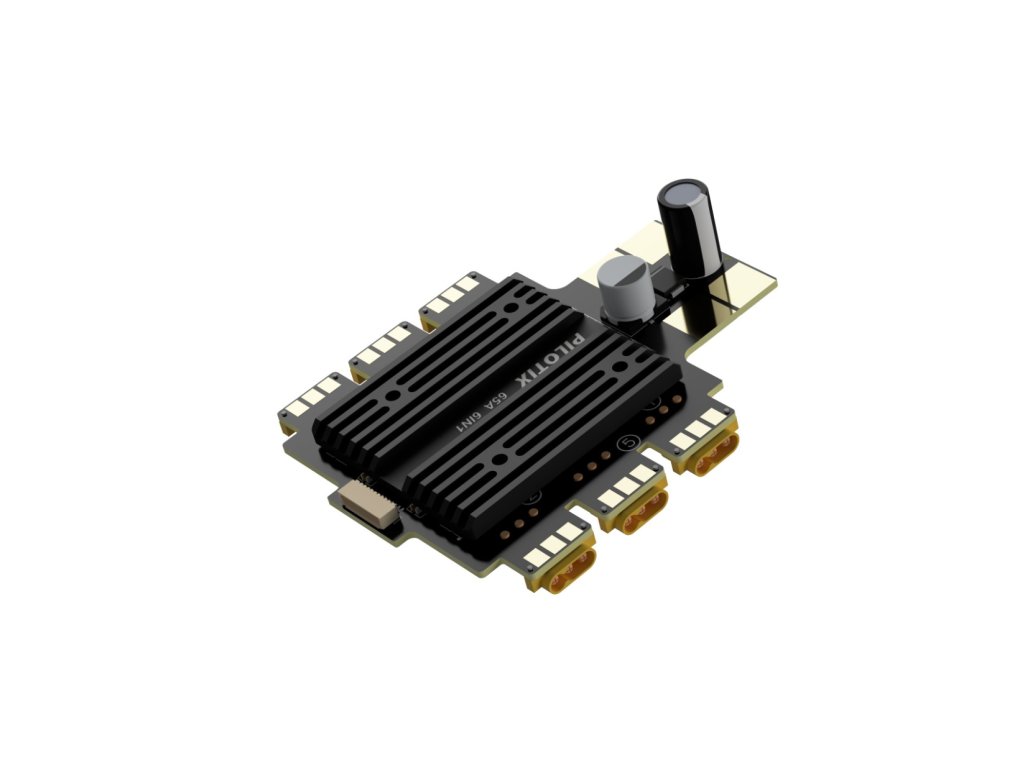

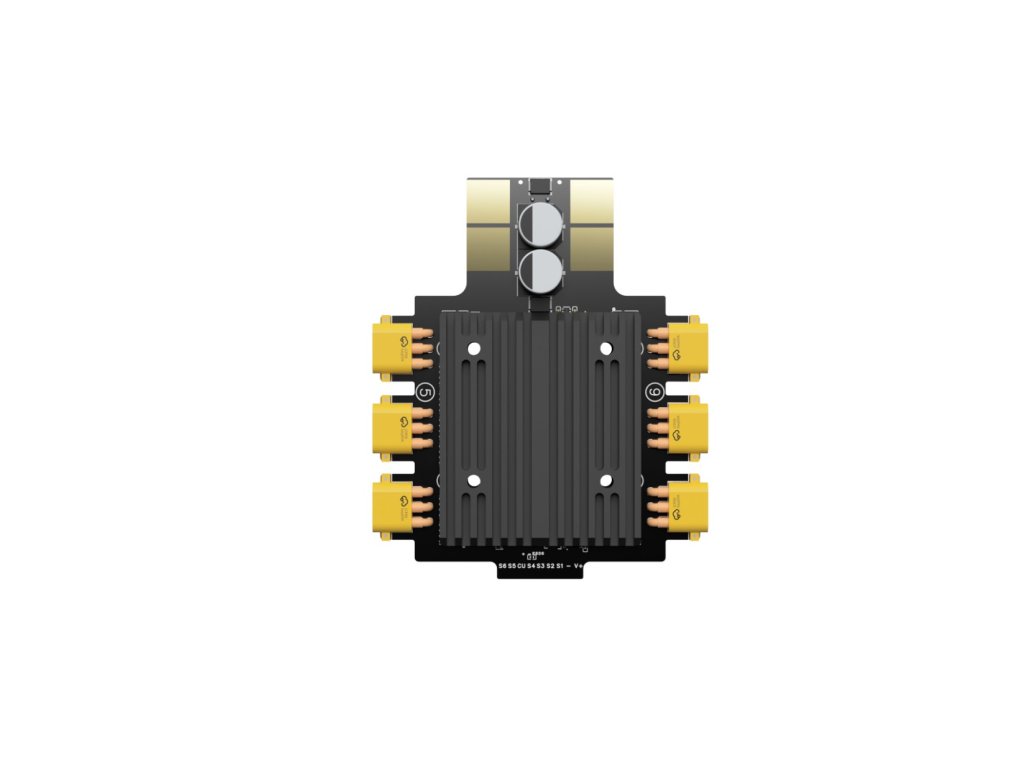

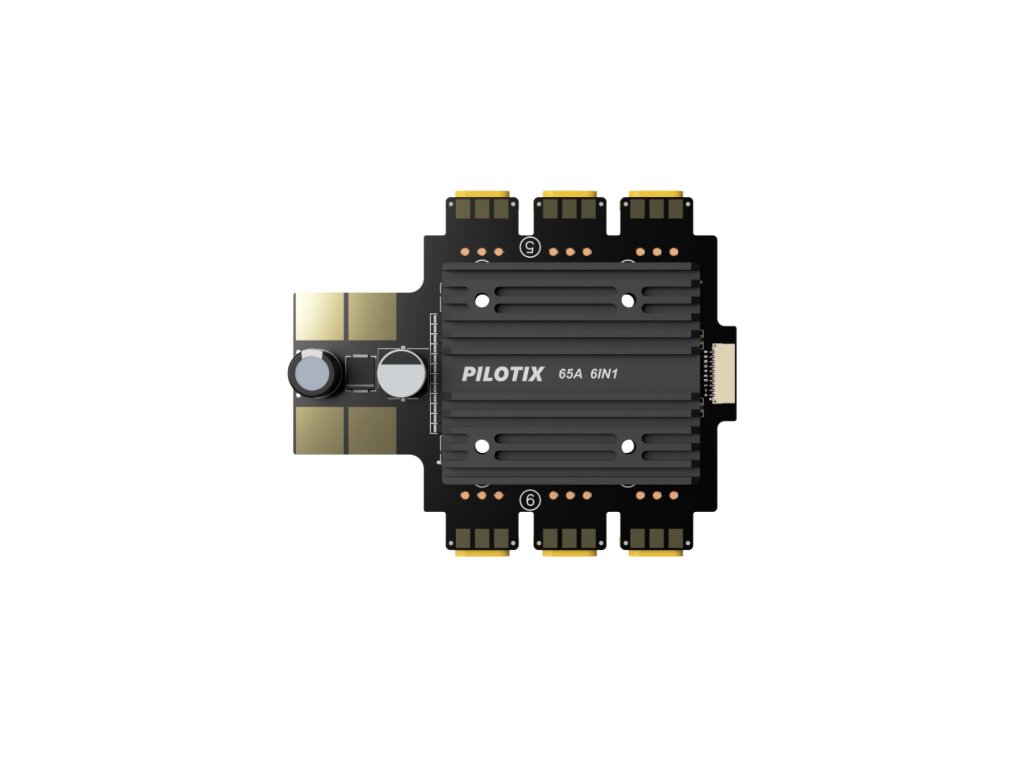

ESC 6in1 Pilotix BLS 3-6S 65A burst 75A
The Pilotix BLS 6in1 ESC is a high-performance electronic speed controller designed for demanding FPV applications. Supporting 3-6S LiPo batteries, it delivers a continuous current of 65A with a burst capability of up to 75A, ensuring reliable and robust power delivery. Its advanced design features provide smooth and precise throttle control, essential for high-speed maneuvers and stable flight performance. Ideal for both professional pilots and enthusiasts, the Pilotix BLS ESC combines durability with exceptional efficiency to enhance your FPV experience.
Model Name: Pilotix BLS 65A 6IN1 ESC
Input voltage: 3-6S(10.5-25.2V)
Working temperature: -40℃ to 80℃
Continuous current(single motor): 65A
Burst current(single motor): 75A
Continuous power(single motor): 1600W
Peak power(single motor): 1900W
Current sensor: Yes
Telemetry: No
Bidirectional Dshot: Support
ESC firmware: BLheli_S 16.7/Bluejay 0.19.2
ESC protocol: DShot150/300/600/MultiShot/ OneShot PWM etc.
Dimensions(L*W*H): 93x77x29mm
On board capacitors: 35V 1000uf*1, 35V 470uf*3
Connector: Amass MR30
PCB board: 6 layer 3 OZ copper thickness
Configuration tool: https://esc-configurator.com/
Important Notice:
1. When running at a continuously high current, sufficient heat dissipation and an active cooling fan is highly recommended.
Package Includes:
1x ESC 6in1 Pilotix BLS 3-6S 65A burst 75A
Additional parameters
| Category: | ESC |
|---|---|
| Continuous Current: | 65A |
| ESC Type: | 6-in-1 |
| Mounting Size: | 93x77x29mm |
| Power Supply: | 3-6S |
