Detailed information

Product detailed description

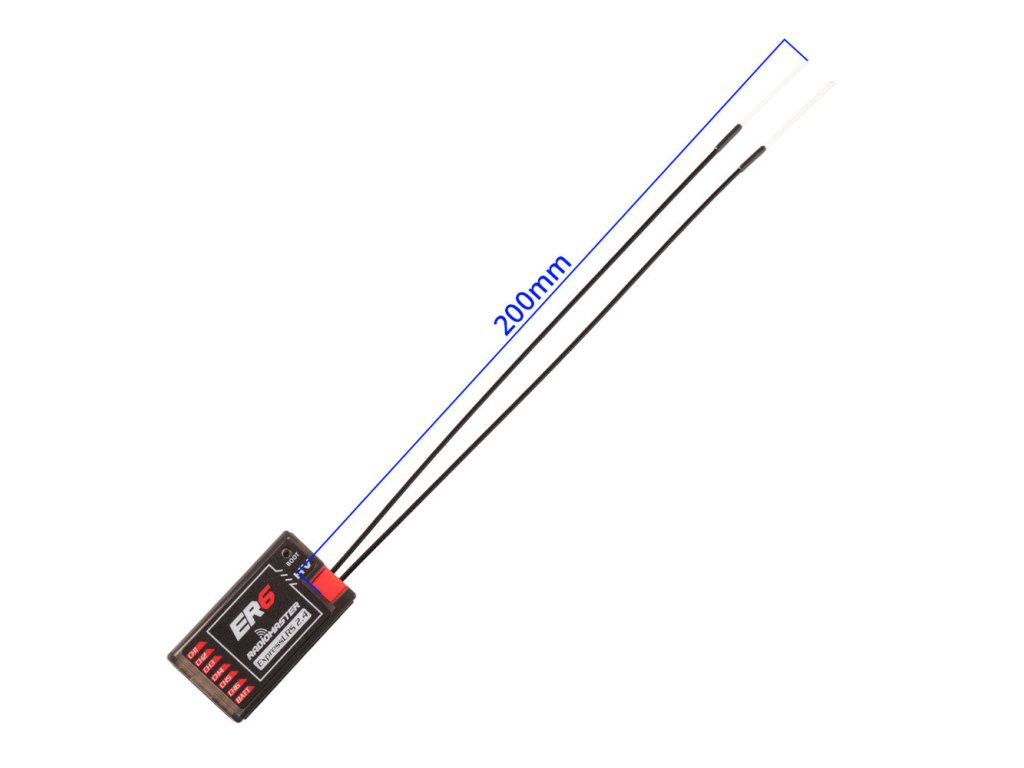

ER6 2.4GHz ELRS PWM Receiver

The RadioMaster ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate the later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power of up to 100mw. The receiver shell adopts a one-piece molding process with high structural strength.

Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground-up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High-quality 2.54 mm connector
- Standard 20 cm High Sensitivity Antenna
- Reserve 4pin CRSF input port

Specification:
Item: ER6 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V
Antenna type: 20cm high sensitivity dual antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Telemetry power: maximum 100mw (LUA Adjustable)
Telemetry Battery voltage detection range: DC 4.0 - 35V
Bus interface: CRSF
Weight: 14.5 grams
Dimensions: 43x25x15mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6 2400 PWM RX

Additional parameters

Category: Drone Receivers
Protocol: ELRS2.4
