Servo Emax ES09MD for 450 helicopters

Product detailed description

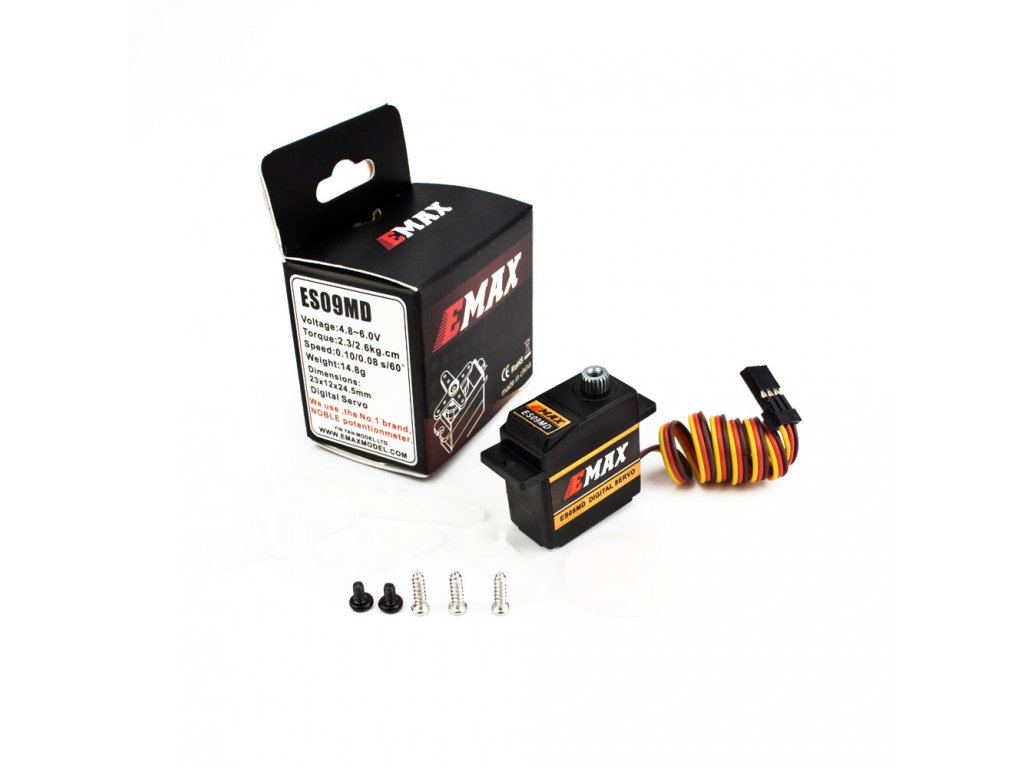

Emax Servo ES09MD for 450 helicopters

The Emax ES09MD(dual-bearing) specific swash digital servo with metal gear for 450 helicopters. Applies NOBLE potentiometer which assures the coherence. Accessories include an arm and screw pack.

Specifications:
Type: Digital
Gears: Metal
Operating voltage: 4.8-6V
STD Direction: Counter Clockwise/Pulse Traveling 1500 to 1900usec
Stall Torque: 4.8V 2.3Kgf.cm / 6V 2.6Kgf.cm
Operating Speed: 4.8V 0.10 Sec/60° at no load; 6V 0.08 Sec/60° at no load
Size: 23x12x24.5mm
Weight: 14.8g
Plug Available: FUT; JR
