FPV Drone iFlight Defender 16 HD 2S BNF (No receiver)

Product detailed description

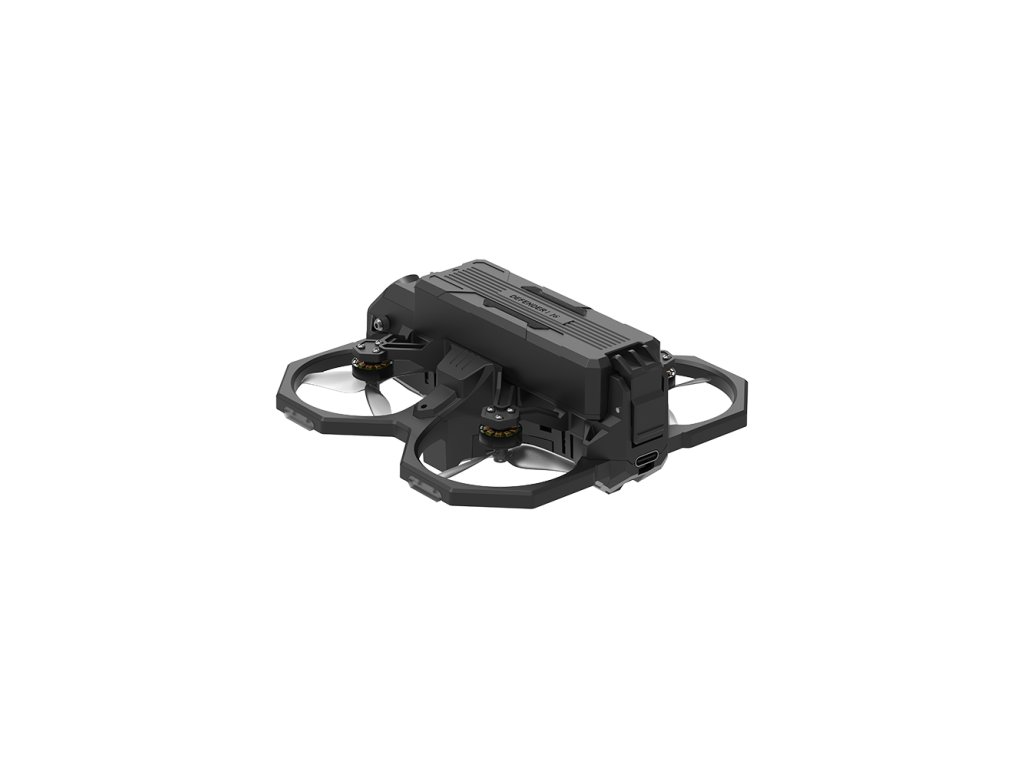

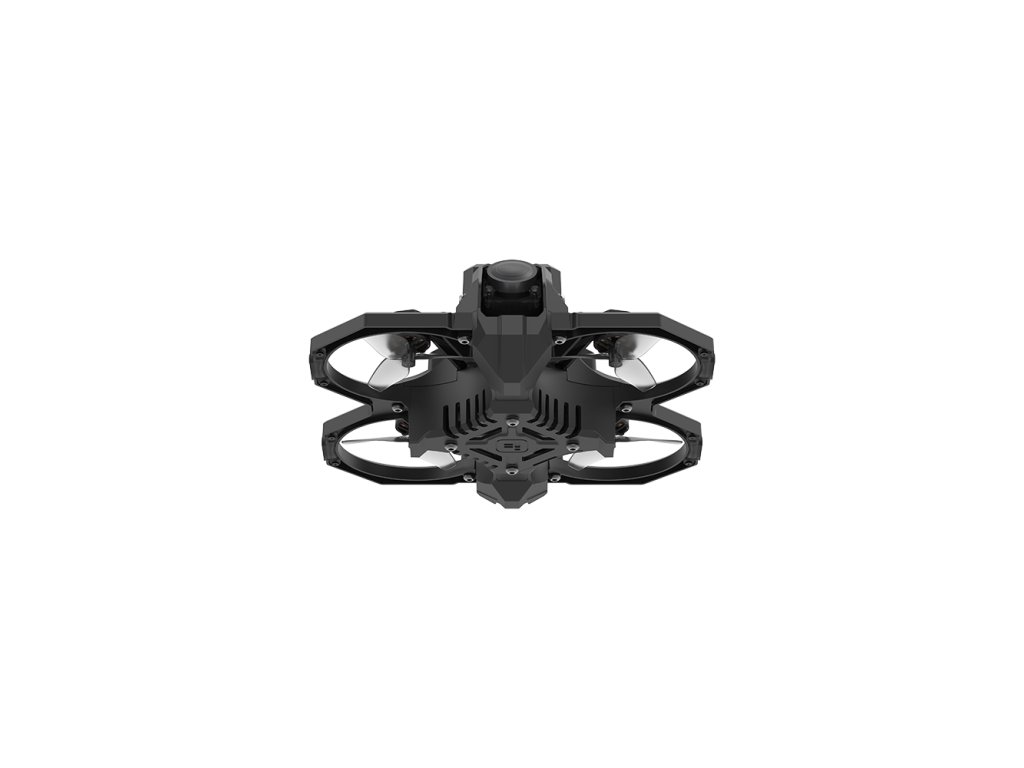

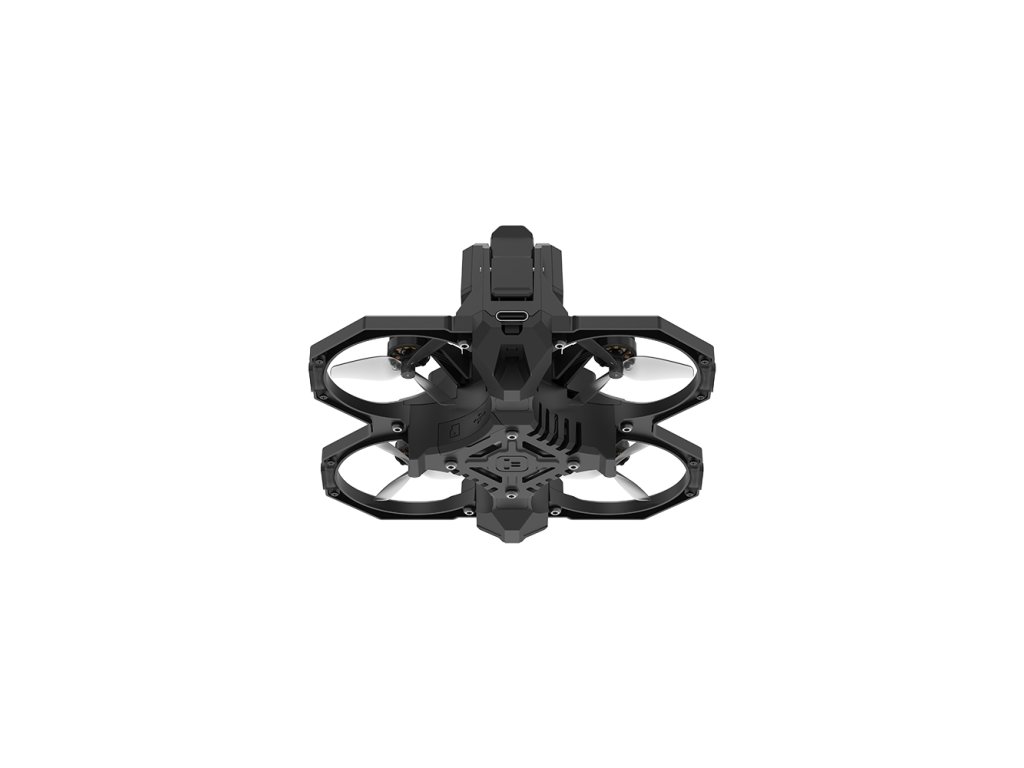

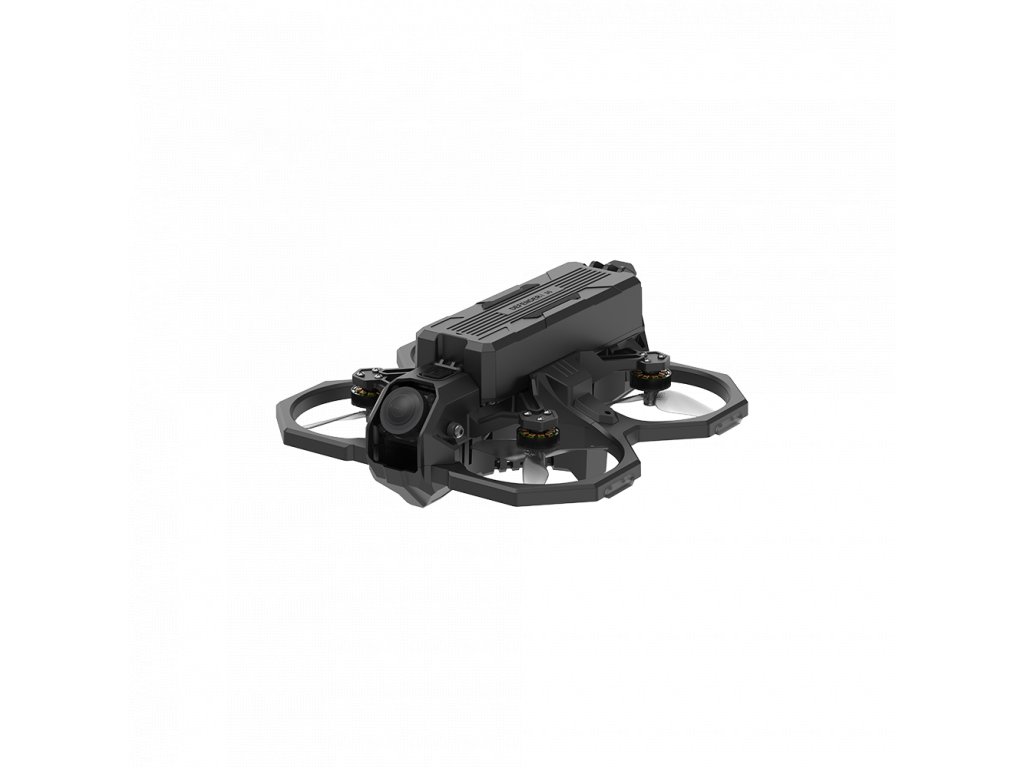

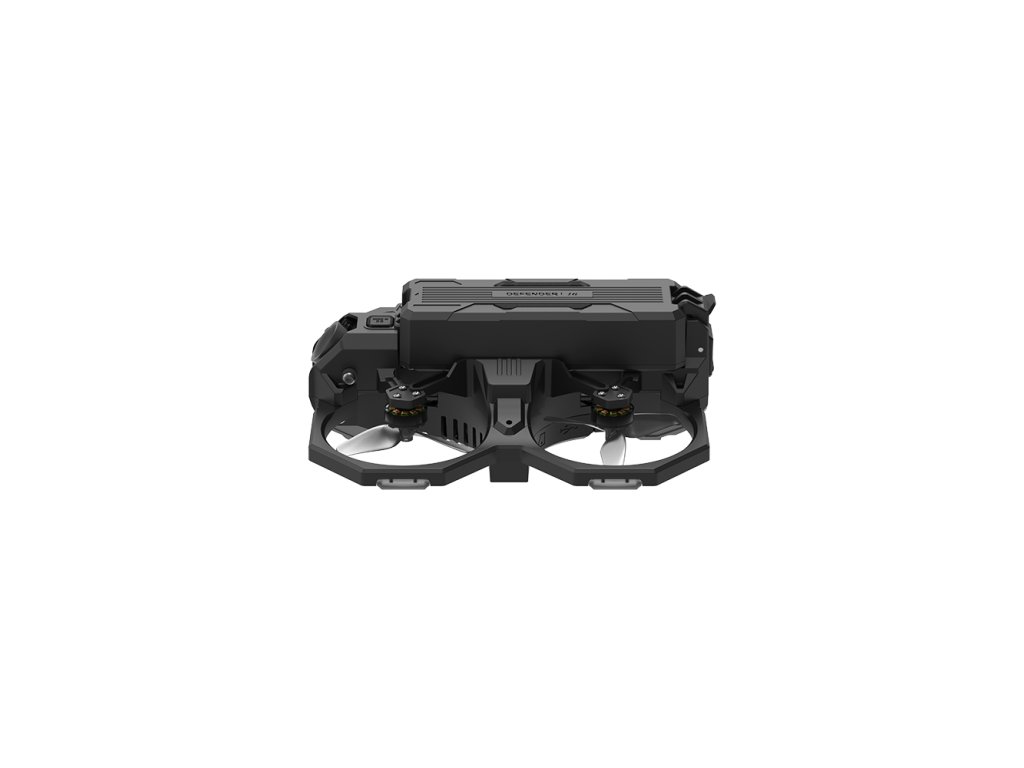

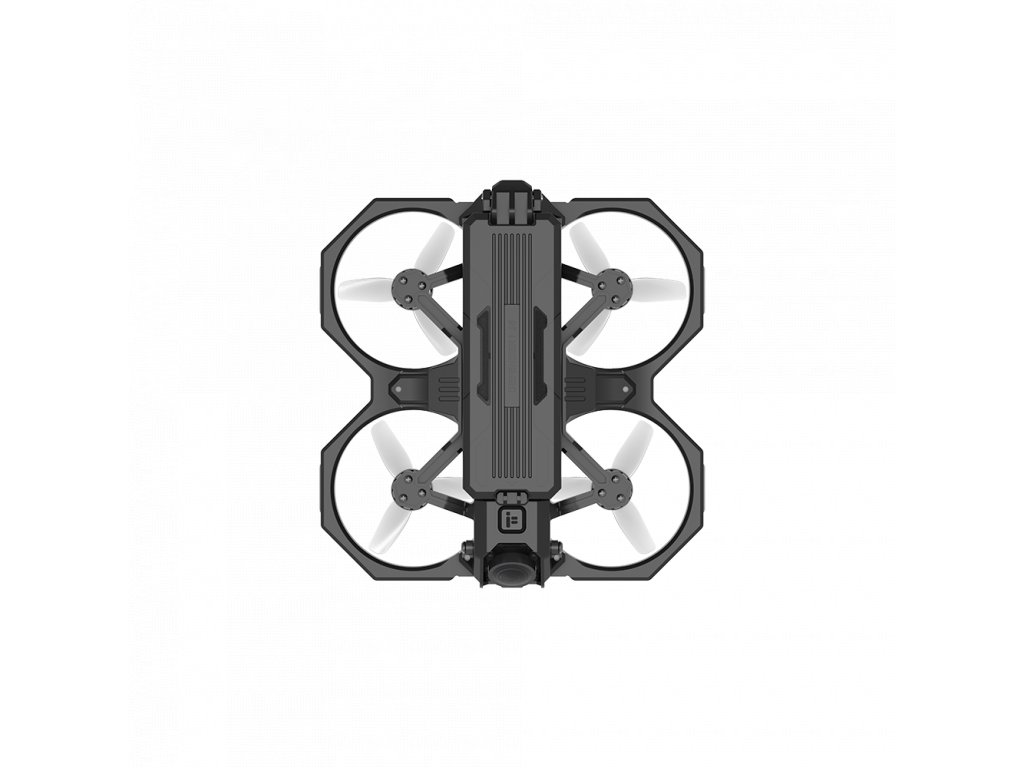

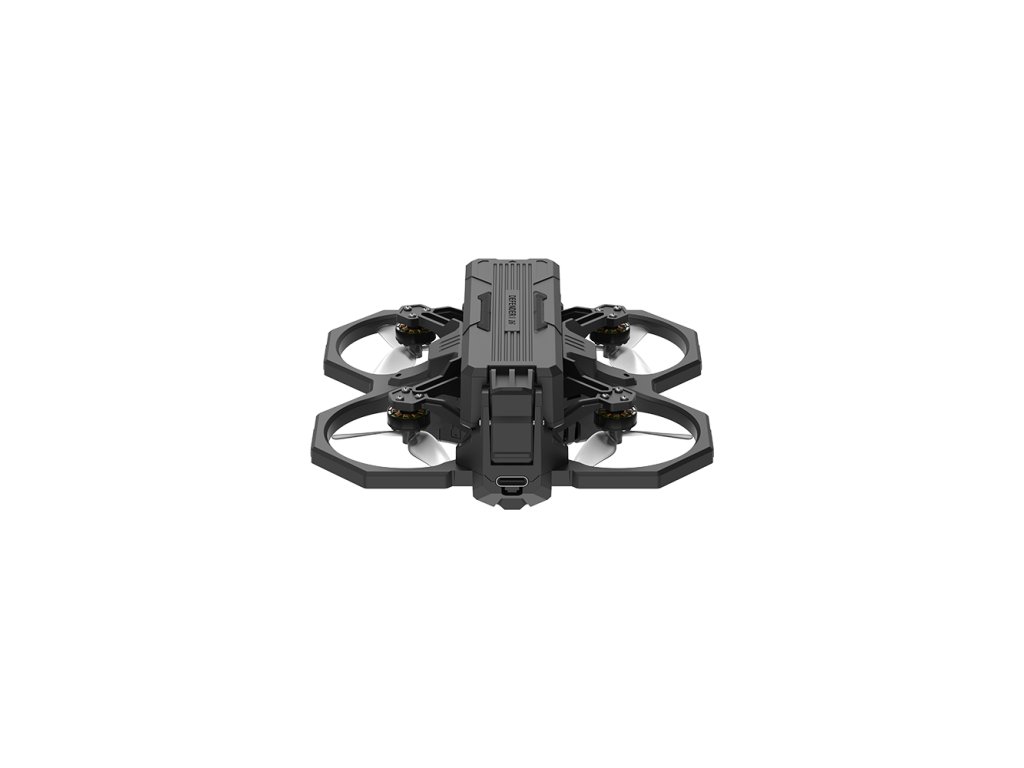

Defender 16 HD 2S BNF (No receiver)

Features:

- Palm Size Micro FPV drone. The compact Defender 16 is just as portable as it can be. The whole frame is injection molded for durability and is lightweight, the Defender 16 is the smallest and lightest 4K whoop drone by iFlight with 128g takeoff weight.

- Customized O3 Lite Air Unit. Equipped with the DJI O3 Air Unit HD transmission system, the Defender 16 supports 4K/120fps video and shoots up to 155° distance super-wide FOV footage for stunning visuals.

- One-button Functional Power Switch. Better operation through one physical button, not only just power on and off but also inbuilt programmable RGB light colors and modes to visually display the battery power. Added a protective circuit to extend the lifespan of the battery connector and prevent rapid voltage or current spikes which can protect your electronics from damage.

- Innovative Quick-Release Battery with Type-C fast charger. The Defender 16 comes with a stock 2S 900mAh providing up to 6min flight time. Crash-protected battery shell and innovative quick-release structure for easy replacement. Upgraded plug-and-play Type-C charger for user-friendly fast charging, get 80% charge in just 18 minutes. The battery has an inbuilt auto-discharge module, it will discharge itself when not in use, making it safe and worry-free.

- Easy to use for beginners and professionals. By using dustproof port plugs to isolate the interface from the outside, ensure function properly. Extend the life of the interface.

- Easy to repair. The drone can be disassembled with only 6 screws, making it much more convenient for maintenance and repair. All ports and buttons are easy to access from the outside.

Countless easy-to-use features let you get started right away.

1) No soldering is required for the whole drone, motors, and propellers adopting the plug-in mounting method.

2) A dedicated VTX mount bracket with a central grille opening, together with the air duct design in the drone, can dissipate heat when flying.

3) USER1 preset as video transmitter power supply switch, used to manually turn off the VTX when idle to save power and prevent overheating.

4) Customized vibration-damped O3 camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization, jello-free.

Specifications:

Product Name: Defender 16 O3 2S HD
Receiver Option: No additional receiver (for use with DJI FPV Remote Controller 2)
Flight Electronics: Defender 16/20 F411 AIO
Video Transmission: DJI O3 Air Unit (naked version)
Frame wheelbase: 81mm
Motor: Defender16 1103 14000KV motors
Prop: Defender 16 1809-3 Propellers
Takeoff Weight incl. 900mAh battery: 128g
Dimensions (L×W×H): 121x117x47mm
Max Speed: 55Km/H (Manual Mode)
Maximum Takeoff Altitude: 2000 m
Max Hover Time: Approx. 6 mins(with 2S 900mAh battery)
Max Wind Speed Resistance: Level 3
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: N/A

Video Transmission
Product Name: Naked DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only); 5.725-5.850 GHz(RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Recommended Charger:
- Charger not included in combos, and sold separately.
- To ensure charging speed, it is recommended to use Flight PD 100W Charger or PD 30W Charger, or other USB chargers that support USB PD and QC fast charging protocols.

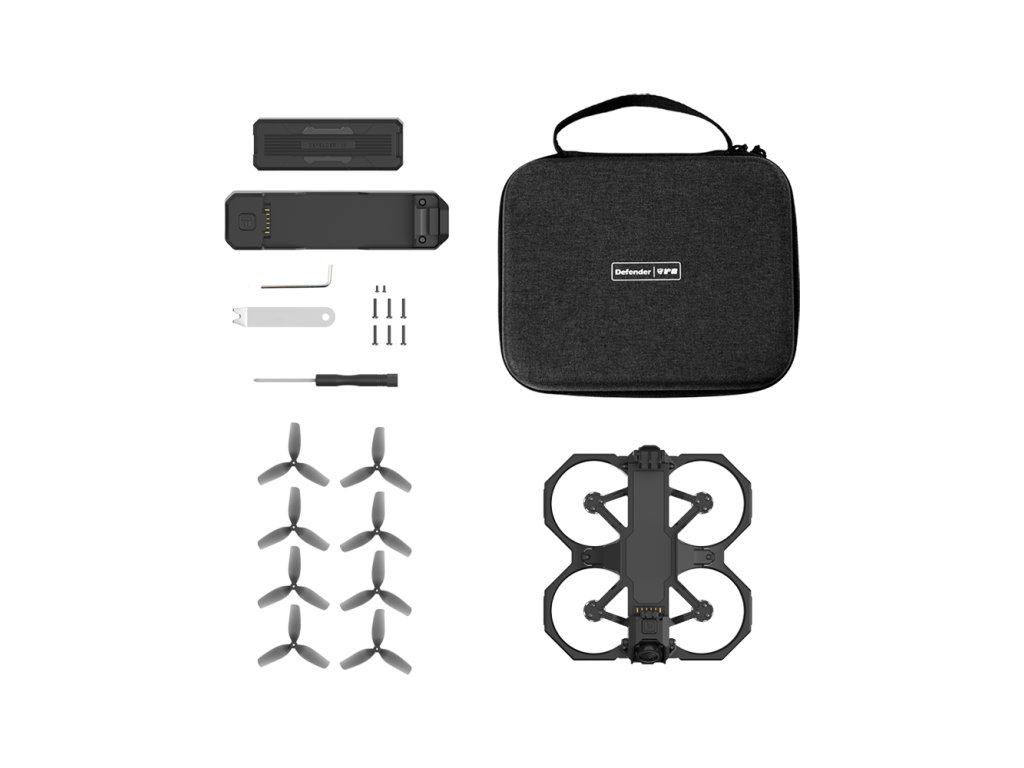

Package Includes:
1 x Defender 16 O3 HD BNF (No receiver)
1 x Defender 16 900mAh 25C 2S Battery
1 x Defender 16 Type-C Charging Adapter
4 x GEMFAN 45mm Props(Pairs)
4 x Defender 16 Props (pairs)
1 x Propeller Removal Tool
1 x Defender 16 Carrying Case
