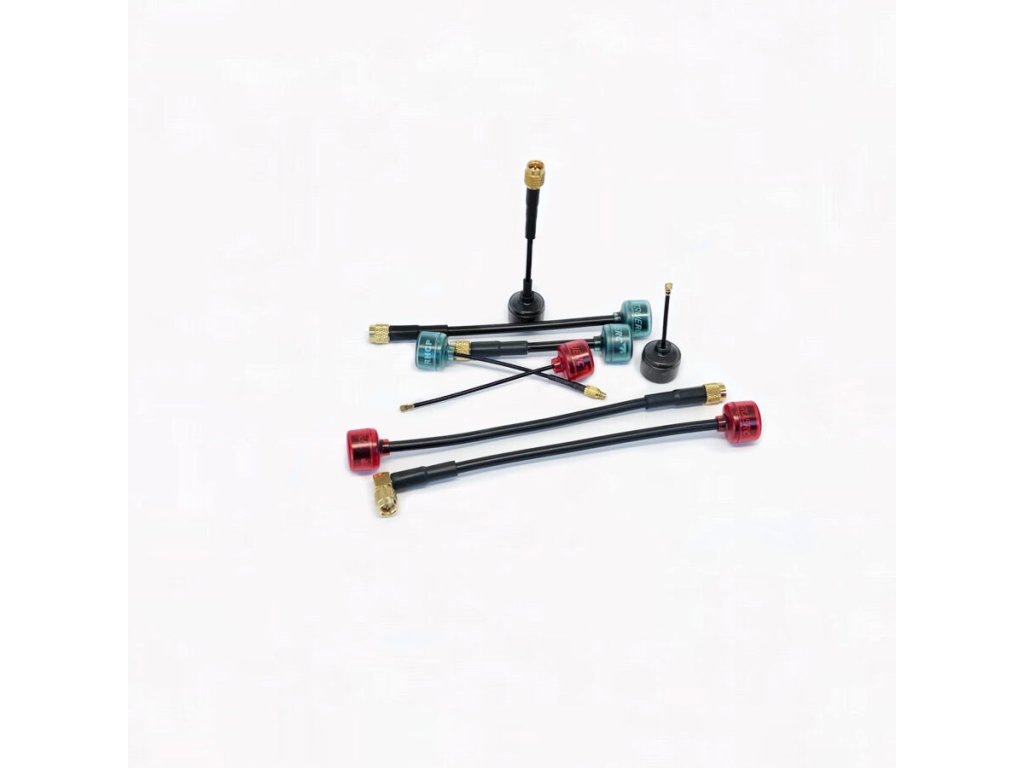

Antenna TrueRC CORE SMA90 155mm (RHCP, RED)
Code: 0608597254815Product detailed description
CORE SMA90 155mm (RHCP, RED) The CORE 5.8 is an omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. The CORE 5.8 has a very durable outer shell that protects the antenna from inevitable crashes. It is available in three different colors, with various polarization, connectors and cables. Features: - Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing - Clear indication of polarization direction - Smooth radiation pattern with even gain in all directions - Excellent axial ratio and efficiency - Flexible coax cable option that deflects impacts - Exclusive knurled True-SMA for easy tightening Specifications: Model: CORE 5.8 Color: Red Connector&Cable: SMA90 155mm Gain: 1.9dBic Polarization: RHCP Cross-Polar Rejection: -10 to -20dB Bandwidth: 5.5GHz-6.1GHz Radiation Efficiency: 98% SWR: <=1.2:1 Weight: Vary with connector/cable option Dimensions(head): 16.9mm dia. x 13.1mm height.
Additional parameters
Category: | VTX Antennas |
---|---|
Connector Type: | SMA90 |
Frequency: | 5.8GHz |
Length: | 155mm |
Polarization: | RHCP |
The item has been sold out… |
