Antenna TrueRC CORE RP-SMA 160mm (RHCP, RED)

Code: 0608597254877
Not rated
Brand: TrueRC
€15,80 €13,06 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

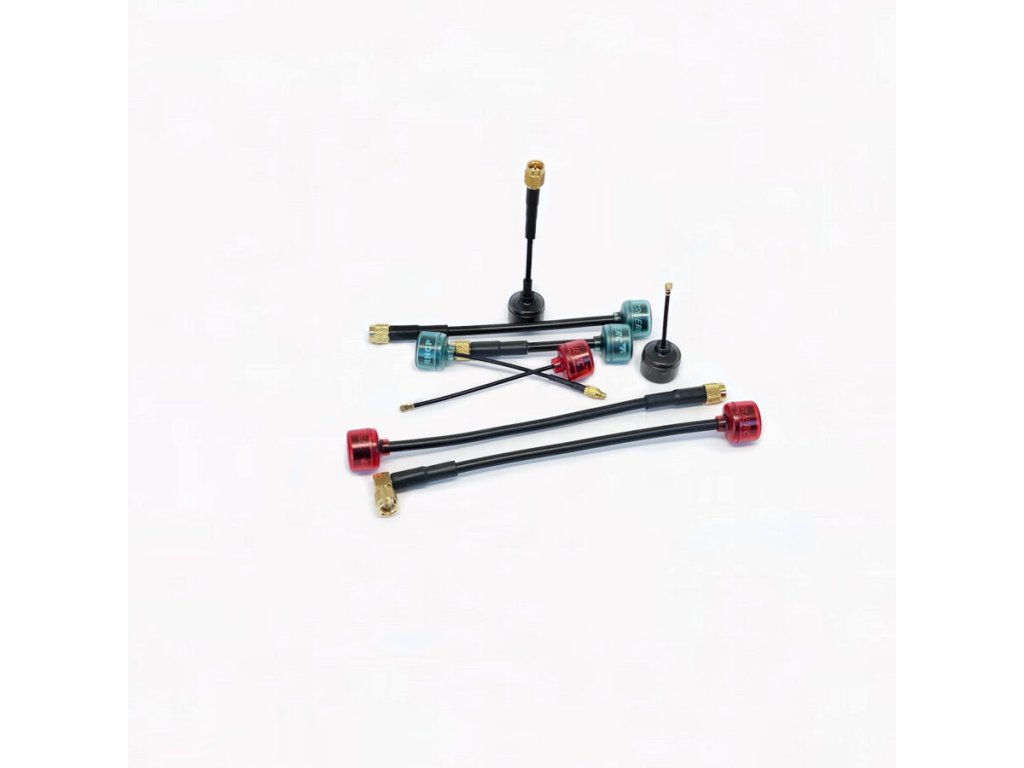

CORE RP-SMA 160mm (RHCP, RED)

The CORE 5.8 is an omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. The CORE 5.8 has a very durable outer shell that protects the antenna from inevitable crashes. It is available in three different colors, with various polarization, connectors and cables.

Features:
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Flexible coax cable option that deflects impacts
- Exclusive knurled True-SMA for easy tightening

Specifications:
Model: CORE 5.8
Color: Red
Connector&Cable: RP-SMA 160mm
Gain: 1.9dBic
Polarization: RHCP
Cross-Polar Rejection: -10 to -20dB
Bandwidth: 5.5GHz-6.1GHz
Radiation Efficiency: 98%
SWR: <=1.2:1
Weight: Vary with connector/cable option
Dimensions(head): 16.9mm dia. x 13.1mm height.

Additional parameters

Category: VTX Antennas
Connector Type: RP-SMA
Frequency: 5.8GHz
Length: 160mm
Polarization: RHCP
