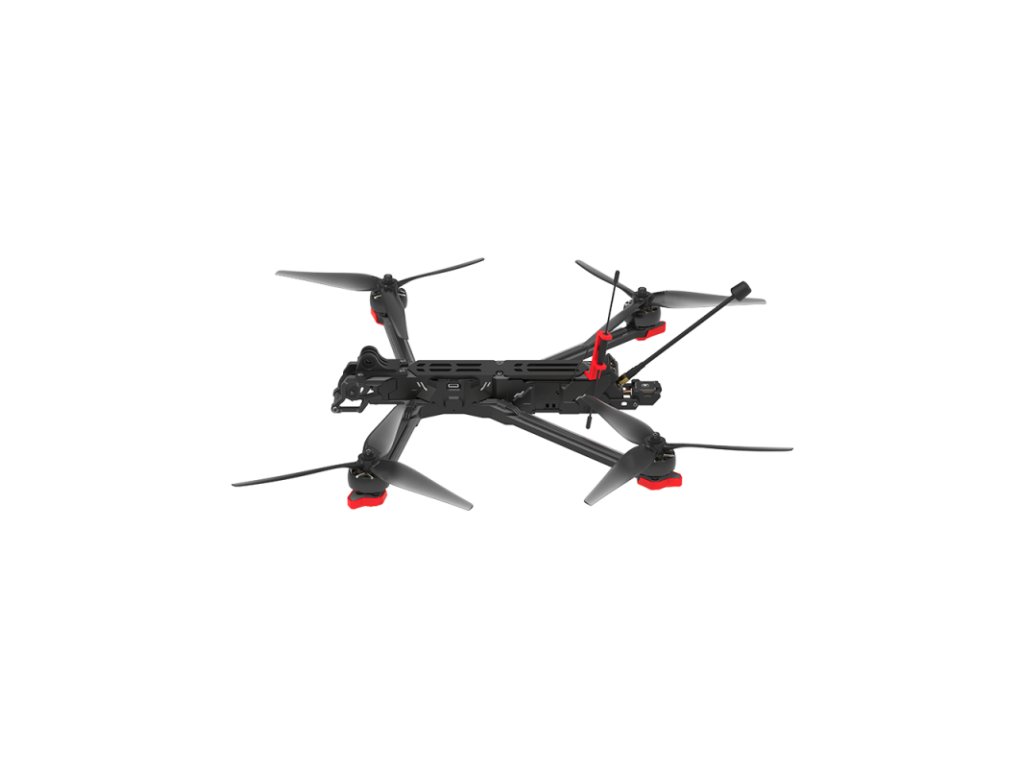

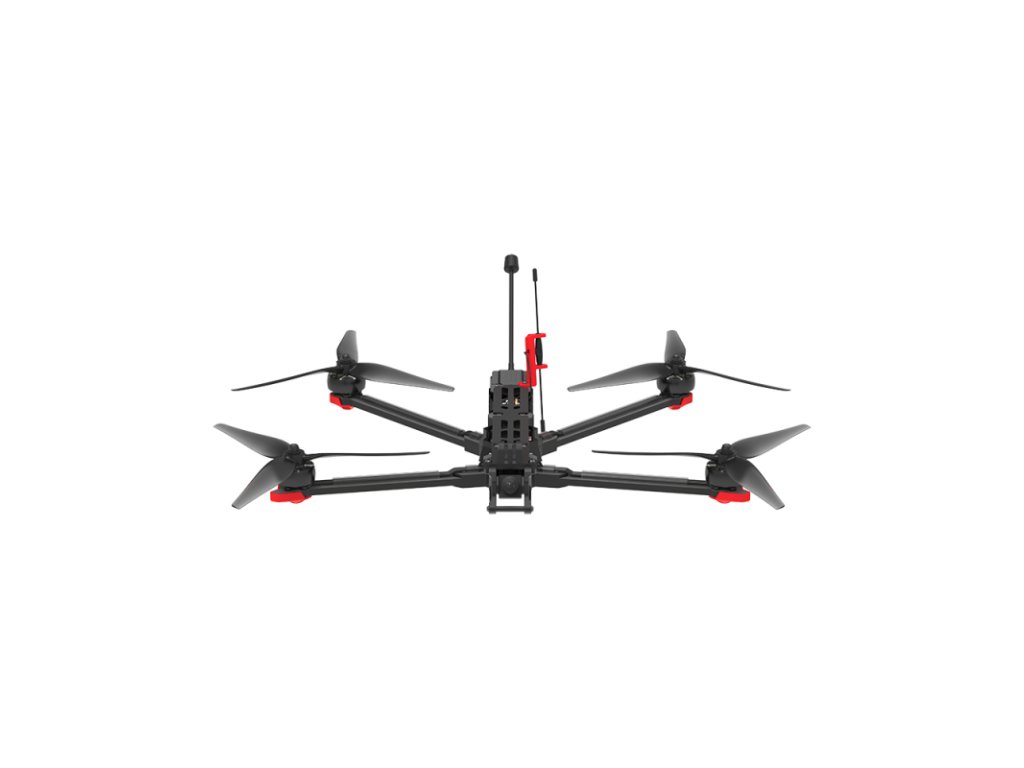

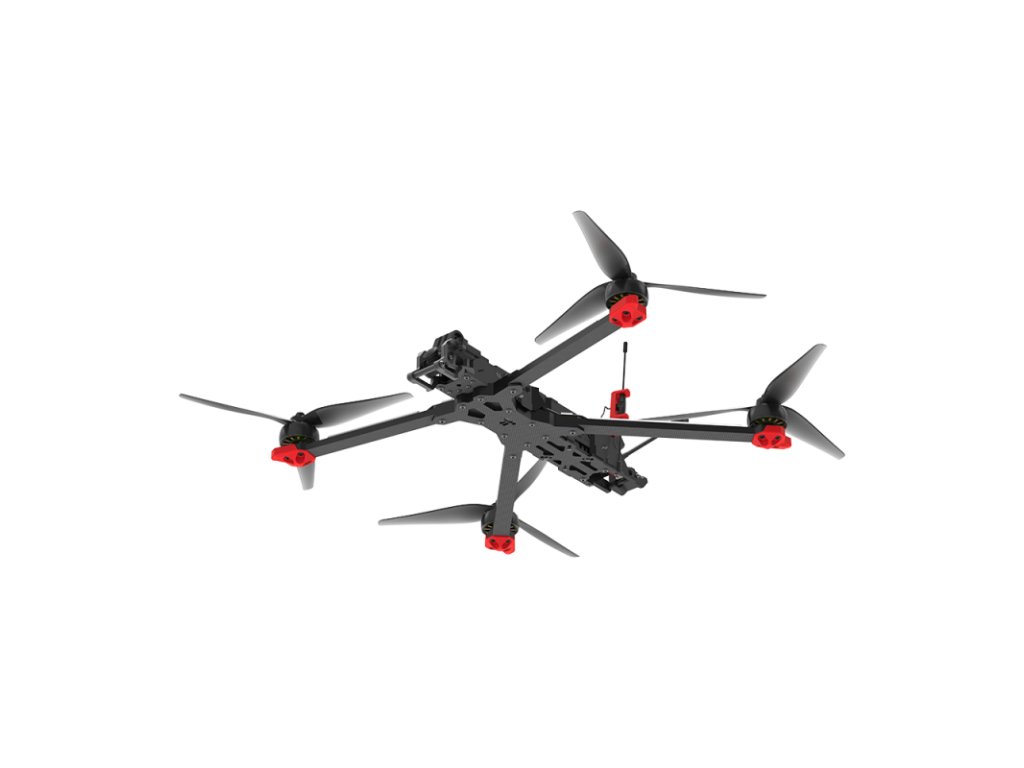

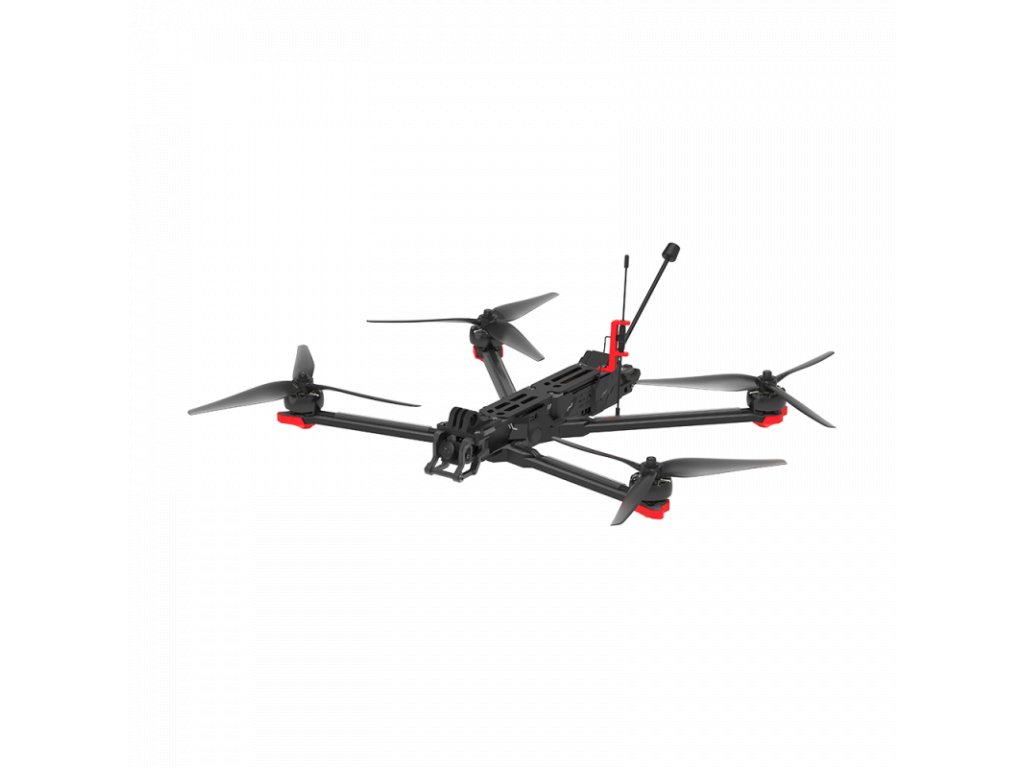

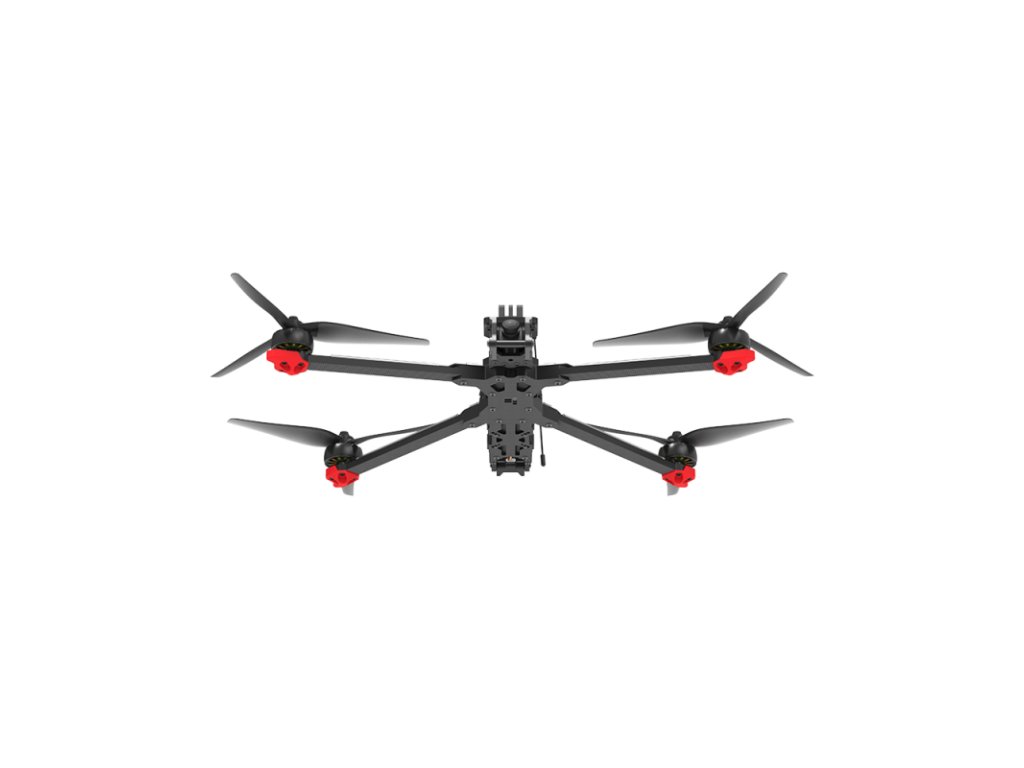

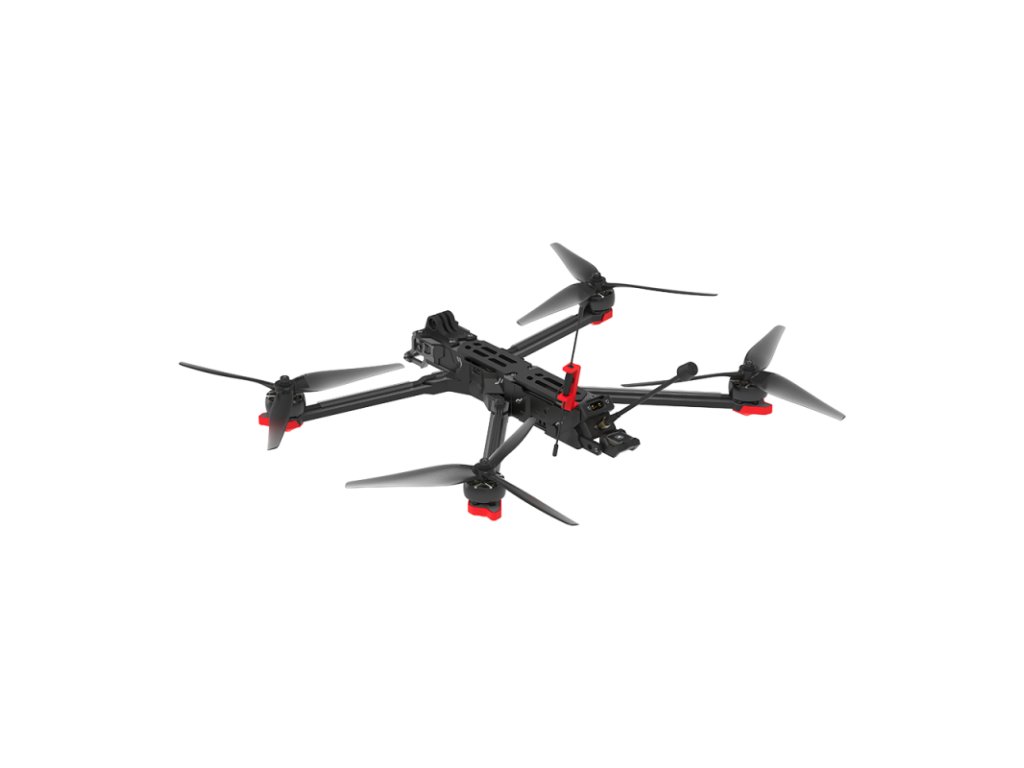

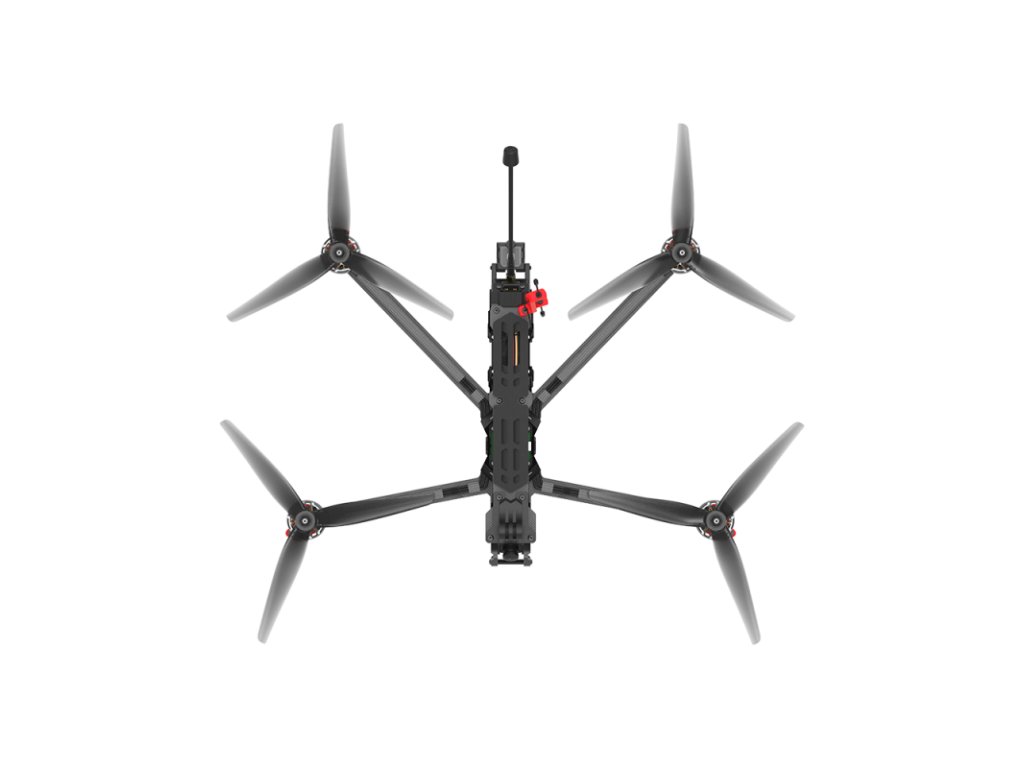

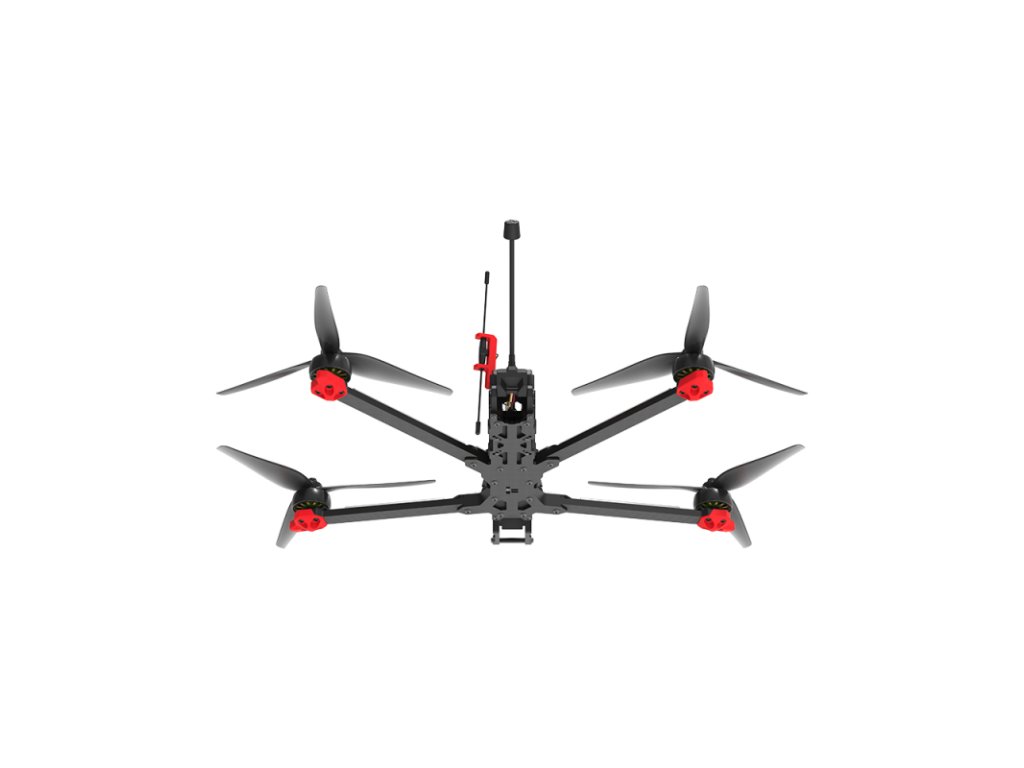

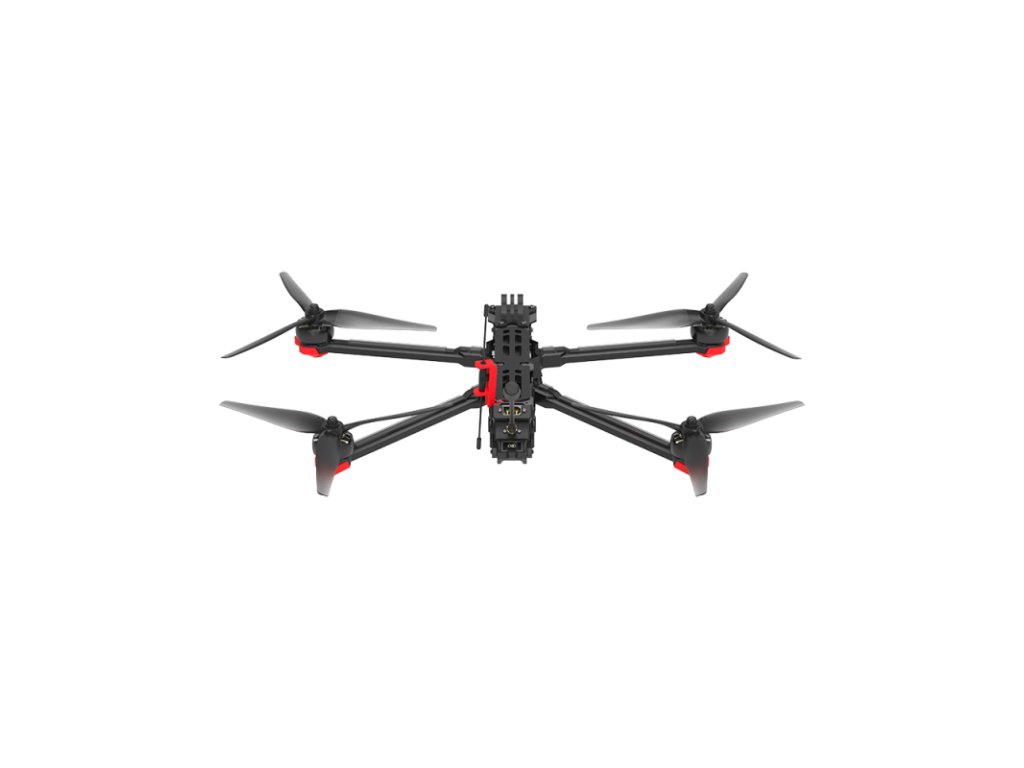

FPV Drone iFlight Chimera9 Analog BNF (TBS)

Product detailed description

Chimera9 Analog BNF (TBS)

Features:

- Smooth and Powerful XING2 Motors -
Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash-resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and the XING O-ring bushing gap protection.

- Latest Chimera9 Frame for Maximum Protection -
The new frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

- Secured Battery Plug with Anti-Spark Filter -
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. The Chimera9 has a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

- GPS Pre-Installed for More Safety at A Distance -
GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behavior; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specifications:

Product Name: Chimera9 6S Analog
Model: Chimera 9inch
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Camera: RaceCam R1 Mini 1000TVL 2.5mm
Geometry: DeadCat(DC)
Frame: 405mm wheelbase
Motor: XING2 2809 motors
Prop: 9X4X3 propellers
Weight: 776g (Without Battery)
Dimensions (L×W×H): 360x235x34mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 33 mins
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas
GNSS: GPS + Galileo
Payload: 1.5-2.2kg
Receiver option: TBS

Video Transmission:

Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V - 34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Package includes:
1 x Chimera9 6S Analog BNF
1 x Battery pad
1 x Antennas
1 x Propellers(Pairs)
2 x Battery strap
