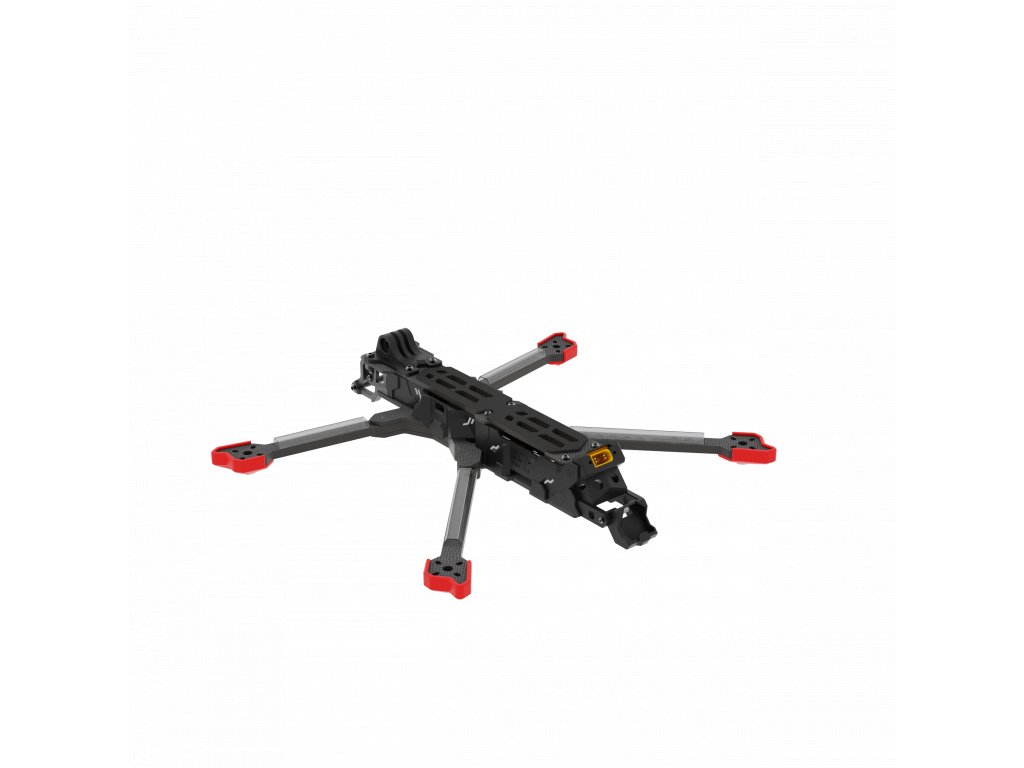

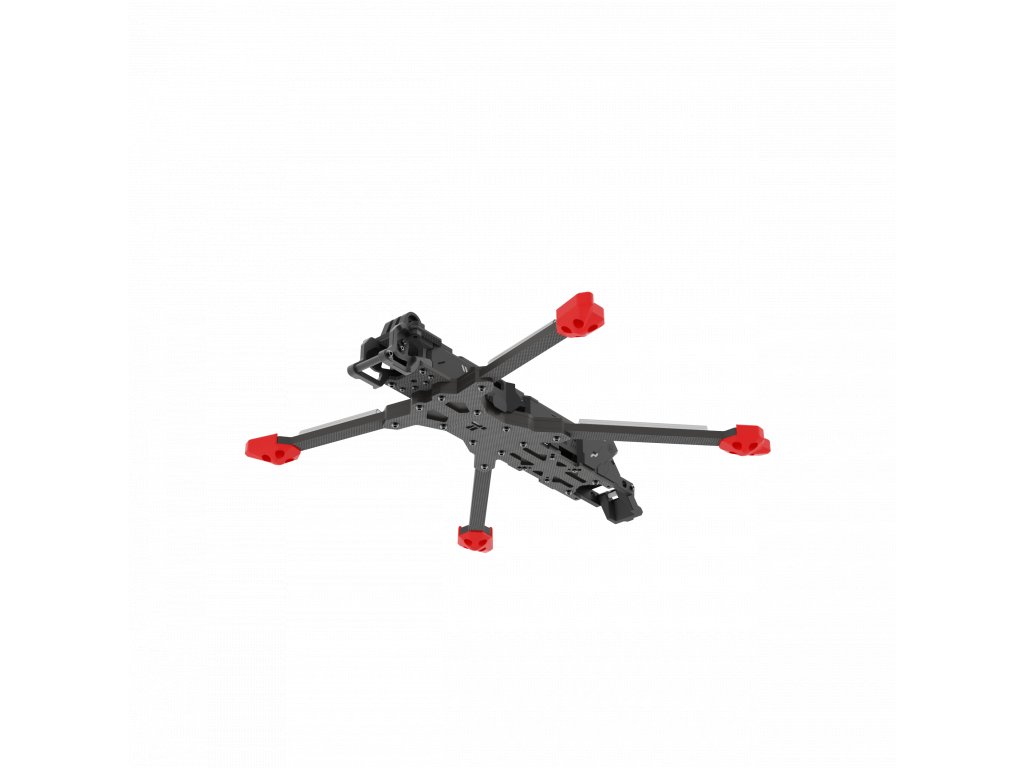

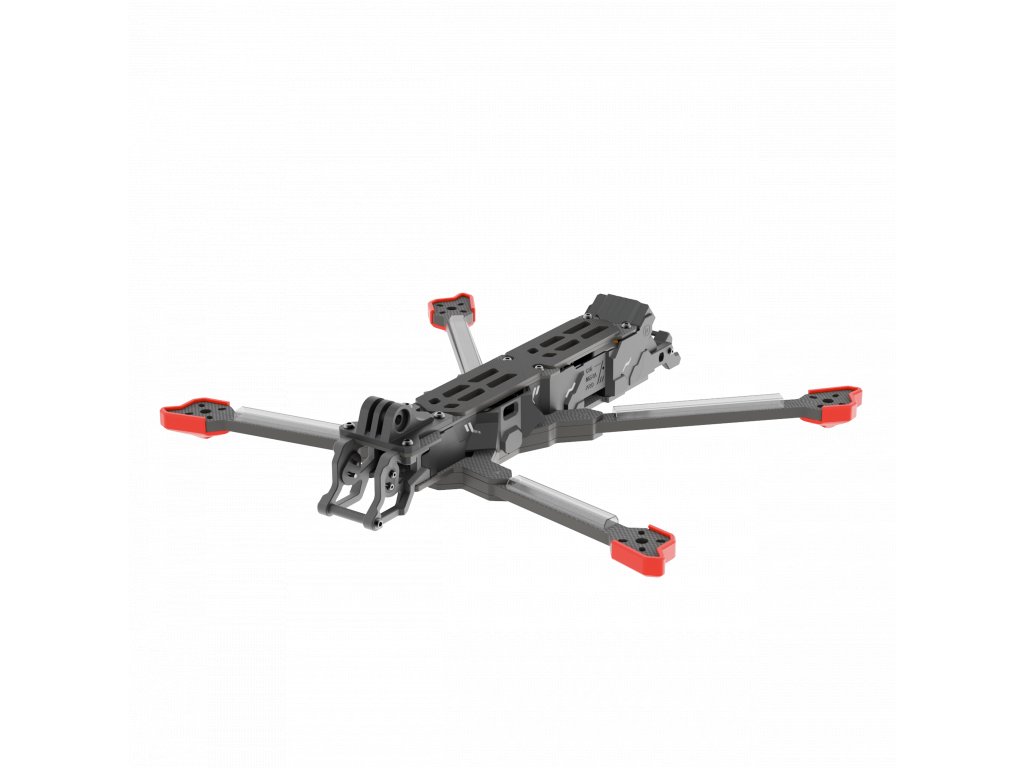

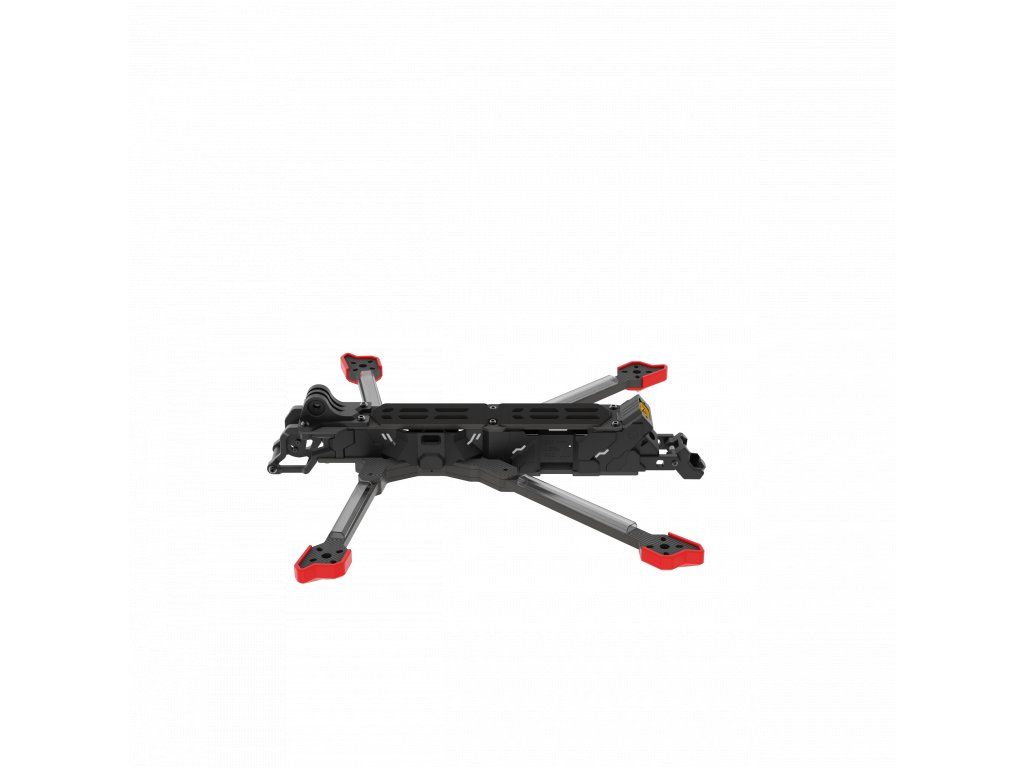

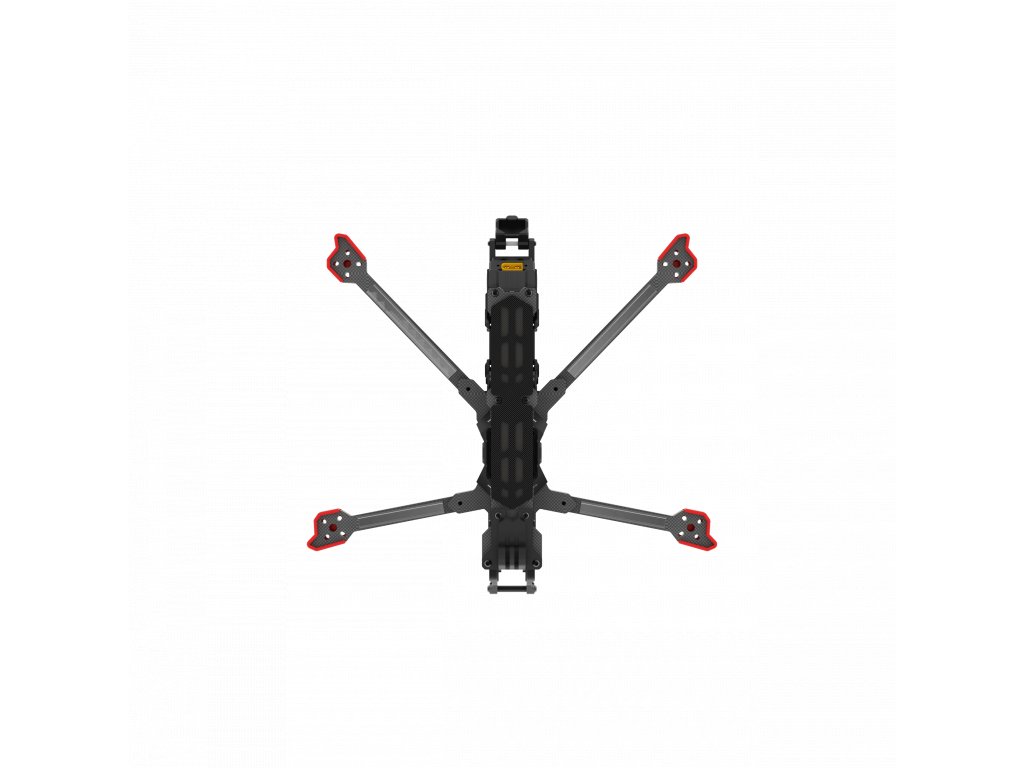

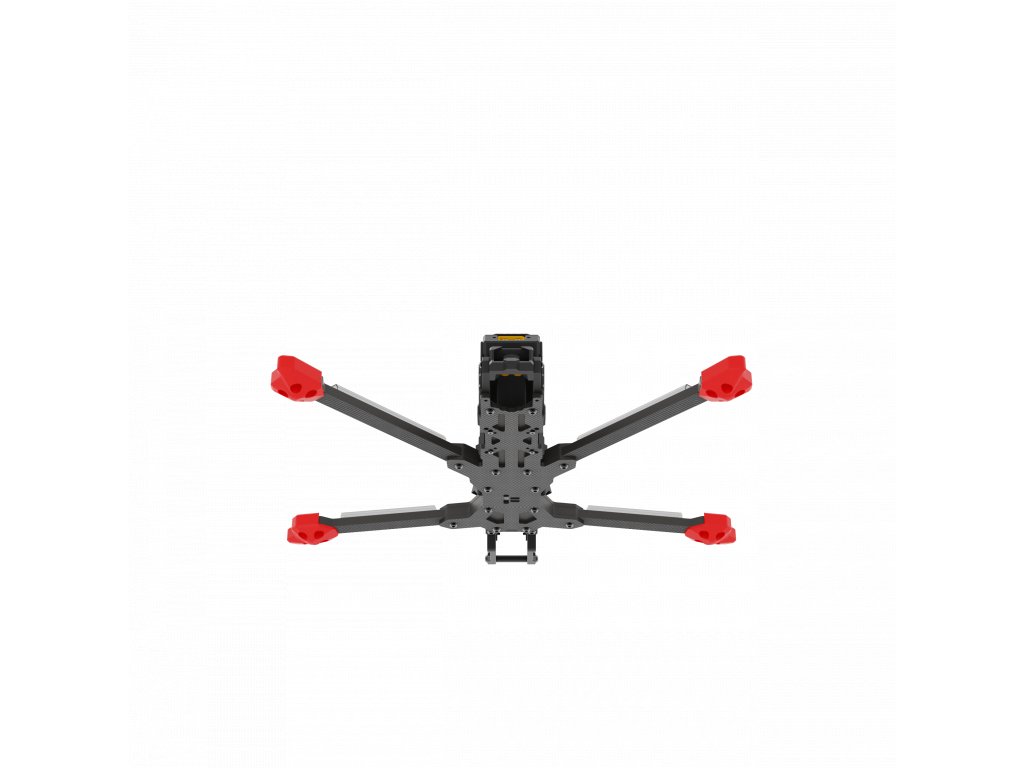

Chimera7 Pro V2 FPV LR Frame Kit

The iFlight Chimera7 is a 7.5" longrange frame designed to give maximum stability and flight time during your cinematic shoots.

Features:
- V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission
- Specially Designed Heatsink for DJI O3 Air Unit
- New Camera Mount for a wider camera FOV with TPU damping i- serts
- New Side Panels to perfectly fit the O3 Air Unit in the back
- New Dual 5.8G VTX Antenna TPU mount
- Latest Chimera7 Pro Frame Upgrades for Maximum Protection

Specifications:
Product Name: Chimera7 Pro V2 Frame Kit
Wheelbase: 327mm
Frame Dimension: L270*W199*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Max Flight Stack Height: 21mm
Max VTX Height: 30mm
Motor Mounting: 16x16mm / 19*19mm
VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 175grams (not including TPU parts)

Packing List:
1 x Chimera7 Pro V2 Frame Kit
1x O3 Air Unit Heatsink
1x O3 MIPI Digital Video Cable 215mm
2x O3 IPEX to RP-SMA Antenna Pigtails
1 x O3 Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Armguard
1 x Front Bumper TPU
1 x Rear Bumper TPU
2 x Anti-Slip Battery Pad
2 x Battery Strap (20*250mm)

Additional parameters

Category: FPV Frames
Camera Mounting: Micro (19mm)
Drone Type: Long Range
Material: Carbon fiber
Motor Size: 2809
Size: 7.5 inch
Wheelbase: 327mm
