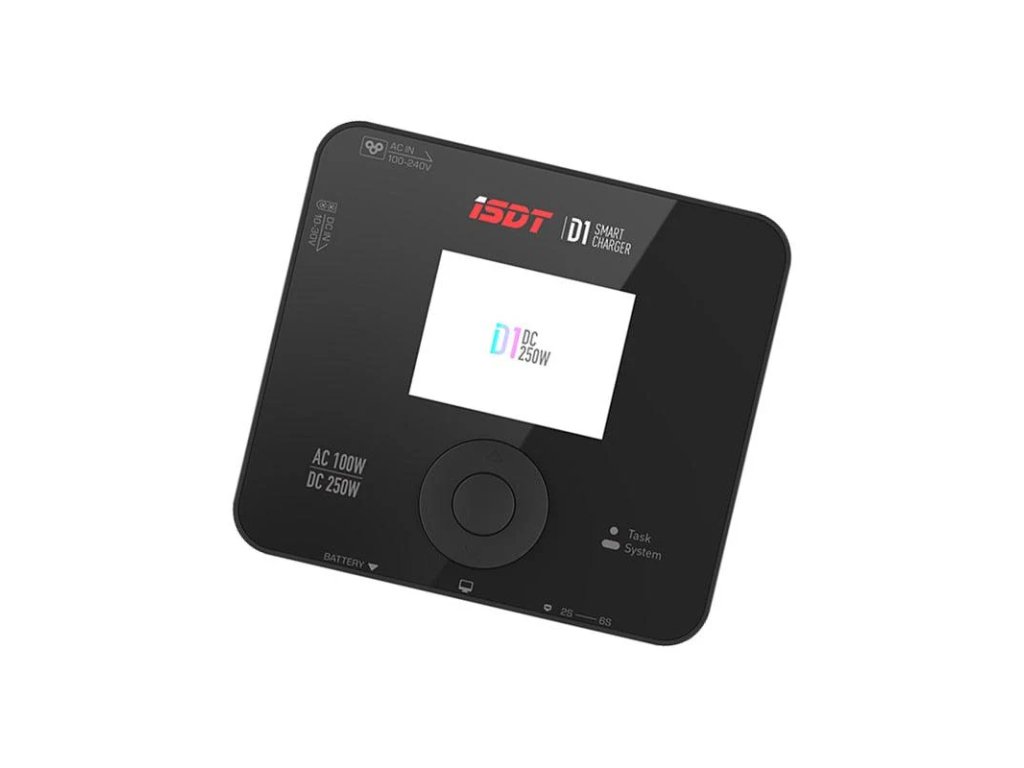

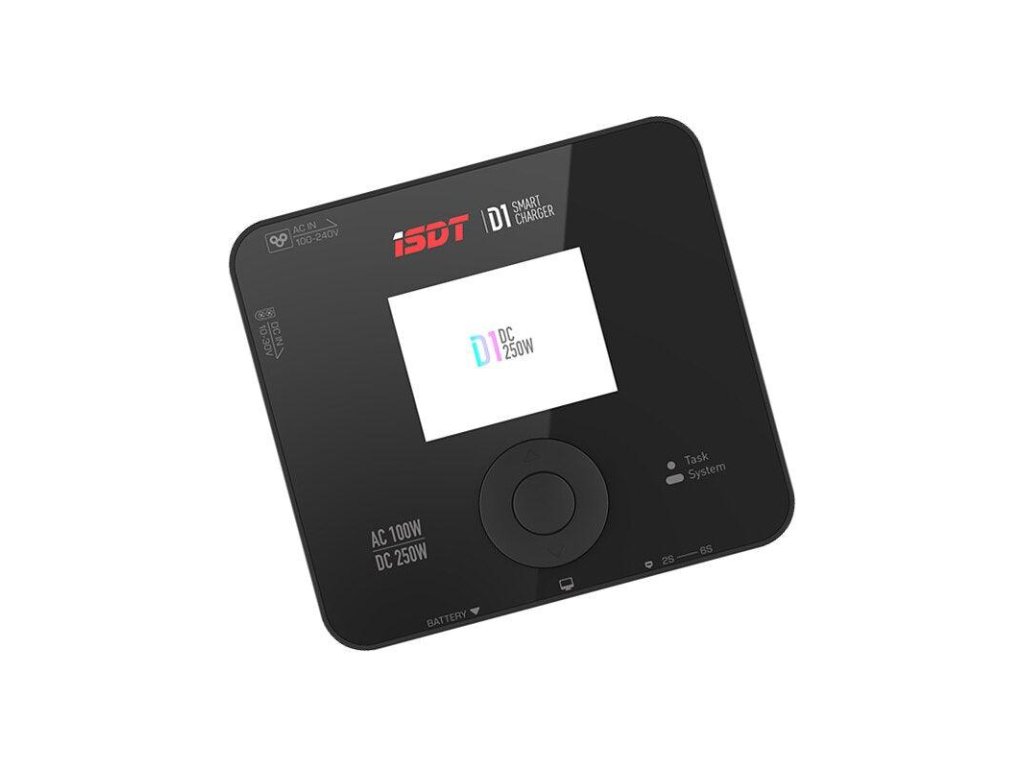

Charger ISDT D1 DC 250W AC 100W Smart

Technical Specifications:

  1. Input Voltage:

    • AC: 100~240V (for mains power)
    • DC: 10~30V (for external DC power sources)
  2. Output Voltage:

    • DC: 1~35V
  3. Max Input Current:

    • DC: 14A
  4. Charging Current:

    • 0.1~10A
  5. Discharging Current:

    • 0.1~1.0A
  6. Balance Current:

    • 1.5A per cell (maximum)
  7. Max Discharging Power:

    • 15W
  8. Max Charging Power:

    • AC: 100W
    • DC: 250W
  9. Safety Features:

    • Abnormal Voltage Alarm: Supports alerting users when input voltage is outside the expected range.
    • Incorrect Cell Count Alarm: Alerts the user if the battery cell count is incorrectly set.
  10. Battery Compatibility:

    • LiFe, LiIon, LiPo: 1~6S
    • LiHv: 1~6S
    • Pb (Lead Acid): 1~12S
    • NiMH/NiCd: 1~16S
  11. Operating Conditions:

    • Working Temperature: 0~40°C
    • Storage Temperature: -20~60°C
  12. Dimensions:

    • Size: 126 x 115 x 49 mm
    • Weight: Approximately 460g

Applications:

The charger is ideal for a variety of applications such as:

  • RC models (drones, cars, planes)
  • Portable devices
  • Power banks
