Charger ISDT B80 3000W Smart For 22S/16S Lithium Battery Pack

Code: 5518
Not rated
Brand: ISDT
€780,45 €645 excl. VAT
In stock (2 pcs)
Delivery to:
15/11/2024
Delivery offer

Detailed information

Product detailed description

The B80 charger appears to be a high-performance, versatile charging solution designed for large battery applications. Here’s a summary of its key features:

Key Features:

  1. Strong Power Capability:

    • Delivers a maximum of 3000W output power with up to 80V voltage and 40A current, providing robust charging for large battery packs.
  2. Extensive Battery Support:

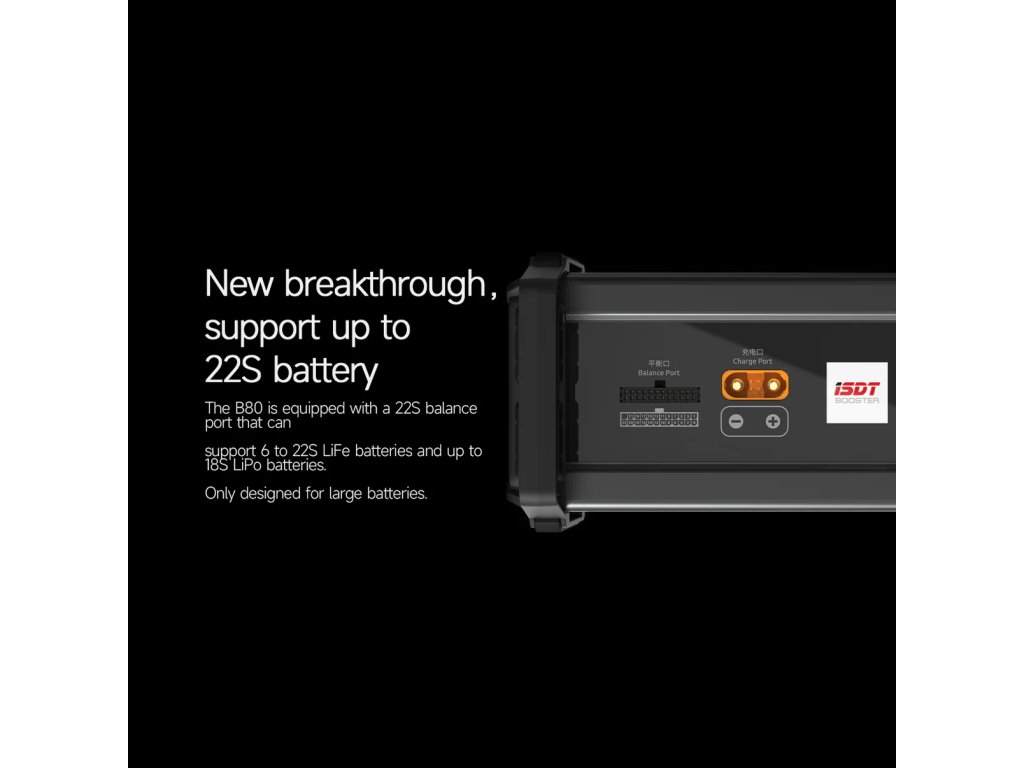

    • Equipped with a 22S balance port, it supports LiFe batteries (8-22S) and LiPo batteries (6-18S), making it ideal for handling high-voltage, high-capacity battery systems.
  3. Wireless Connectivity:

    • Features wireless connection to an app, allowing users to set charging parameters and perform OTA (over-the-air) firmware updates via a smartphone, enhancing convenience and usability.
  4. Durable and Heat-Resistant Design:

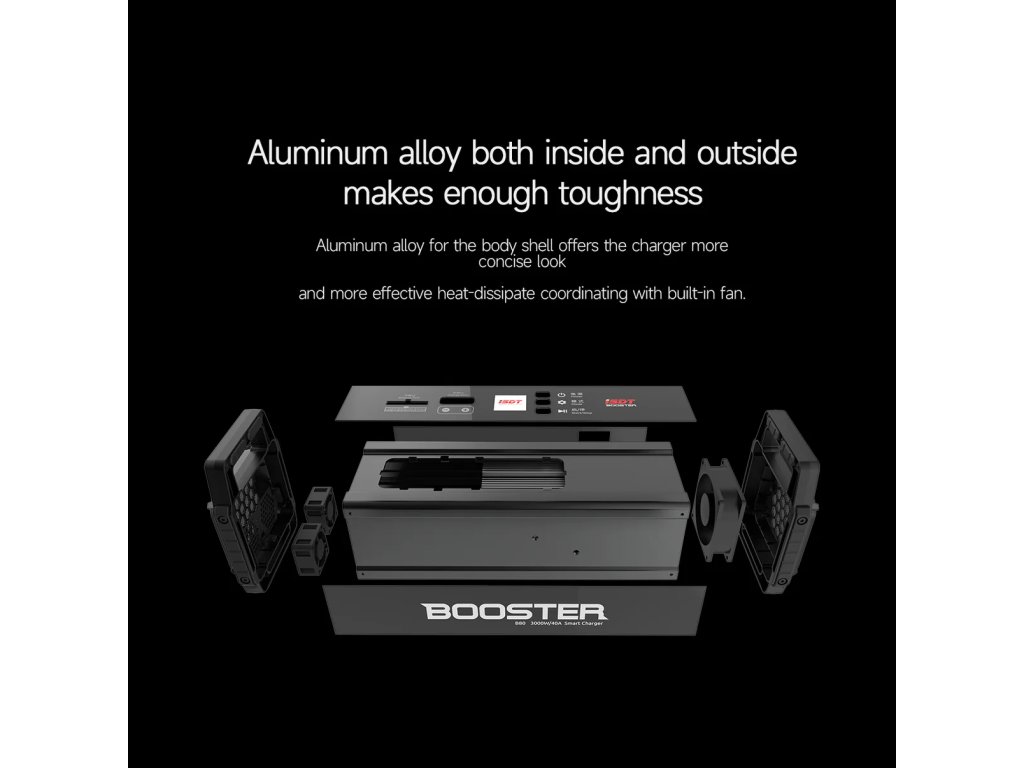

    • Made with aluminum alloy for both the inner components and outer shell, ensuring durability and effective heat dissipation. It is complemented by a built-in fan for cooling during high-power operations.

Technical Specifications:

  • Input Voltage: AC 100-240V
  • Output Voltage: DC 20-80V
  • Max Input Current: 16A (AC)
  • Max Charging Power:
    • 3000W at 220V AC
    • 1500W at 110V AC
    • 1400W at 100V AC
  • Max Discharge Power: 200W
  • Supported Batteries:
    • LiFe: 8-22S
    • LiPo: 6-18S
    • LiHv: 6-18S
    • ULiHv: 6-18S
  • Charging Current: 1.0-40.0A
  • Discharging Current: 0.5-5.0A
  • Balance Current: 2A per cell
  • Alarms: Includes abnormal voltage and incorrect cell count alarms.
  • Working Temperature: 0-40°C
  • Storage Temperature: -20-60°C
  • Dimensions: 356 × 136.8 × 164.1 mm
  • Weight: Approx. 3973g

Package:

  • Included: 1 x B80 Charger
