Charger ISDT 608PD Compact 240W Smart With USB-C

Product detailed description

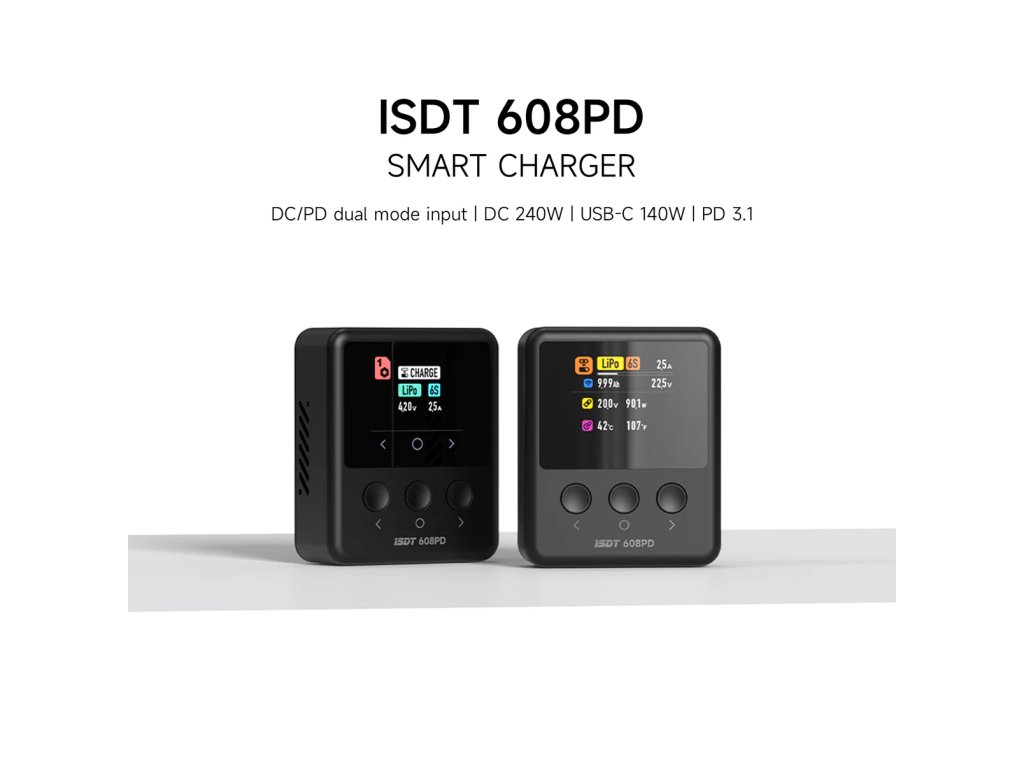

Charger ISDT 608PD SMART (240W)

Next-Gen Pocket Charger: Features & Specifications

High Power Output

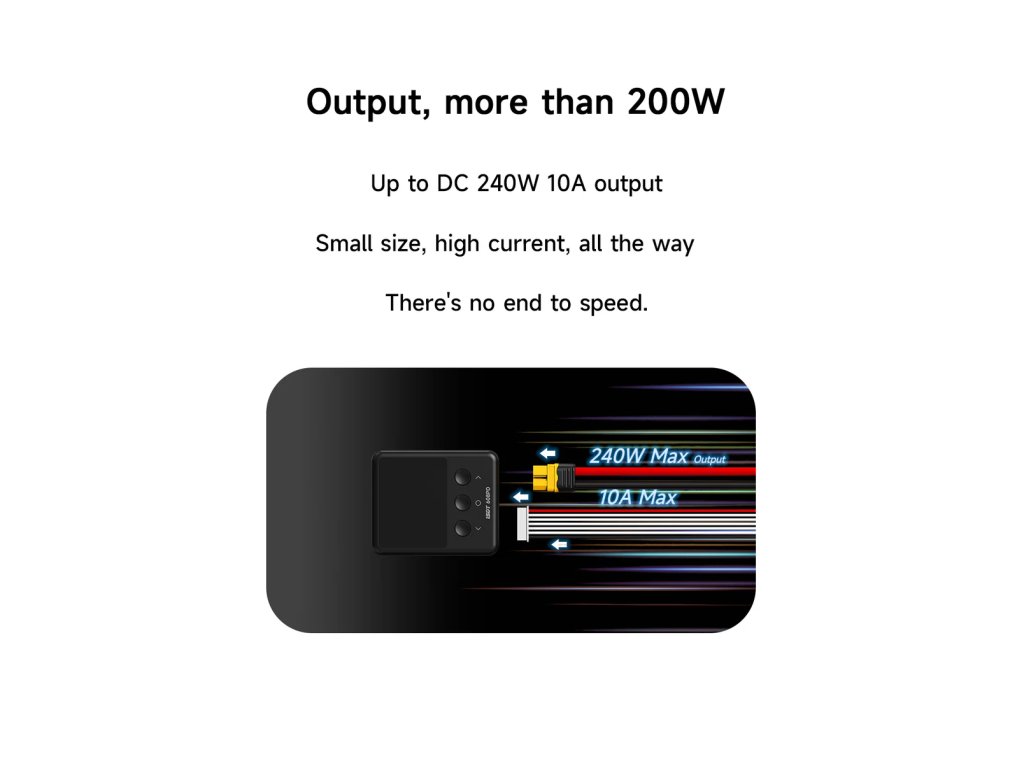

• DC 240W Max Power: 10A output to meet demanding charging needs.

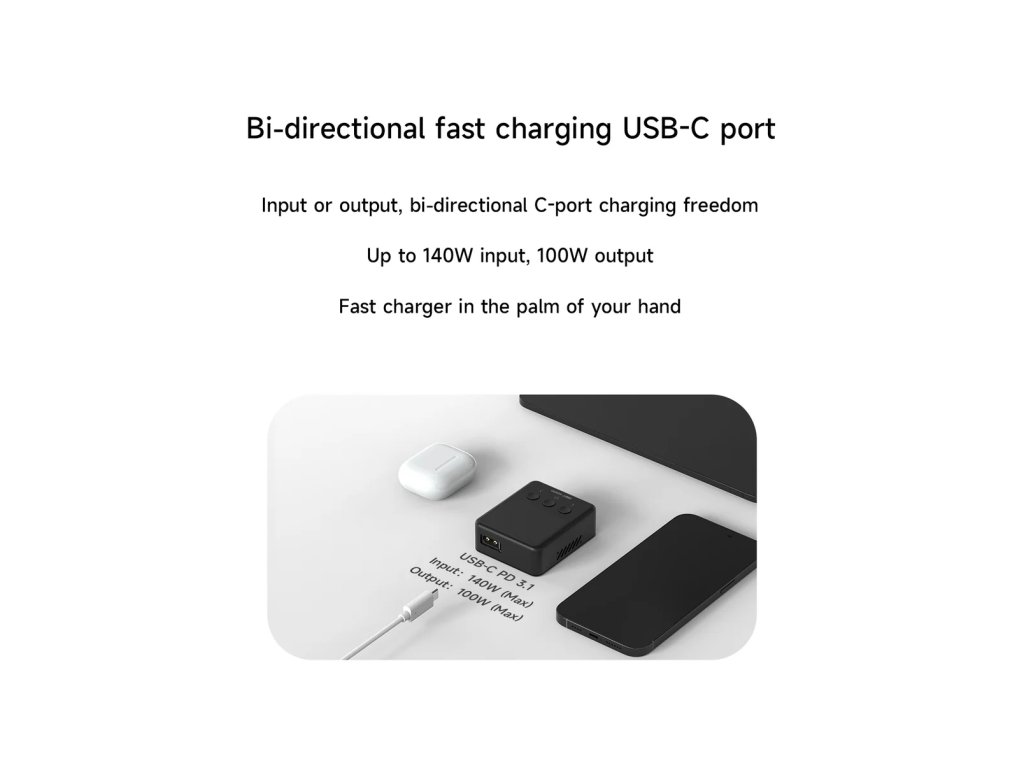

• USB-C Power Delivery: 140W/5A output, ideal for high-capacity LiPo battery charging.

Intelligent Battery Management

• Smart App Integration: Connect via app for real-time battery status and parameter monitoring.
• One-Click Access: Easily view charging data and battery health.

Display & Interface

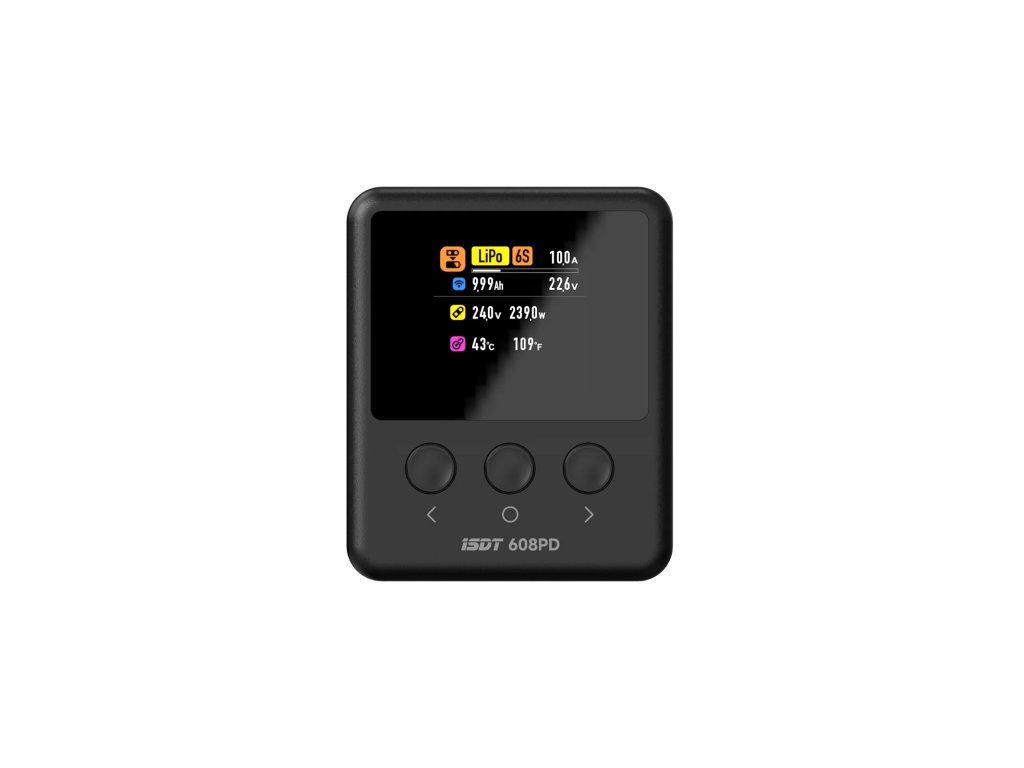

• IPS Screen: 1.5-inch screen with low power consumption.
• Automatic Brightness Adjustment: Clear visibility in bright sunlight with a wide viewing angle (178°).

Advanced Cooling System

• Efficient Cooling Design: Features a cross-flow air duct and high-quality fan for optimal heat dissipation.
• High-Tech Materials: Engineered aluminum alloy fins and silicone heat pads enhance thermal performance.

Versatile Charging Capabilities

• Universal Compatibility: Supports various battery types including:
  • LiFe, LiPo, LiHv (4.35V-4.50V), 1-6S
  • Pb (1-12S), NiMH (1-16S)

Key Parameters

• Input Current: DC 10A, USB-C 5A
• Input Voltage Range: DC 5-30V, USB-C 5-28V
• Output Voltage Range: DC 3.0V to 30V
• Charging Current: 0.5A to 10.0A
• Max Charging Power: 240W (DC), 140W (USB-C)
• Max Discharge Power: 100W (USB-C)
• Balance Current: Up to 0.8A per cell
• Operating Temp: 0°C to 40°C; Storage Temp: -20°C to 60°C
• Alarms: Abnormal voltage and setting errors
• Dimensions: 72.5 x 60 x 26.6 mm
• Weight: 85g (±10%)
