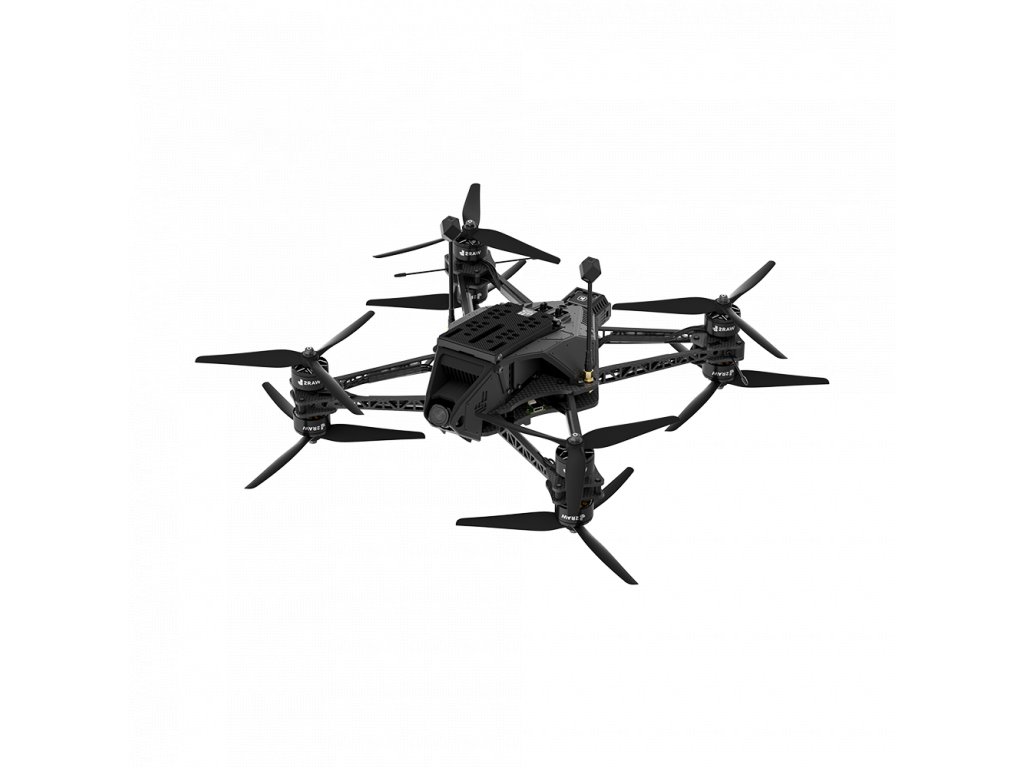

FPV Drone iFlight Centurion 8 HD O3 Air Unit 6S BNF (ELRS 868/915MHz True Diversity)

Product detailed description

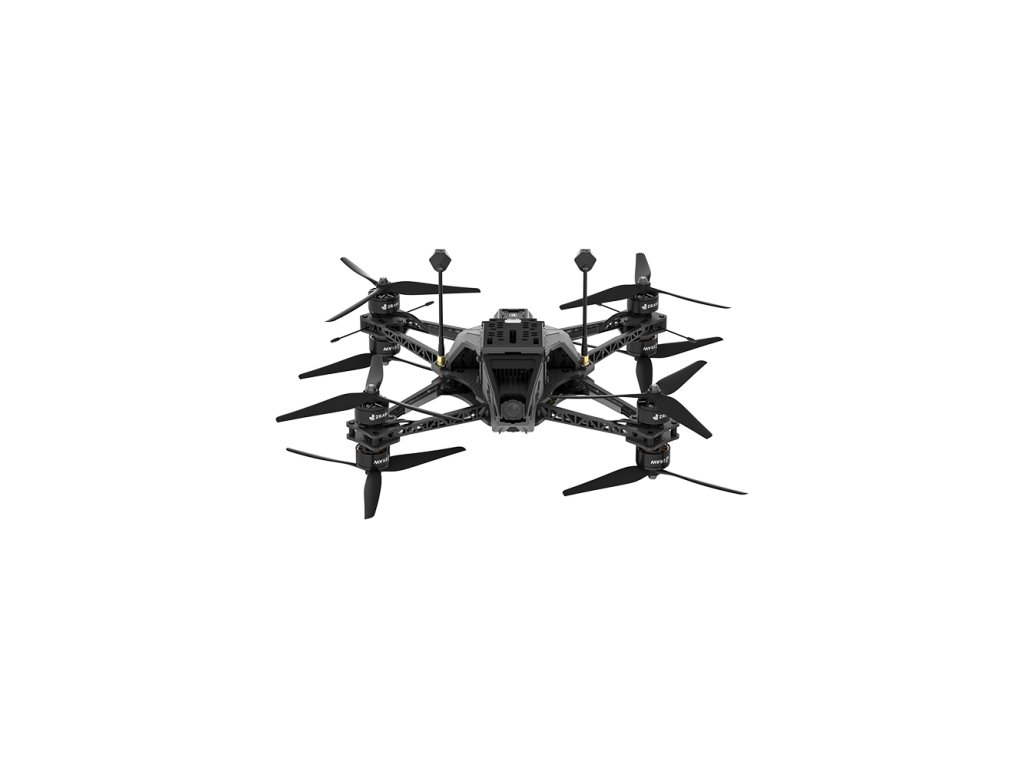

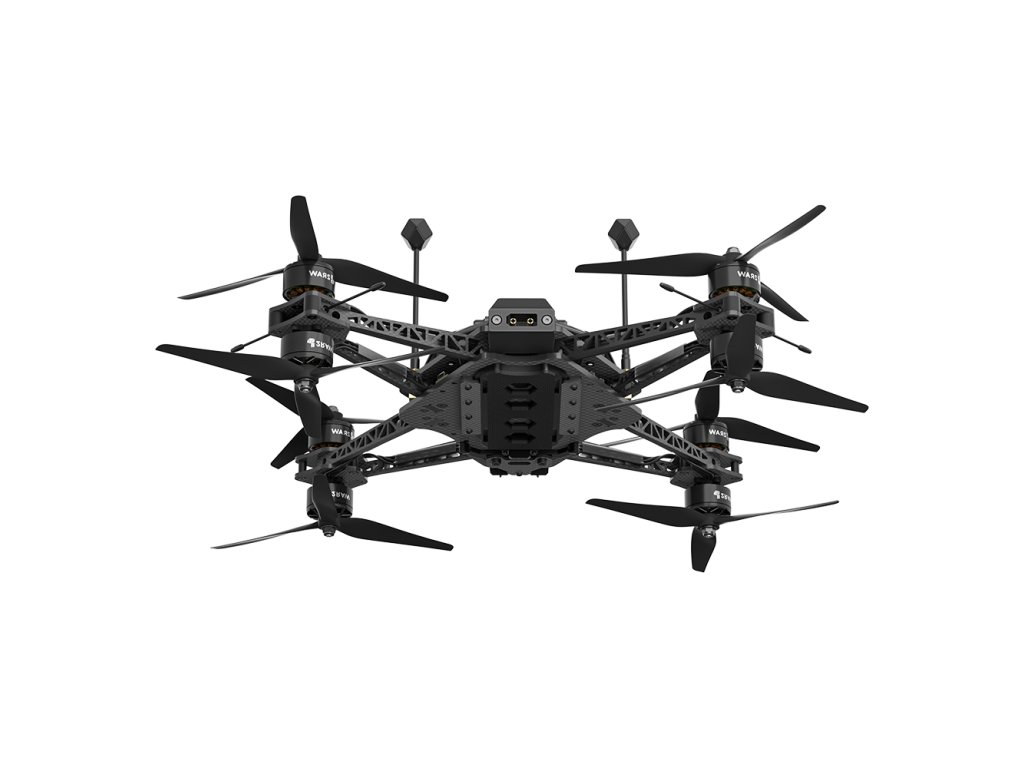

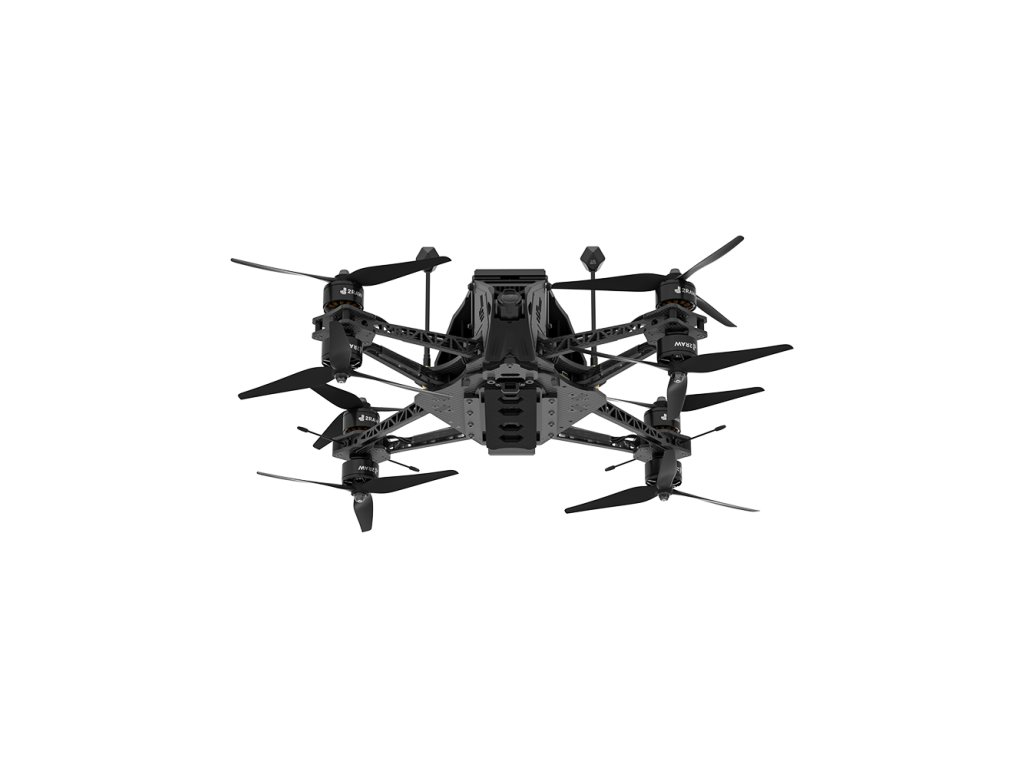

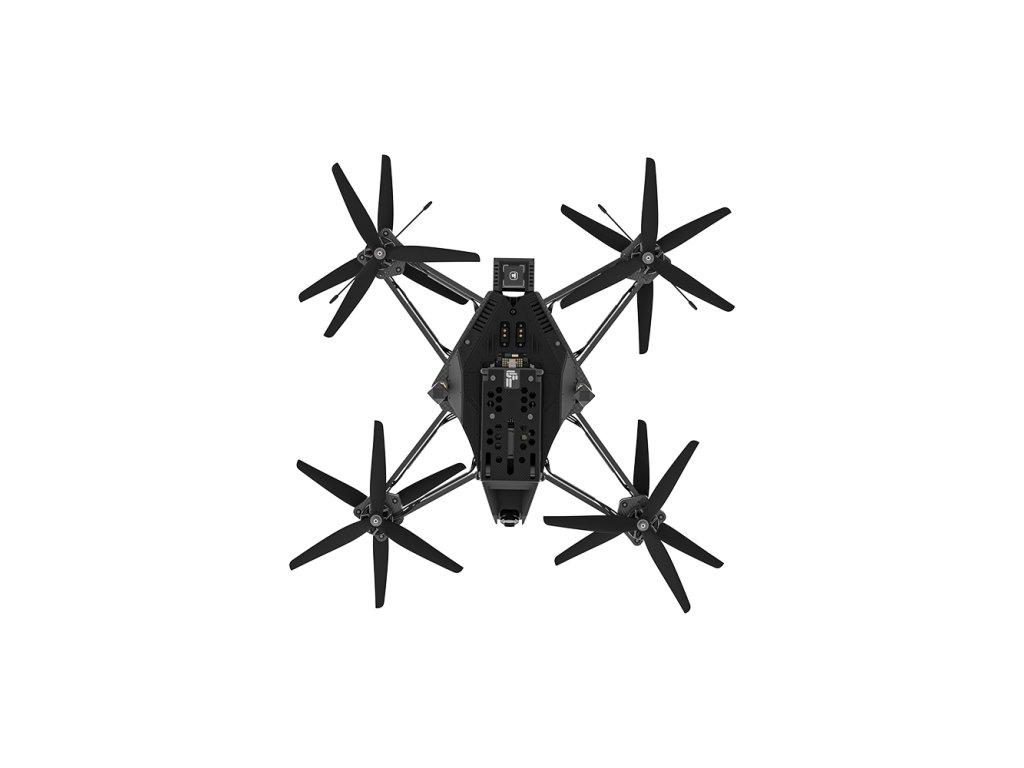

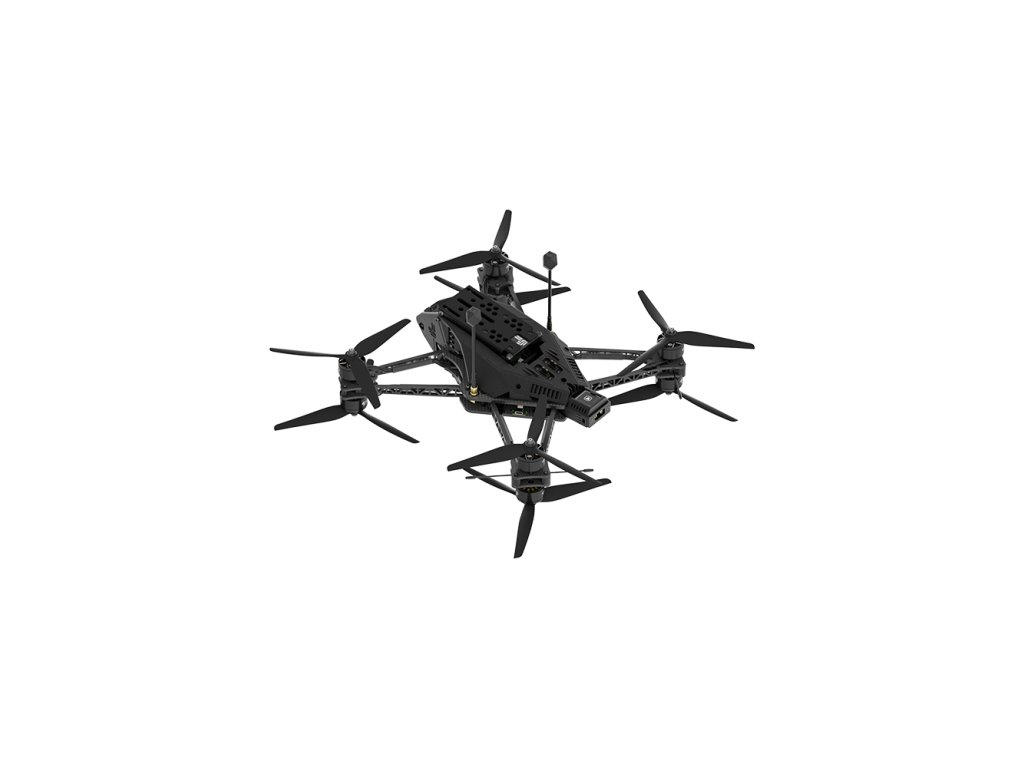

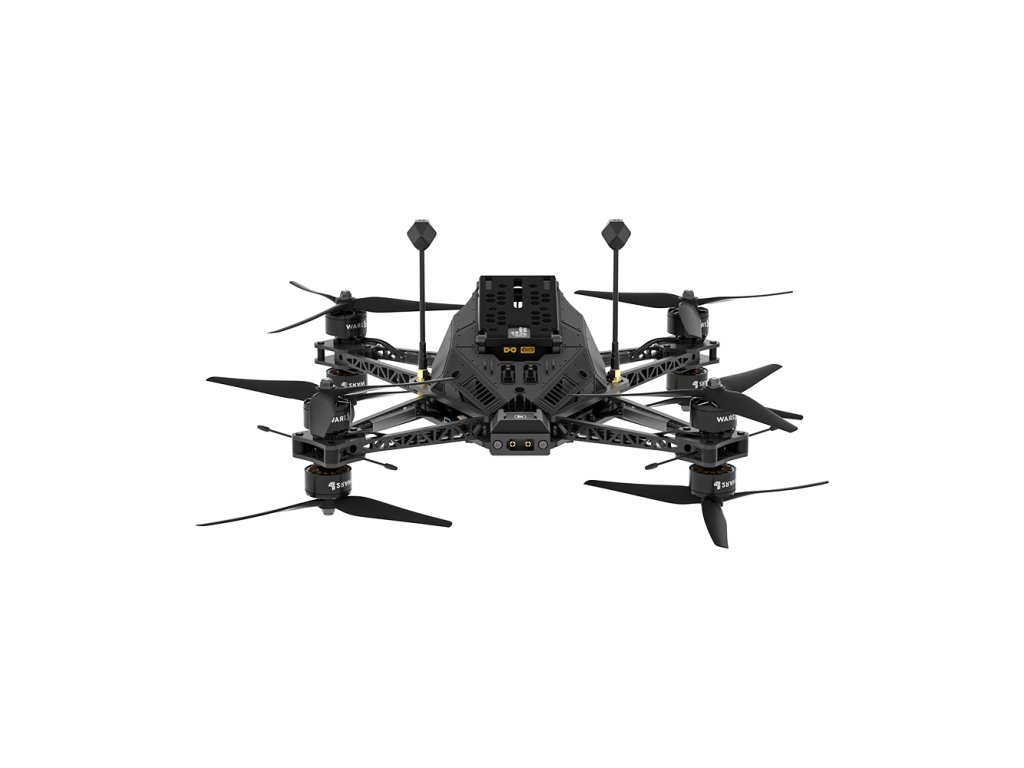

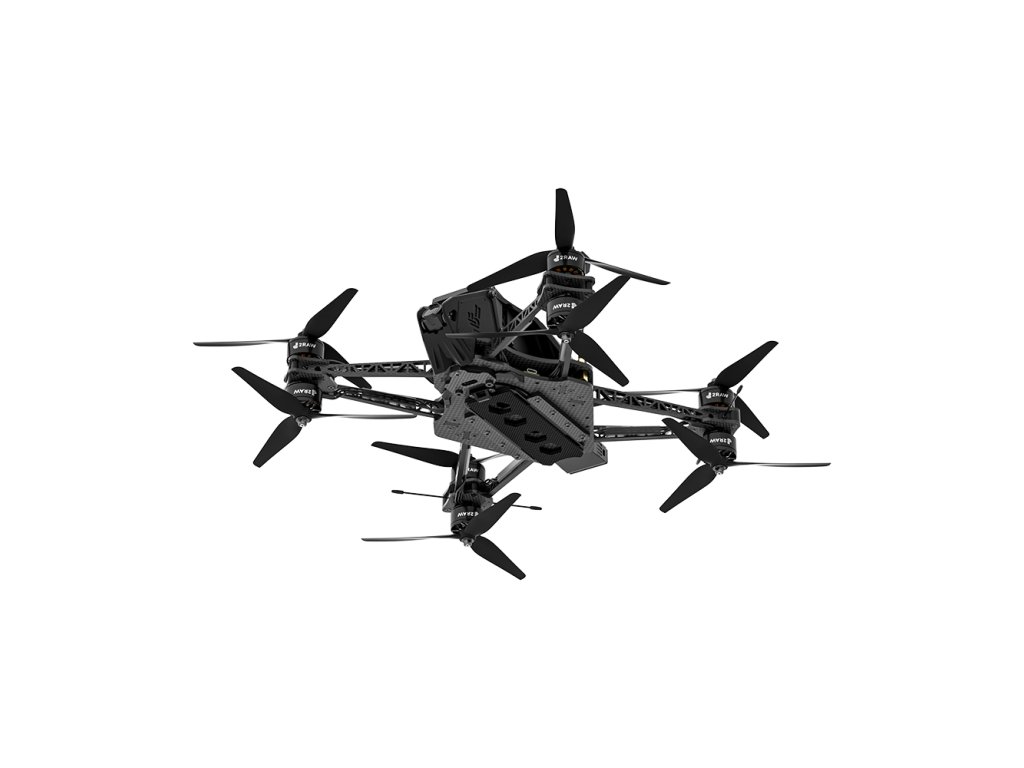

Centurion 8 HD O3 Air Unit 6S BNF (ELRS 868/915MHz True Diversity)

Centurion, developed by 2RAW in collaboration with iFlight, represents a pioneering step in cinelifter technology. It boasts custom-designed electronics, encompassing motors and a distinctive Thunder 8-in-1 ESC renowned for its exceptional filtering capabilities. Coupled with the formidable processing power of the 2RAW Thunder H7 Flight Controller, this amalgamation delivers unparalleled performance for a 6S craft. Additionally, Centurion is furnished with cutting-edge GPS chips featuring an enlarged antenna, facilitating rapid and precise satellite acquisition.

Features:

- Advanced Truss Arms -
The integration of an A-frame design with trusses ensures exceptional stiffness while effectively managing weight, resulting in outstanding performance.

- Innovative Camera Mount -

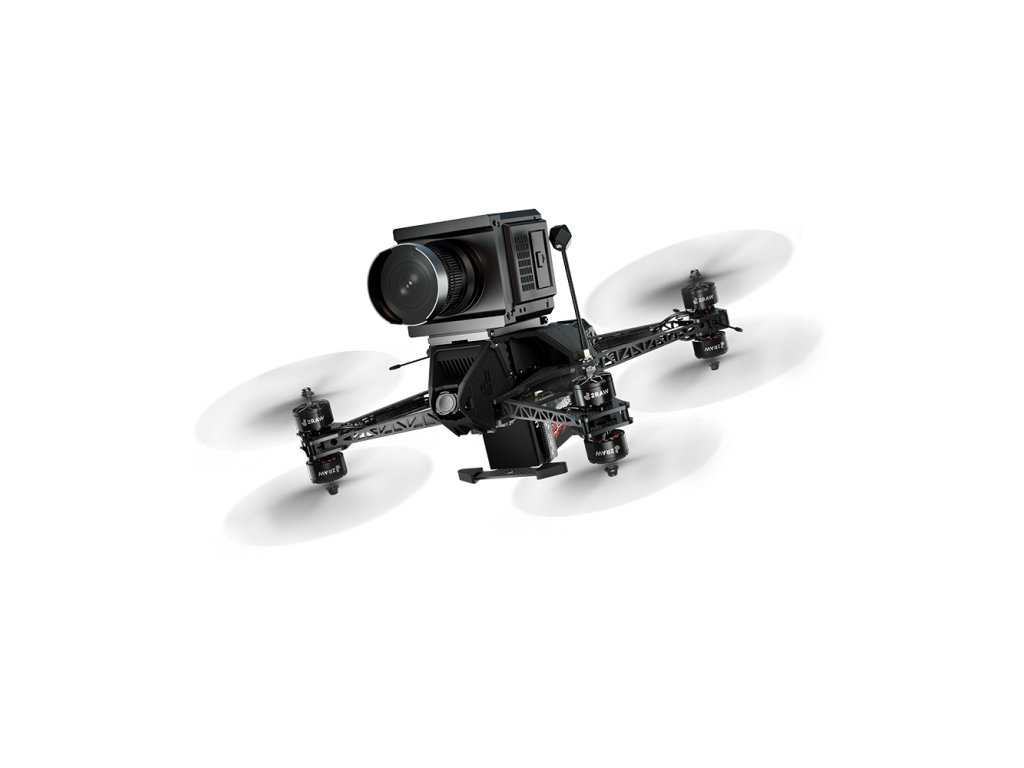

Centurion's camera mount stands apart from others on the market with its adjustable angles ranging from 10 to 50 degrees. Fashioned from 7075 aero-grade aluminum, the mount is elevated to eliminate the propellers from the cinema camera's view. Critically, it is supported along both the horizontal and vertical axes to mitigate payload resonances. As the camera angle increases for heightened speeds, the mount provides increasing support.

- AeroShell -
The AeroShell not only imparts a distinctive appearance to Centurion but has also been meticulously engineered with the assistance of PHD students to regulate airflow around the body and within the drone. Air ingress occurs through the intakes to cool the ESC, while egress is facilitated through rear exhausts. As the drone's velocity escalates, the AeroShell acts as an air divider, deflecting airflow away from the flat top plate. Moreover, the shell serves as a barrier against dirt infiltration into the electronics.

- Thermal Cooling -
The shell's design facilitates direct airflow across the electronics, ensuring consistent cooling. Additionally, the O3 Air Unit features an aluminum heatsink and fan assembly installed atop it to prevent overheating, even in the most extreme desert conditions, instilling confidence in operation.

- Quick Release Battery System -
Featuring a seamlessly integrated quick-release battery system, the Centurion optimizes efficiency in demanding filming environments. Unlike competing models, it employs battery straps and carbon plates, eliminating the need for individual battery tie-downs. This swift battery swap capability enables users to return to flight in mere seconds, enhancing productivity.

Specifications:

Product Name: Centurion 8 O3 6S HD
FC: Thunder H7 Flight Controller
ESC: Thunder 80A 8-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 384mm wheelbase
Motor: XING2 2812 1150KV motors
Prop: GEMFAN 8046 propellers
Weight: 1837g (Without Battery)
Dimensions (L×W×H): 272×272×96mm
Max Speed: 160km/h
Maximum Takeoff Altitude: 7000m
Max Hover Time: Approx. 6mins with 6S Lipo 5600mAh battery
Max Cruising Time: Approx. 5mins with 6S Lipo 5600mAh battery
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver option: iFlight ELRS 868/915MHz True Diversity RX

Video Transmission:

Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
-810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
-810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
-1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
-1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Package includes:
1 x Centurion 8 O3 6S HD BNF
4 x GEMFAN 8046 CW propeller
4 x GEMFAN 8046 CCW propeller
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 Male to XT60 Female Adapter Wire
4 x iFlight Lipo Strap 20*300mm
2 x iFlight Lipo Strap 15*250mm (Black)
1 x XT90 Smart Smoke Stopper
