Product detailed description

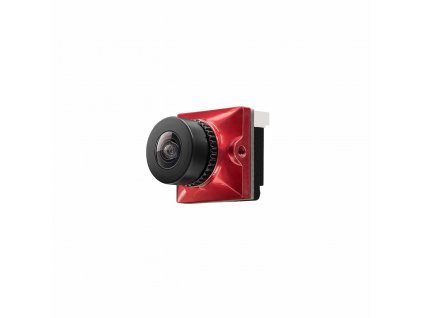

Caddx H1
Analog camera with a 1/3" CMOS sensor and a resolution of 1200TVL. The camera has a 2.1mm lens.
Specifications:
Model: Caddx H1
Image Sensor: 1/3" CMOS-sensor
Horizontal Resolution: 1200TVL
IMAGE: 16:9 & 4:3 (changeable)
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 2.1mm
FOV: 160°
Min. Illumination: 0.00001 lux@F1.2
WDR: Auto
Dimensions: 19x19 mm
Wide Power Input: DC 4.5-25 V
Weight: 7.4 g/pre>
