FPV Camera CaddxFPV Caddx Ant lite (16:9)

Code: MN06-20B69
Not rated
Brand: CaddxFPV
€17,02 €14,07 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

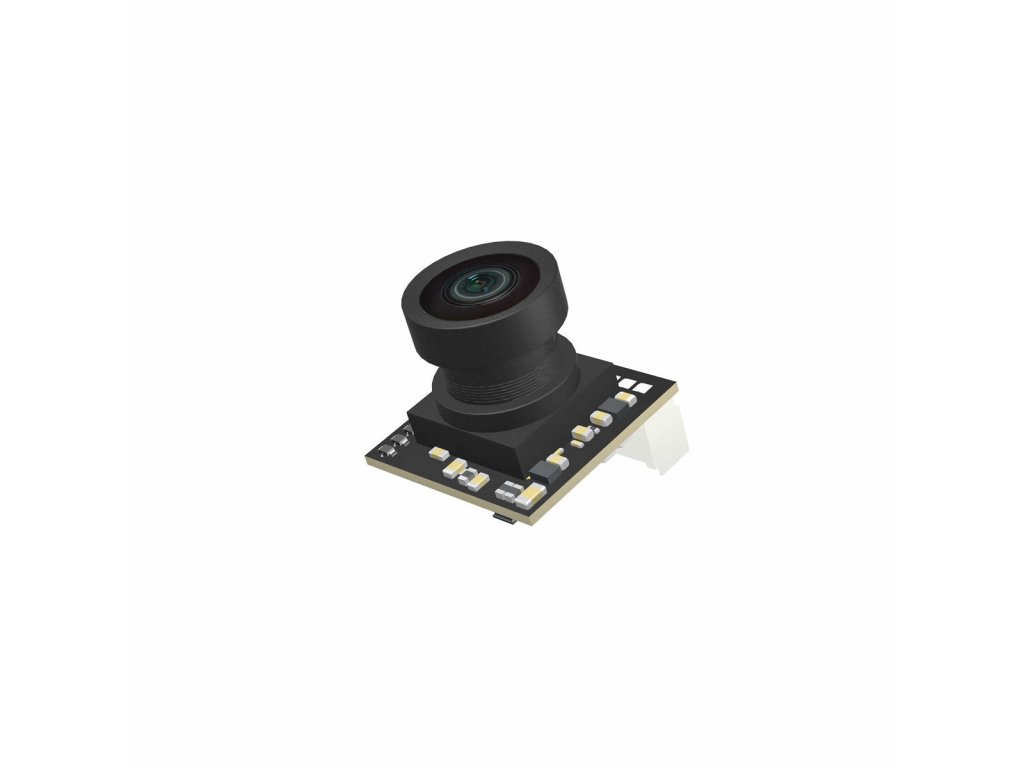

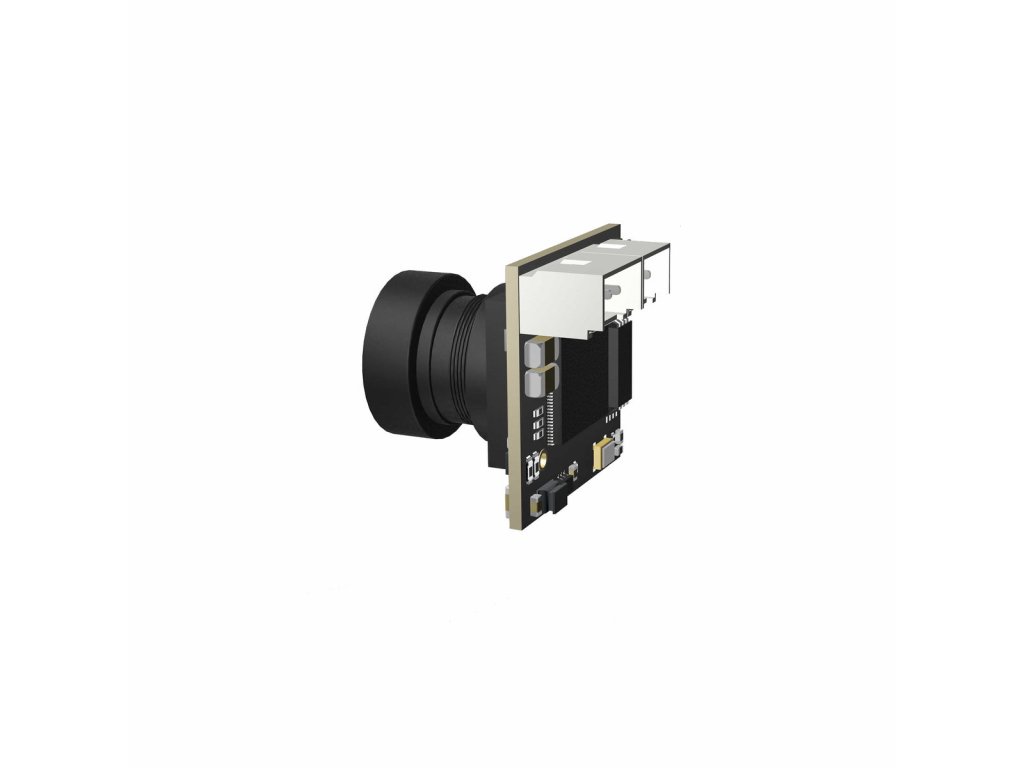

Caddx Ant lite (16:9)

The CADDXFPV Ant Lite Analog Camera is a micro camera that comes with a 1.8mm lens. Similar to the Caddx Ant camera, the Lite version uses the same electronics and sensors. The only difference is the camera lens and lens mounting apparatus. The lens selected for the Lite version was chosen among a dozen options and is slightly sharper than the standard Ant lens.

The Ant Lite (FPVCycle Edition) features a camera ratio of 4:3 or 16:9, NTSC and PAL (switchable), a 1/3" CMOS sensor, and global WDR, among other specs that make this camera great for small builds!

Specifications

Model: Caddx Ant lite
Image ratio: 16:9
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC and PAL(switchable)
Menu: Support
Synchronization: Internal
Electronic Shutter: PAL: 1/50-100,000; NTSC: 1/60-100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm/F2.5
Min. illumination: 0.001Lux
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14x14mm
Wide Power Input: DC 3.7-18V
Work Temperature: -20°C +60°C
Work Humidity: 20%-80%
Weight: 1.7 g (N.W.)

Package Includes:
1 x CADDXFPV Ant Lite Analog Camera (FPV Cycle Edition)

Additional parameters

Category: Analog system
Field of View (FOV): 165°
Resolution: 1200TVL
Size: Nano (14mm)
Video System: Analog
