AIO FC iFlight BLITZ Whoop F7 V1.1

Code: B014032
Not rated
Brand: iFlight
€129,09 €106,69 excl. VAT
In stock (>20 pcs)
Delivery to:
26/11/2024
Delivery offer

Detailed information

Product detailed description

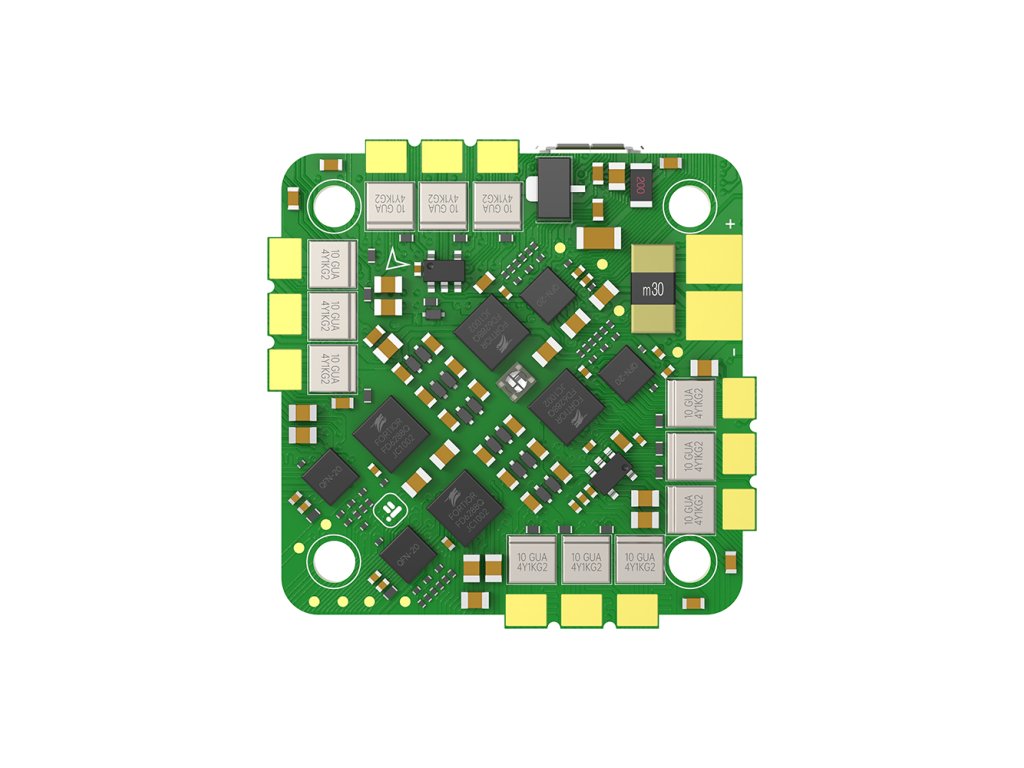

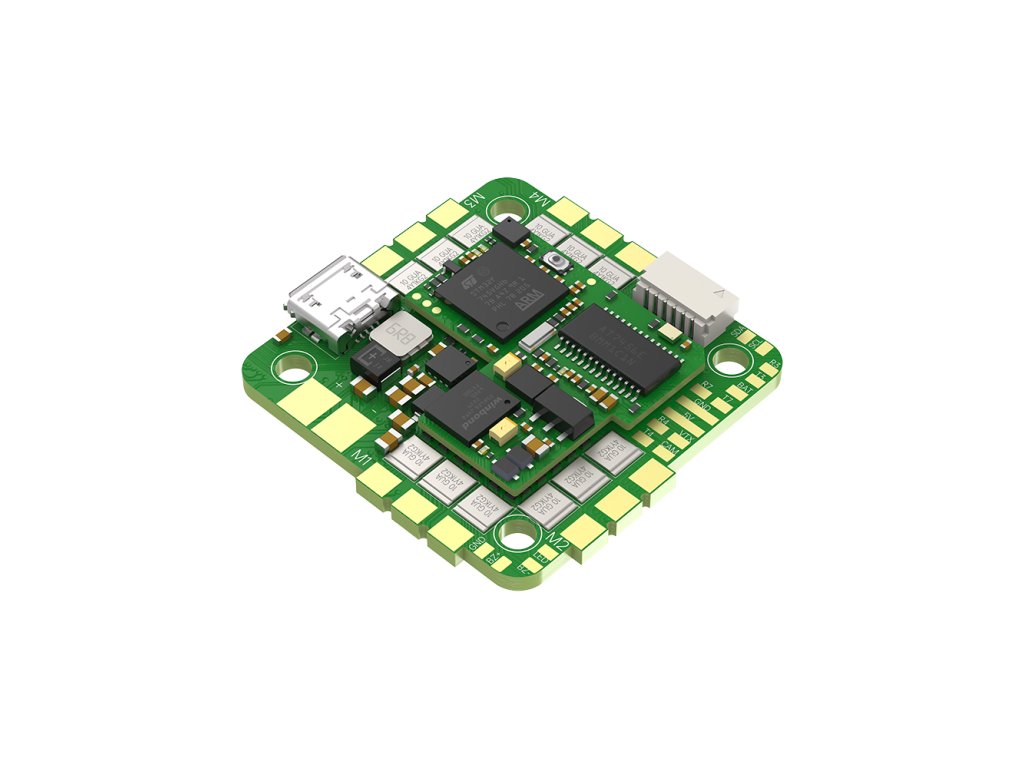

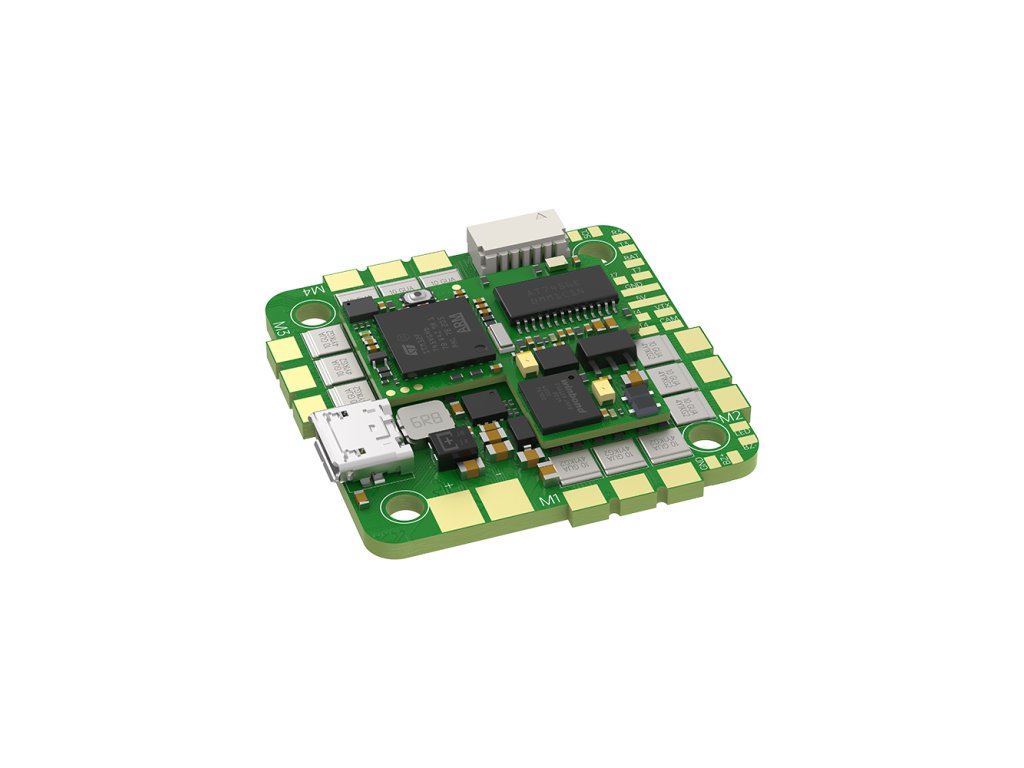

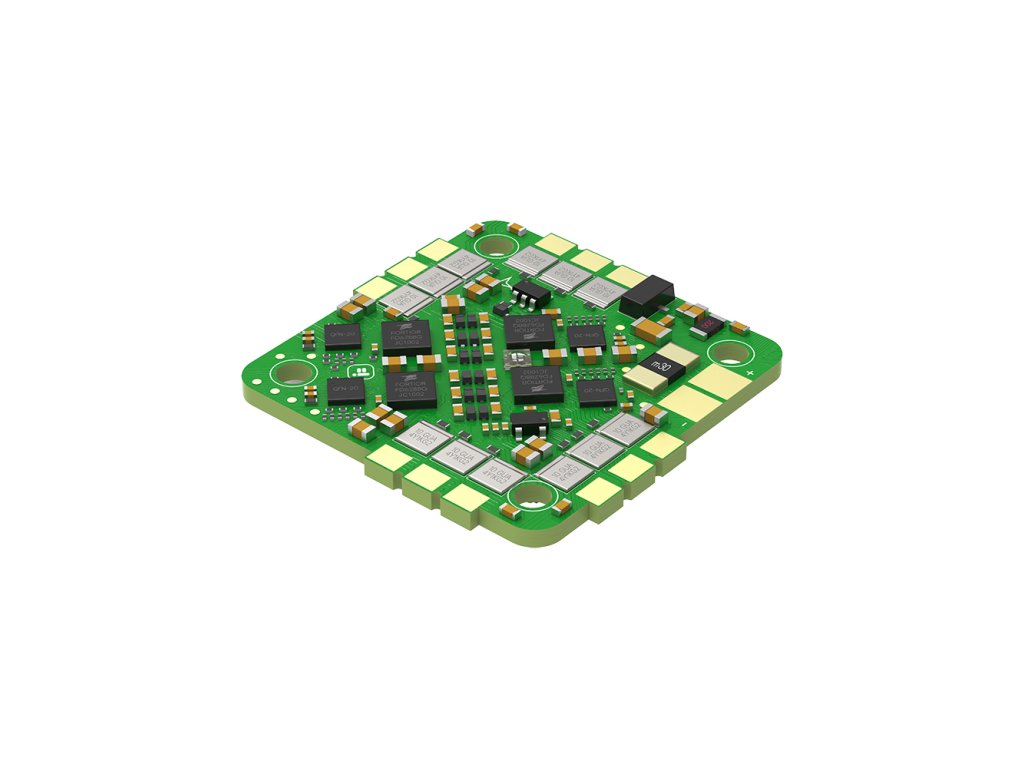

BLITZ Whoop F7 AIO V1.1

Features:
- Separated Flight Control board to minimize electrical gyro noise;
- Pass-through DJI O3 and Caddx Vista/Polar Connector;
- FC PCB can be disassembled from the ESC PCB;
- Repair allowed.

FC Specifications:
MCU: BGA-STM32F745
Gyro: ICM42688
Blackbox: 16MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E)
FC Firmware: IFLIGHT_BLITZ_F7_AIO

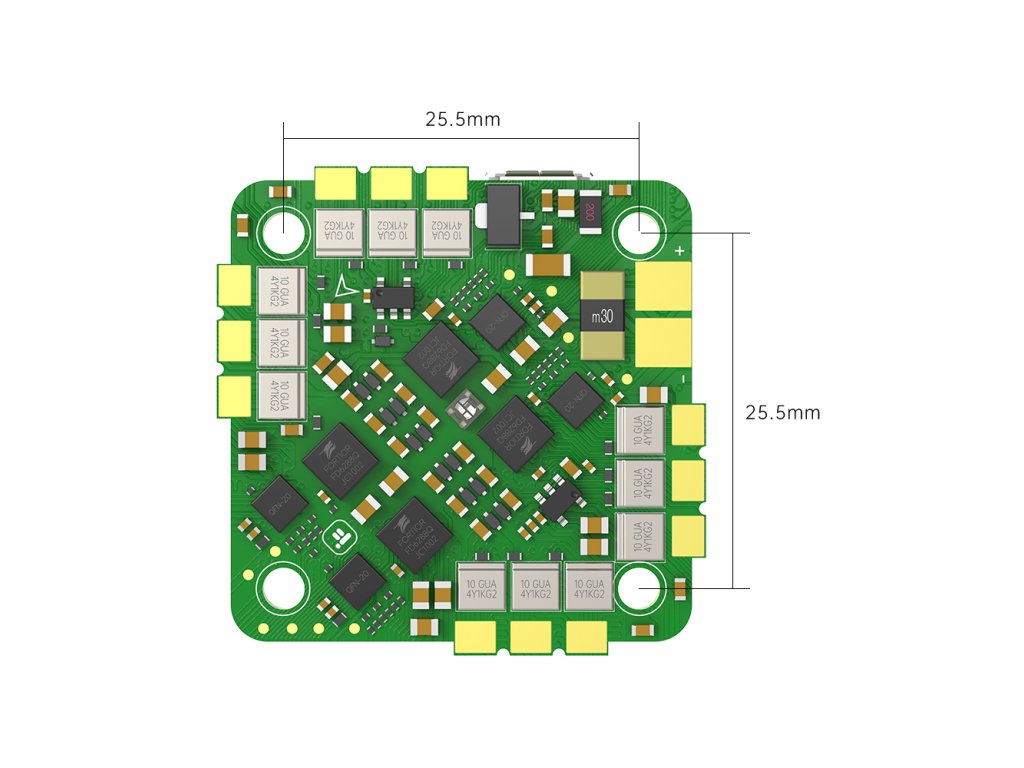

Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 35*35mm
Weight: 10.5g
BEC: 5V 2A / 3A
Input voltage: 2-6S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported

ESC Specifications:
ESC MCU: BB21
Driver: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 55A, peak value 65A (10 seconds)
ESC firmware: Q-H-40 - Bluejay, 0.16, 24kHz
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: NO
Bidirectional DShot: Yes(need to use Bluejay firmware)
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Package includes:
1 x BLITZ F7 AIO
2 x Capacitor 470uF/35V
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
8 x M2*12mm screws
8 x M2 Transparent Nylon Nut
10 x 0.8mm black Heat shrink tube 10mm

Additional parameters

Category: AIO FC
Continuous Current: 55A
Mounting Size: 25.5x25.5mm
Power Supply: 2-6S
Processor Type: F7
