GPS Module iFlight BLITZ SPLIT GPS (for Defender25)
Code: B014378Product detailed description

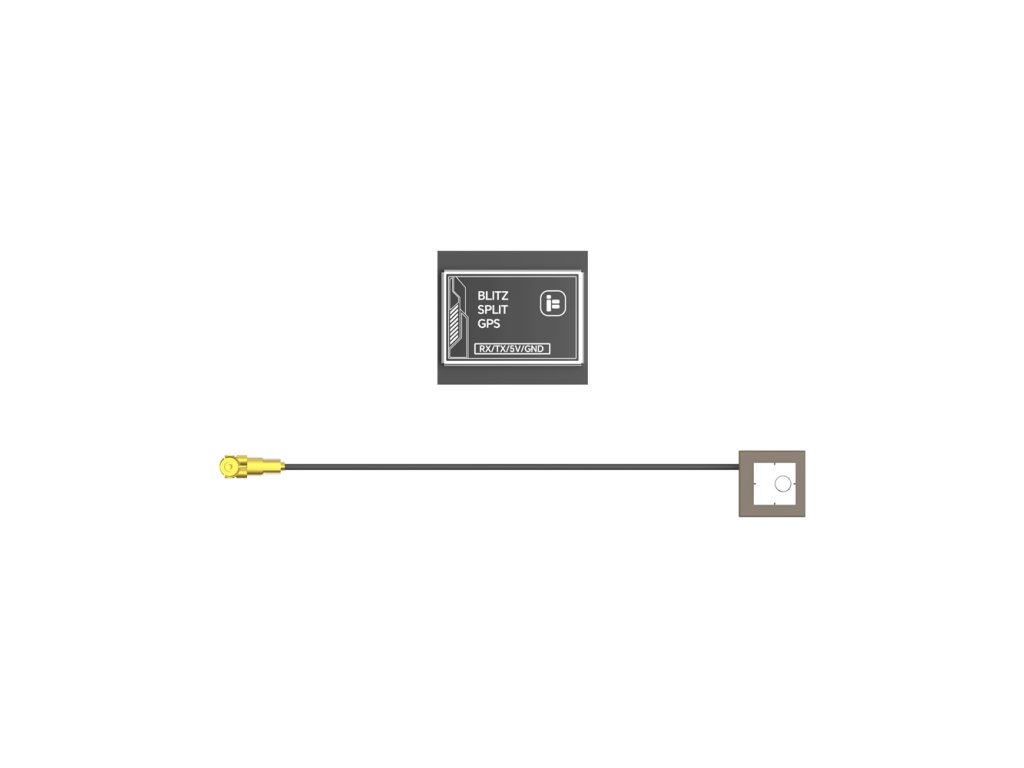

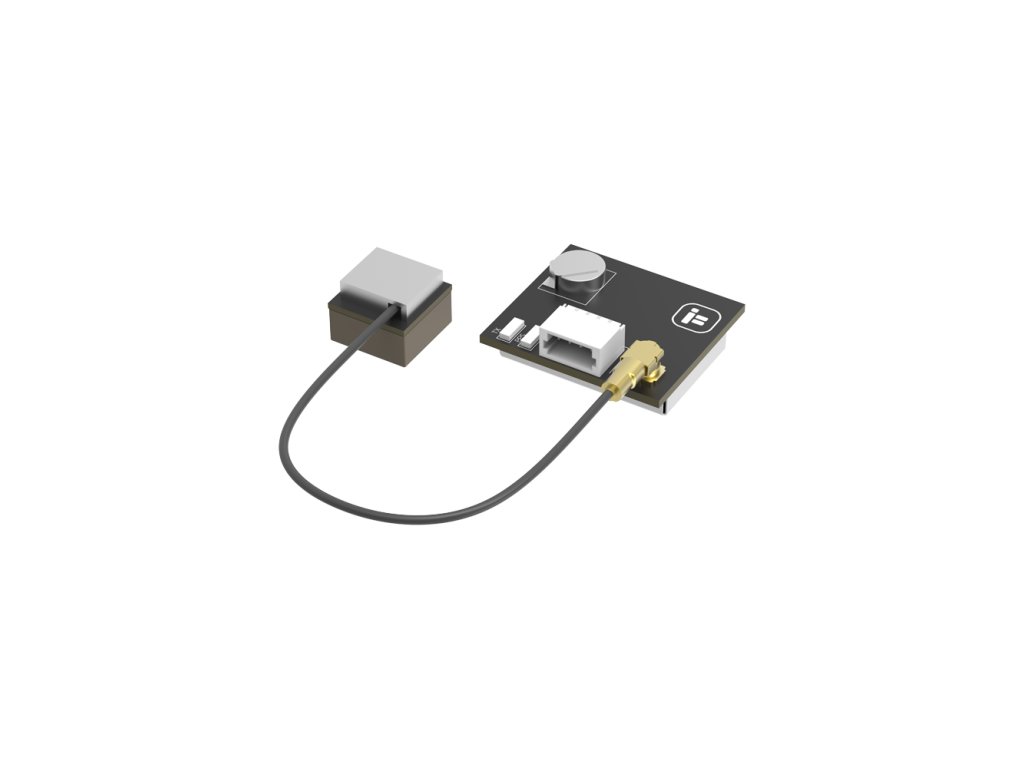

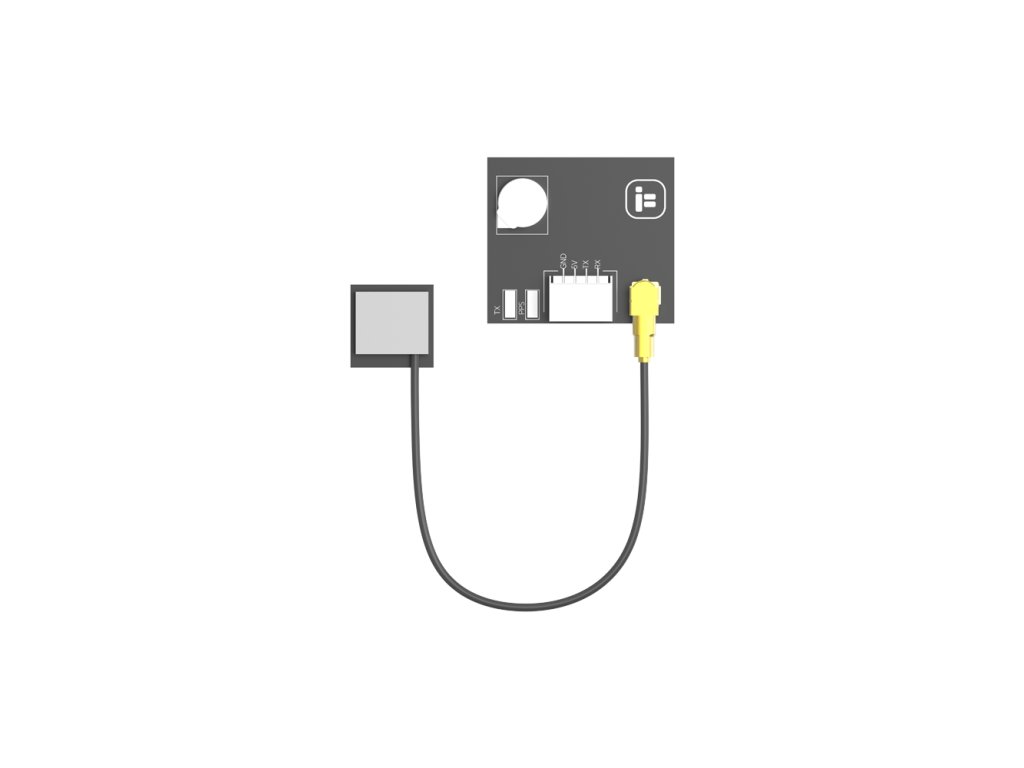

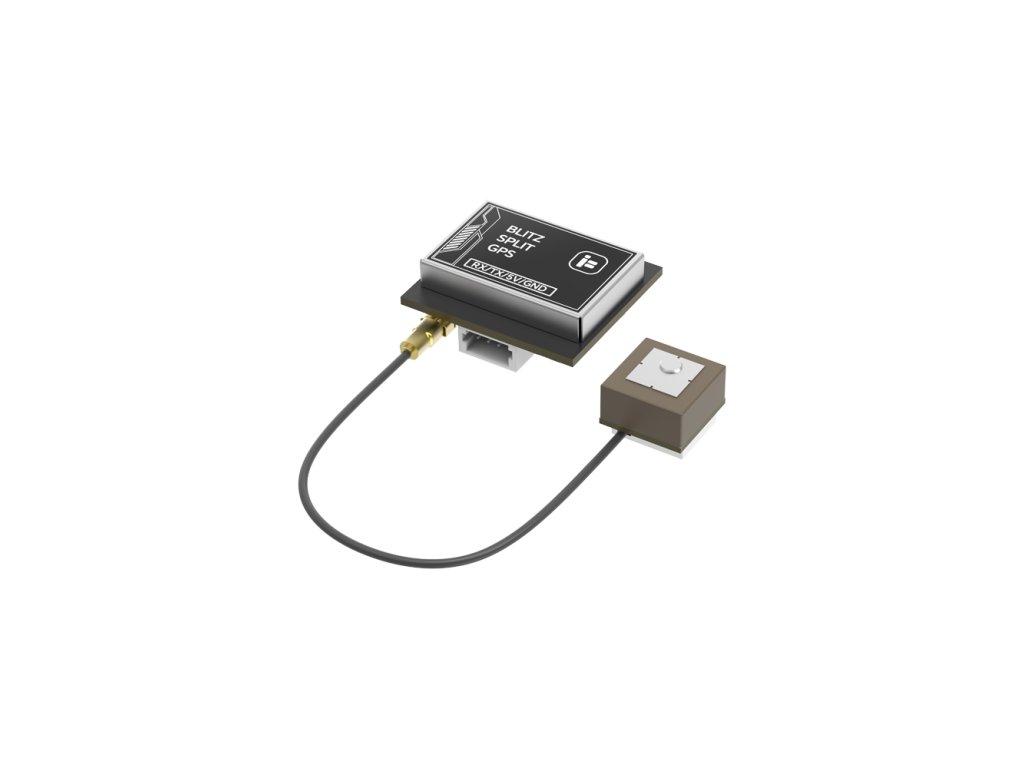

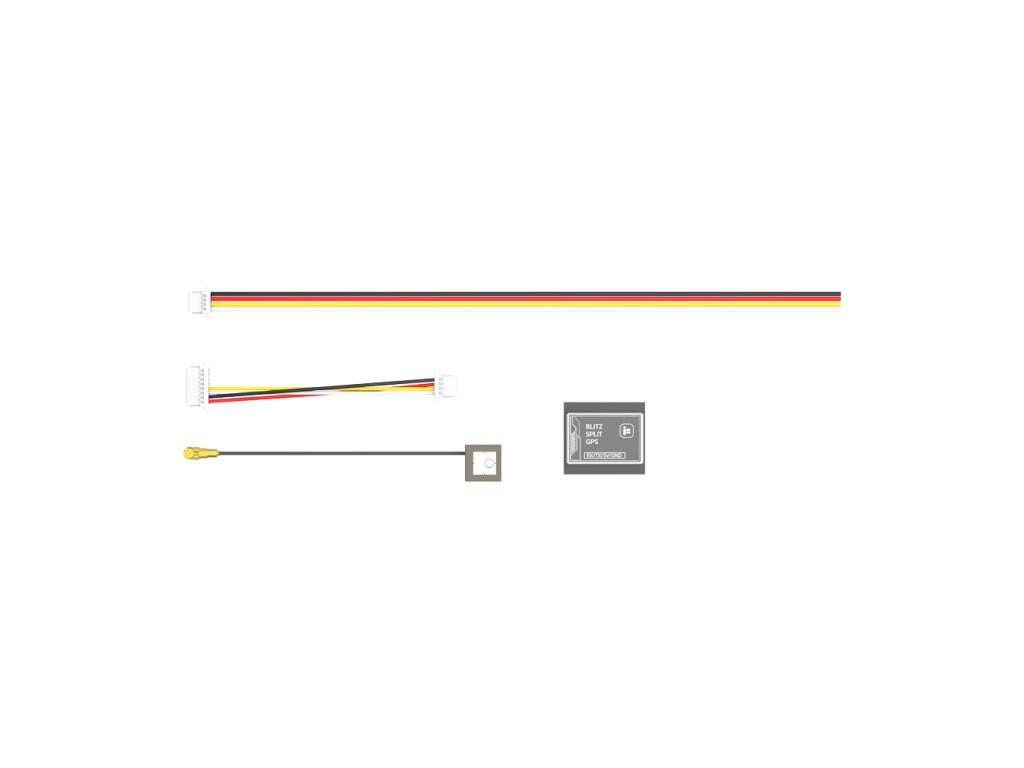

BLITZ SPLIT GPS (for Defender25) Features: - UBLOX M10 chip - Built-in farad capacitor for faster hot start - Onboard LNA (Low Noise Amplifier) - 10 Hz Refresh rate - Built-in Flash - The split antenna design enables the antenna to be hidden inside the drone Specifications: Baud Rate: 4800bps-115200bps (Default - 115200bps) Sensitivity: Tracking: -167dBm Cold start: 60s Hot start: 1s Maximum height: 50000m Maximum speed: 500 m/s Speed accuracy: 0.05 m/s Maximum acceleration: ≦ 4G Refresh Rate: 10 Hz Total dimensions: 18 x 16 x 7 mm Weight: 1.8 g Input Voltage: 3.3-5.5 V, current 40mA GPS pin definition: RX/TX UART Compatibility: Defender25 Package Includes: 1 x BLITZ SPLIT GPS 1 x Cable set
