AIO FC iFlight BLITZ F411 1S 5A Whoop

Code: B012717
Not rated
Brand: iFlight
15213 aio fc iflight blitz f411 1s 5a whoop
Loading...
75,02 € 62 € excl. VAT
In stock (10 pcs)
Delivery to:
25/03/2025
Delivery offer

Detailed information

Product detailed description

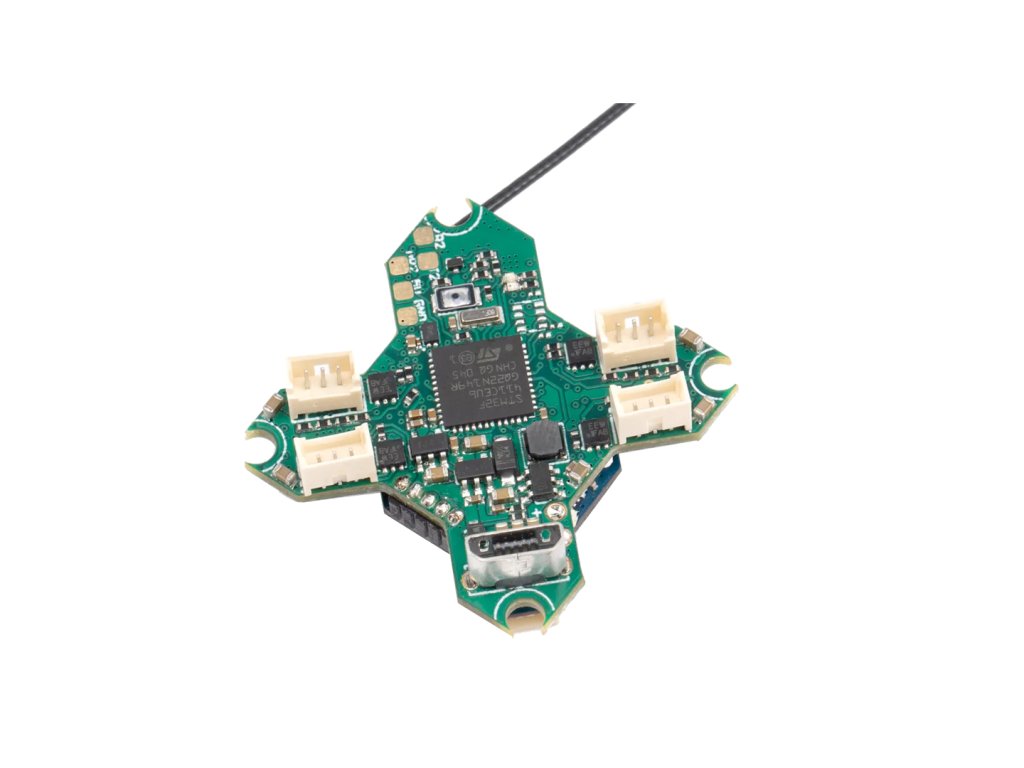

BLITZ F411 1S 5A Whoop AIO

FC Specifications:

Weight: 4.8g (with power cable, VTX, and VTX antenna)
Mounting pattern: 25.5*25.5mm/φ3mm (half-hole)
Supported Protocols: CC2500, SPI, D8, S-FHSS
FC Firmware: IFLIGHT_F4SX1280
BEC output: 5V 500mA
Connector: Micro-USB
MCU: STM32F411
INA pad: n uart2
Barometer: NO
Size: 29*29mm
Gyro: BMI270
Blackbox: NO
NOTE: F.PORT protocol RX input support, telemetry not supported

ESC Specifications:

ESC: 5A
Signal Support: Dshot, Oneshot, Multishot
Current: 5A continuous and peak 6A
ESC Firmware: O-H-30 BLS 16.8 (BlheliS) / Bluejay Q-H-50 (Bluejay)
Current sensor: yes
ESC Telemetry: NO
Current scale: 400
Input: 1S

VTX Specifications:

Protocol: Smart audio
Power: PIT/25/50mW
Connector: UFL/IPEX
Input voltage: 5V
Channels: 48CH

Package Includes:
1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G ELRS w/SMD Antenna
4 x M2 Rubber Balls
1x Whip antenna

Additional parameters

Category: AIO FC
Mounting Size: 25.5x25.5mm
Power Supply: 1S
Continuous Current: 5A
Processor Type: F411
