Stack iFlight BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)

Product detailed description

BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)

Features

- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- BLITZ E80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster responding speed and a smoother flying experience.

FC Specifications

Product Name: BLITZ F7 Pro Flight Controller
Mount pattern: 35*35mm/ 4mm PCB hole diameter
Smartaudio / IRC Tramp VTX protocol supported
Firmware target: IFLIGHT_BLITZ_F7_PRO
Input Voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 41*41.5mm
Barometer: DPS310
OSD Chip: AT7456E
LED controller: Yes
MCU: STM32 F722
Weight: 17g (±2)
Beeper pad: Yes
Gyro: BMI270
UARTS: 4

ESC Specifications

Product Name: BLITZ E80 Single ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Dimensions: L40 x W17 x W10mm
Weight: 14.5g(±2)

Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

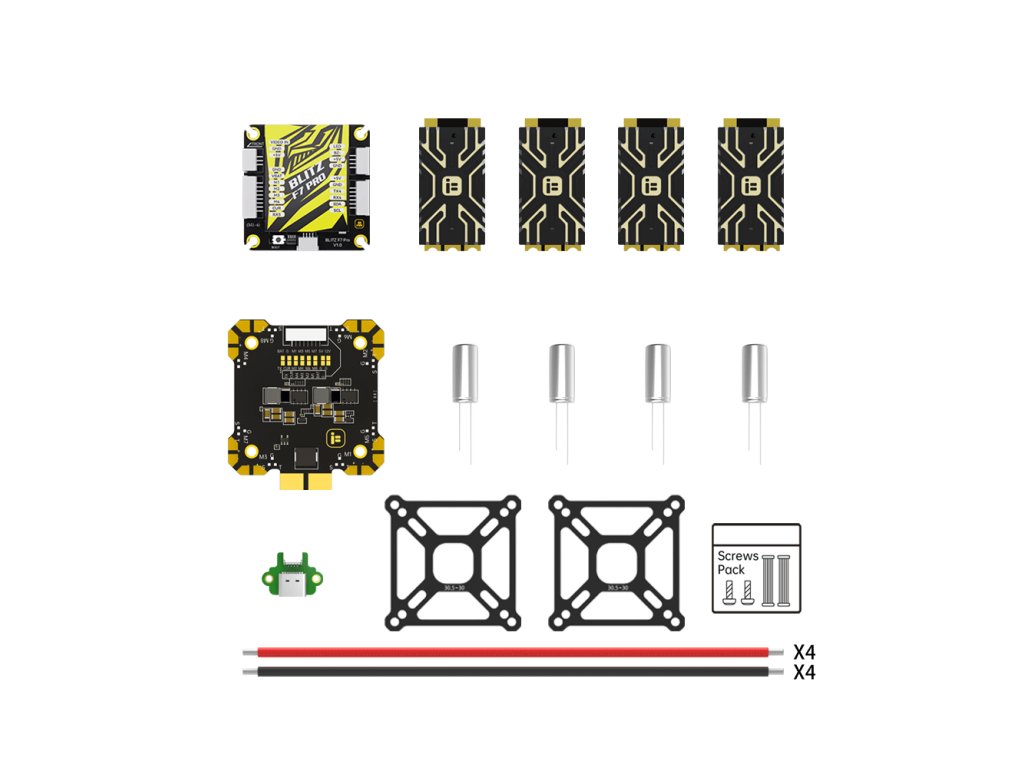

Packing List
1 x BLITZ F7 Pro Flight Controller
4 x BLITZ E80 Single ESC with CNC Alum Cover (Combo2)
4 x 50V 470UF capacitor (Combo2)
4 x Power cables & ESC signal wires (Combo2)
1 x BLITZ Pro PDB
1 x Screws Pack
1 x USB Adapter Board
