AIO FC iFlight BLITZ D25 HD F7 (Without OSD)

Code: B013810
Not rated
Brand: iFlight
€164,31 €135,79 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

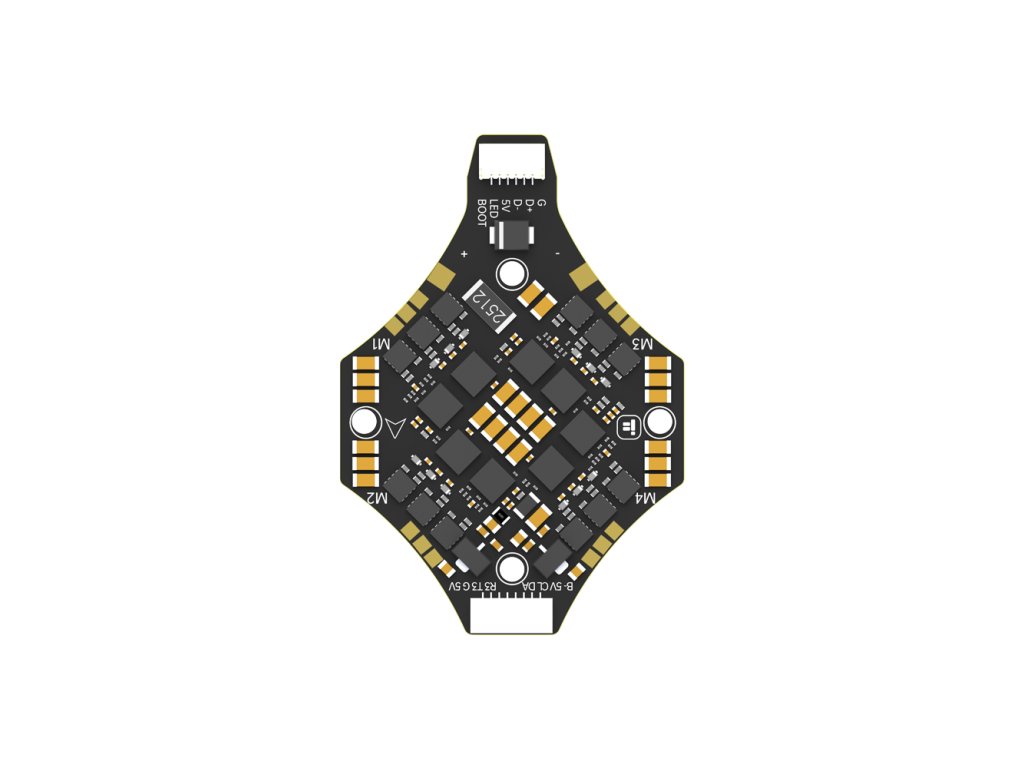

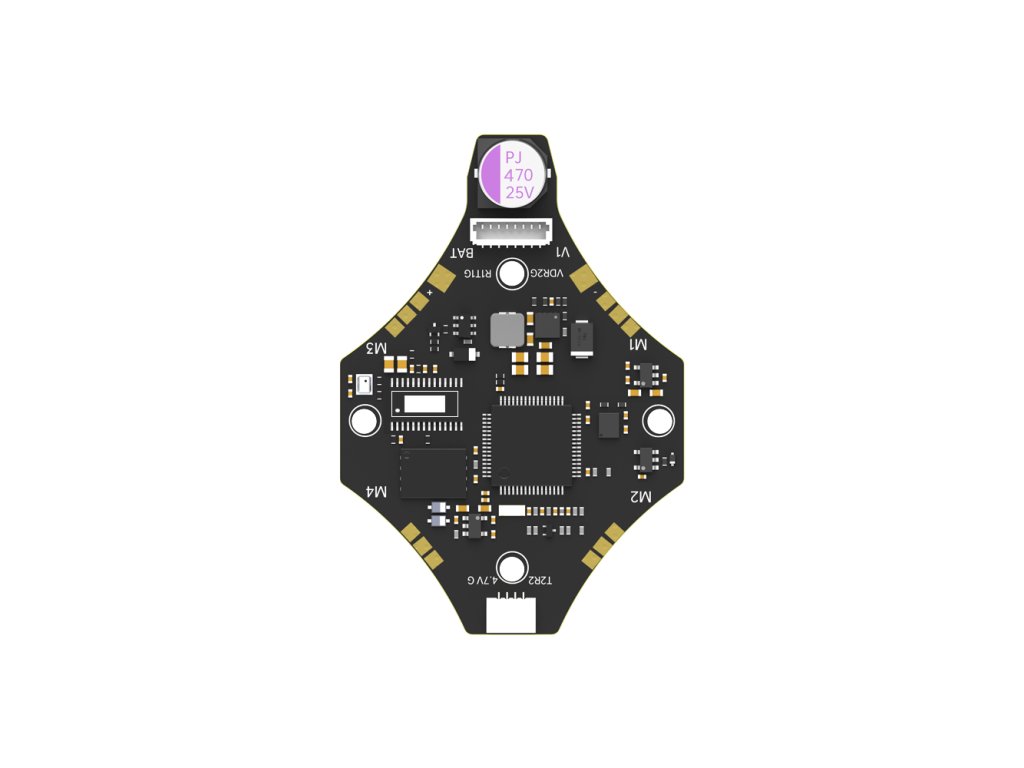

BLITZ D25 HD F7 AIO (Without OSD)

FC Specifications:

MCU: STM32F722
Gyro: ICM42688
Blackbox: 32MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: SH1.0 to Type-C adapter
OSD: N/A (HD VTX version)
FC Firmware: IFLIGHT_BLITZ_F722_X1
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Input voltage: 2-4S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported
Weight: 12.8g±0.2g

ESC Specifications:

ESC MCU: STM32G071
Driver: FD6288
Input voltage: 2-4S Support LIHV battery
Output current: 20A, peak value 30A (10 seconds)
ESC firmware: IFLIGHT_BLITZ_G071_01
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: Yes (PCB routed, set UART6 for telemetry)
Bidirectional DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Compatibility:
1. This AIO without OSD Chip is made for Defender 25 HD VTX only.
2. Bigger size than the BLITZ Whoop BGA F7 AIO.

Package included
1 x Defender 25 BLITZ F7 AIO
1 x Capacitor 470uF/35V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets

Additional parameters

Category: AIO FC
Continuous Current: 20A
Mounting Size: 25.5x25.5mm
Power Supply: 2-4S
Processor Type: F7
