Antenna Kit AKK Diamond Combo (5G + 5.8G) 2pcs

Code: 4740
Not rated
Brand: AKK
€18,76 €15,50 excl. VAT
In stock (20 pcs)
Delivery to:
06/12/2024
Delivery offer

Detailed information

Product detailed description

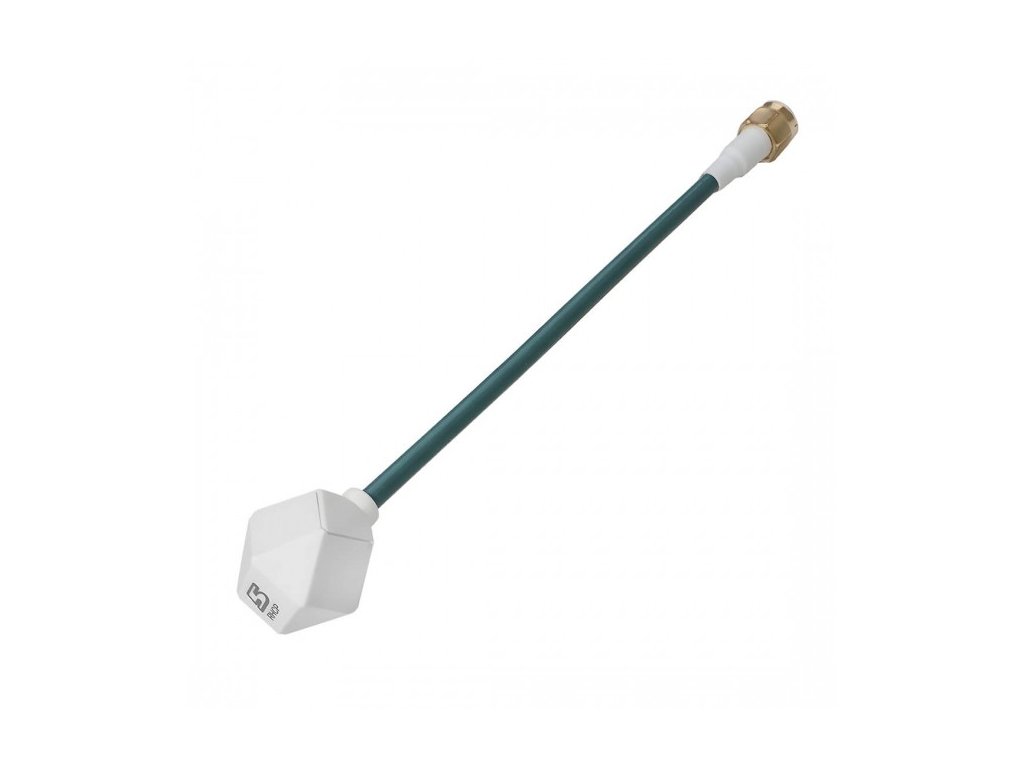

Antenna Kit AKK Diamond Combo (5G + 5.8G) 2pcs

The AKK 4.5dBi Diamond Antenna is a high-performance antenna for FPV systems, featuring RHCP, omnidirectional radiation, low VSWR, and a maximum power rating of 50W.

This combo set includes 2 antennas: a 5GHz version operates in the 4990-5500MHz range, while the 5.8GHz version operates in the 5500-6000MHz range.

Perfect match for AKK Alpha and AKK Ultra Long Range All Channels Version.

Specification:
Frequency Range:
- 5.5-6GHz
- 4.9-5.5GHz
Impedance: 50Ω
VSWR:<1.8
Gain: 4.5-6dBi
Polarization: RHCP
Radiation: Omnidirectional
Max Power: 50W
Height: 160MM
Connector: SMA-J
Color: White, Black

Package Includes:
1x 5GHz AKK Diamond Antenna
1x 5.8GHz AKK Diamond Antenna

Additional parameters

Category: VTX Antennas
Connector Type: SMA
Frequency: 4.9-5.8GHz
Length: 160mm
Polarization: RHCP
