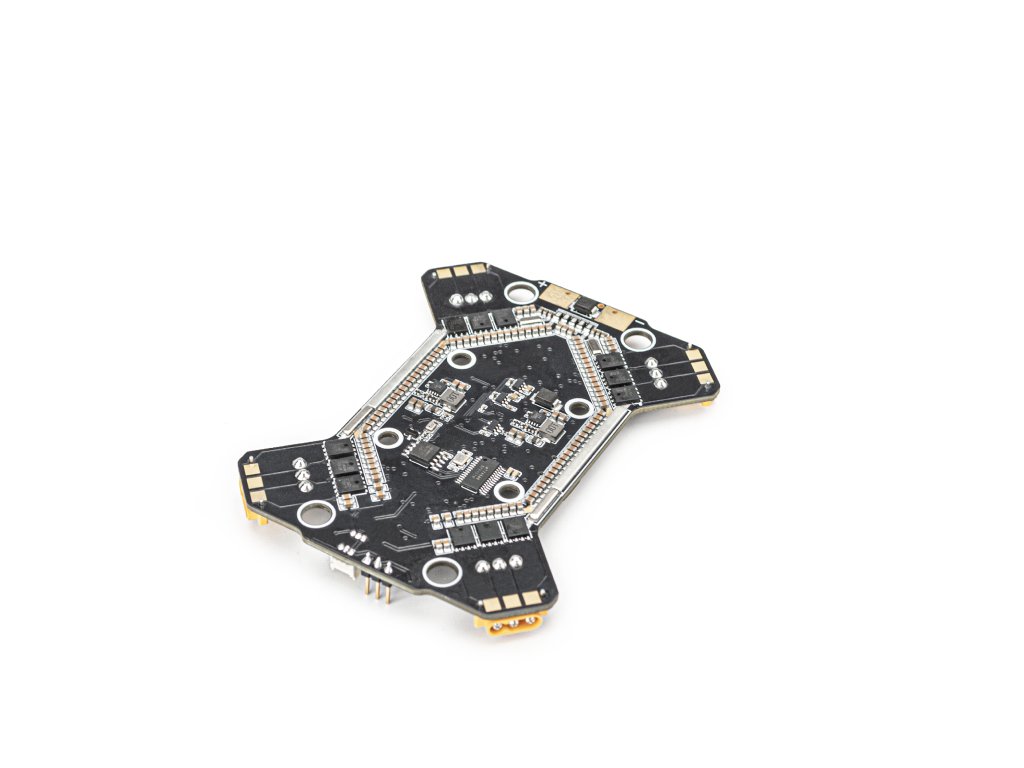

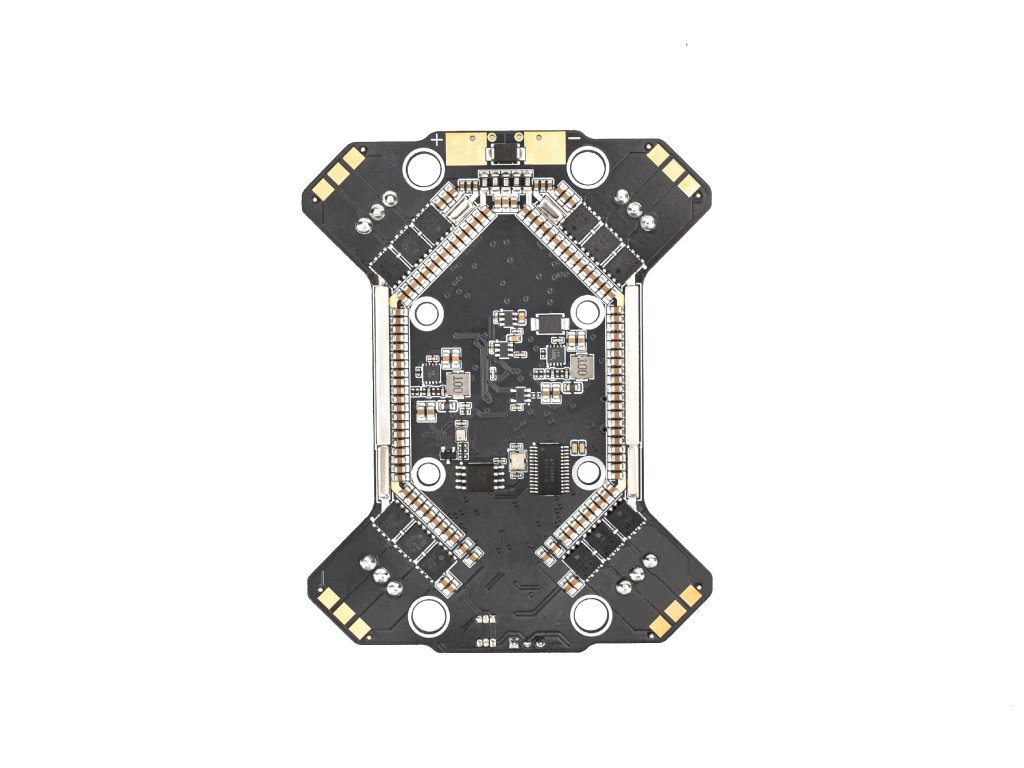

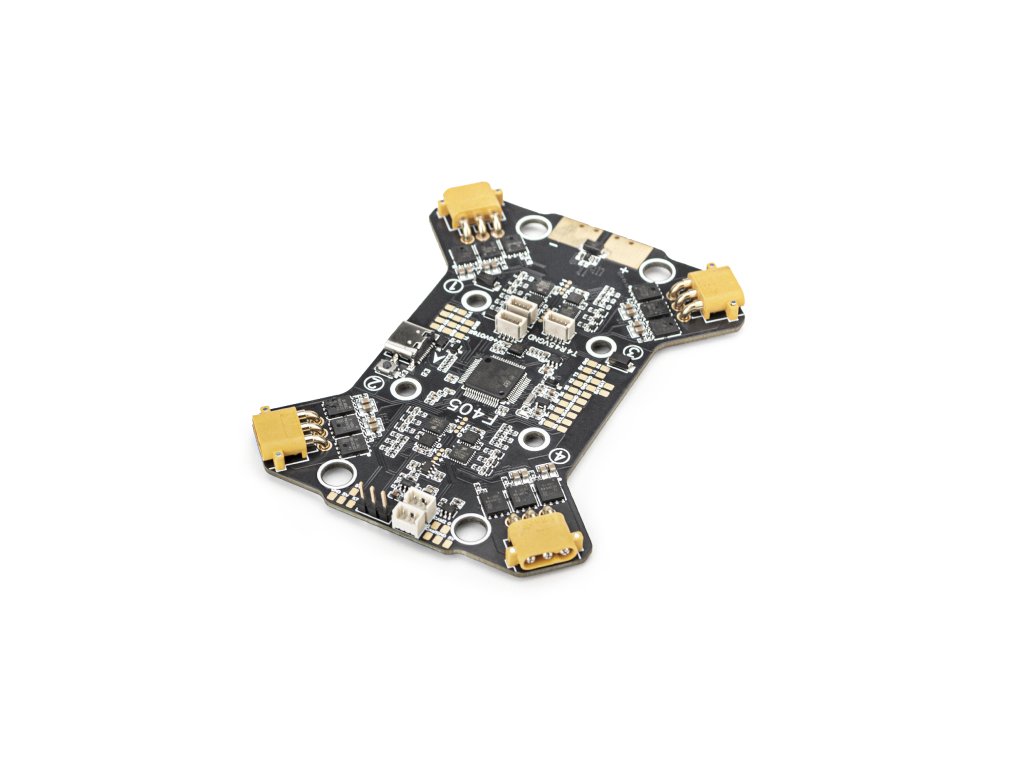

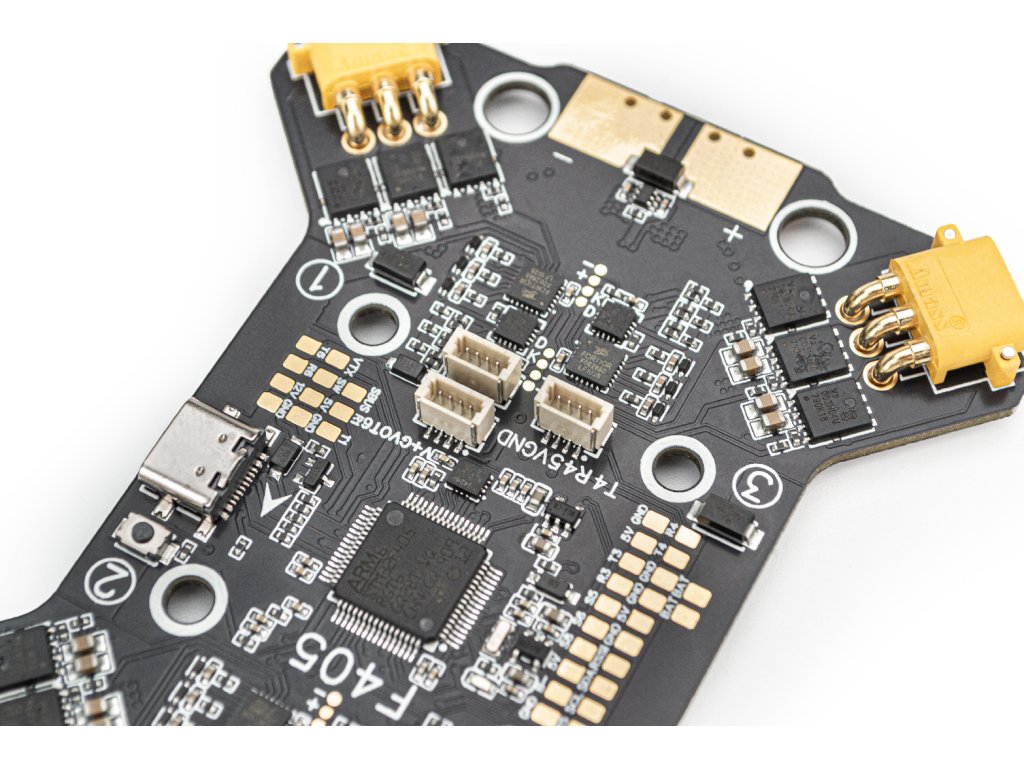

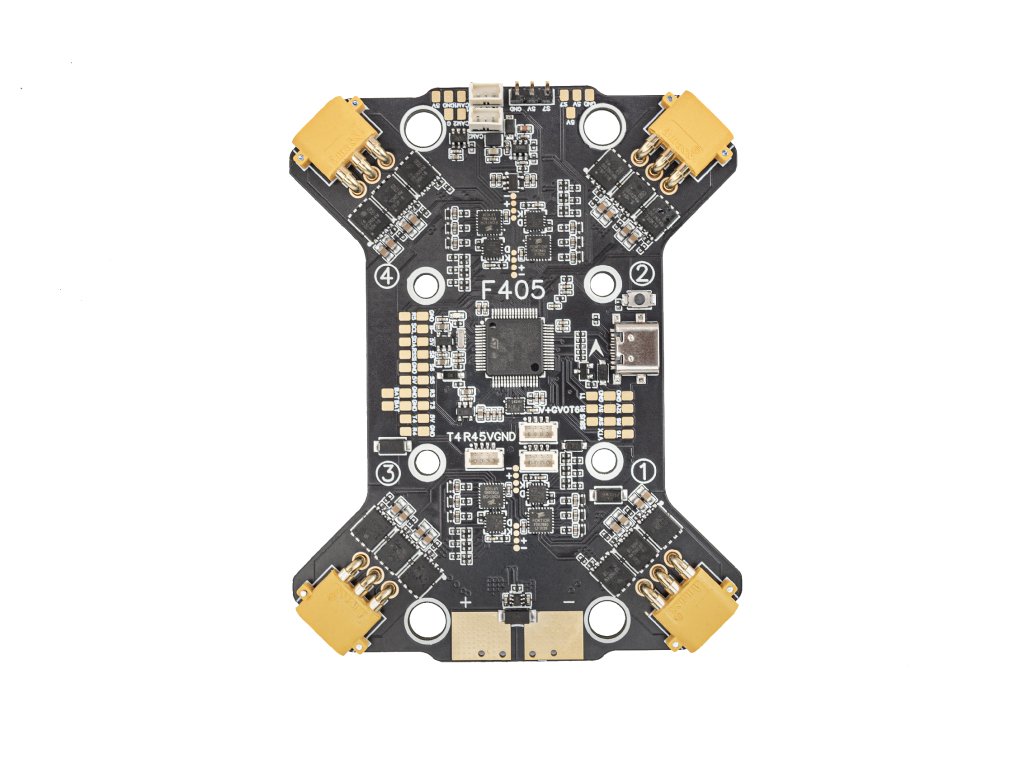

AIO Pilotix F405 65A V1

Product detailed description

The PILOTIX AIO F405 65A V1 is a unique flagship product developed in Europe that combines a Flight Controller (FC) and Electronic Speed Controller (ESC) in a single board.

Key features:

- Integrated design: This 2-in-1 flight controller combines FC and ESC to effectively manage heat dissipation, reducing the risk of overheating and preventing failures due to overheated components.

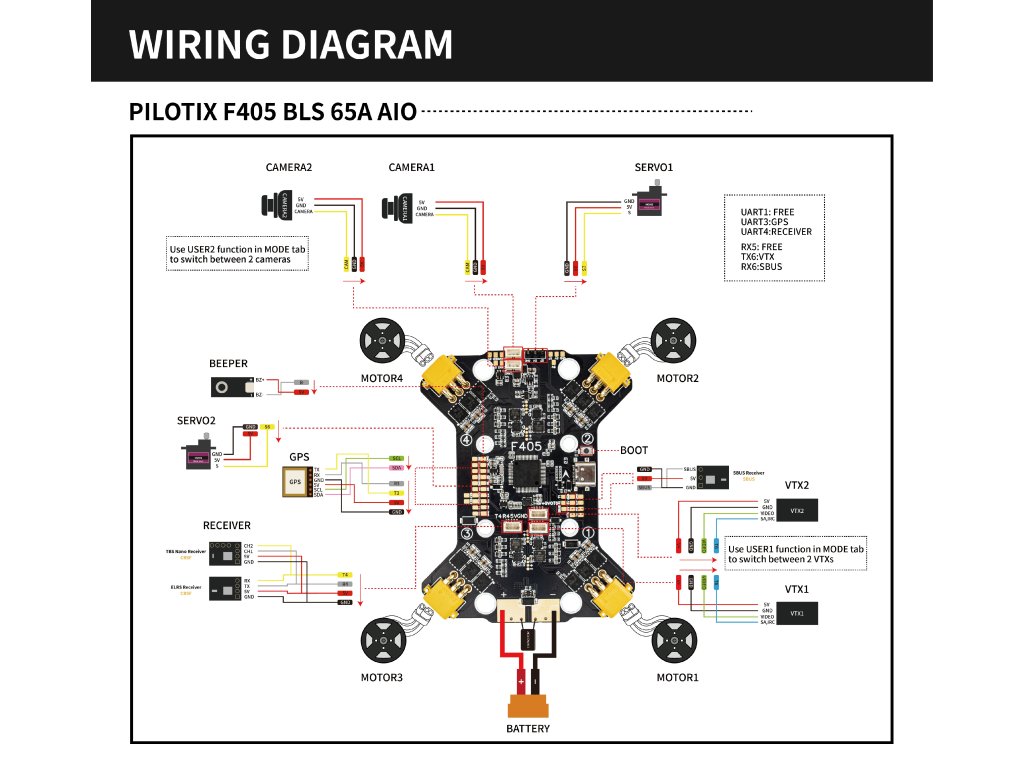

- Dual VTX with switching: It supports the simultaneous connection of two video transmitters (VTX) and allows users to easily switch between them. This allows for optimal use of different channels or transmission modes depending on the situation.

- Connecting two cameras: You can install two FPV cameras at the same time, such as a daytime and a nighttime (thermal) camera, to provide excellent 24/7 visibility. This combination allows the drone to remain effective in all conditions, providing reliable visual control in any situation.

- True Diversity support: The True Diversity RX Adapter Pilotix allows two receivers to be connected for improved signal reception, significantly enhancing the reliability of the control system.

- Easy installation: The solution is ideal for quick DIY installations thanks to pre-soldered connections. This reduces the likelihood of installation errors and allows you to quickly connect motors and other components.

- Peripheral connectivity: Provides enough UART ports to connect additional devices such as GPS, telemetry and other sensors to extend the functionality of the flight system.

- 65A Power: This AIO supports up to 65A, providing enough power for large drones ranging in size from 7 to 13 inches.

PLEASE NOTE: The PILOTIX F405 65A V1 AIO is ONLY compatible with PT V3 series frames by PILOTIX!

Specifications:

MCU: STM32F405
GYRO: ICM42688P
OSD: AT7456E
Barometer: SPL06
Blackbox: 16M Memory
UARTs: 5 Sets
ESC Signal: 8 Sets
BEC 5V: 2.2A
BEC 12V: 2.2A
TVS Protection: Yes
Software: Betaflight
CURR: Yes
Current: 65A
Peak Current: 75A
Input: 3-6S (3-8S version also available)
ESC Firmware: BLHeli_S/Bluejay
Protocol: PWM/Oneshot/DShot 150/300/600/MultiShot
Mounting: 30.5x30.5mm/M3
Size: 79x100mm

Package includes:
1x PILOTIX AIO F405 65A V1
4x Bolts
8x Nuts
4x Shock absorbers
