AIO FC HDZero AIO5
Code: HDZ5000Product detailed description
HDZero AIO5 All-in-One Board
The HDZero AIO5 is a groundbreaking innovation in FPV technology, serving as the world's first digital video AIO. It enables 65mm bind-and-fly whoops to weigh under 19.4g while delivering crystal-clear HD digital video. This all-in-one board integrates a range of high-performance components, including an F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT-ready 4-in-1 ESC, and a 5V/1A BEC.
Key Features
- Enhanced Durability and Simplicity: Built on a single thick PCB instead of a stacked design, improving durability and ease of installation.
- Improved Voltage Handling: Minimum voltage reduced to 2.5V, ensuring uninterrupted video transmission even when battery voltage drops.
- Next-Level Performance: Integrated components optimized for ultra-lightweight 1S whoops, setting a new standard for tiny drones.
- Global Availability: Developed in collaboration with Happymodel and HDZero, the AIO5 is available worldwide through leading FPV resellers and official online stores.
Specifications
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- ESC: Built-in 5A BLHeli_S 4-in-1 ESC (5A continuous, 6A peak for 3s)
- Factory ESC Firmware: O_H_5_48_V0.19.2.HEX
- Supported Protocols: DShot600 ready
- VTX: Built-in HDZero 5.8GHz transmitter
- RF Output: 25mW/200mW
- Supported Channels: R1-R8, F2/F4, L1-L8

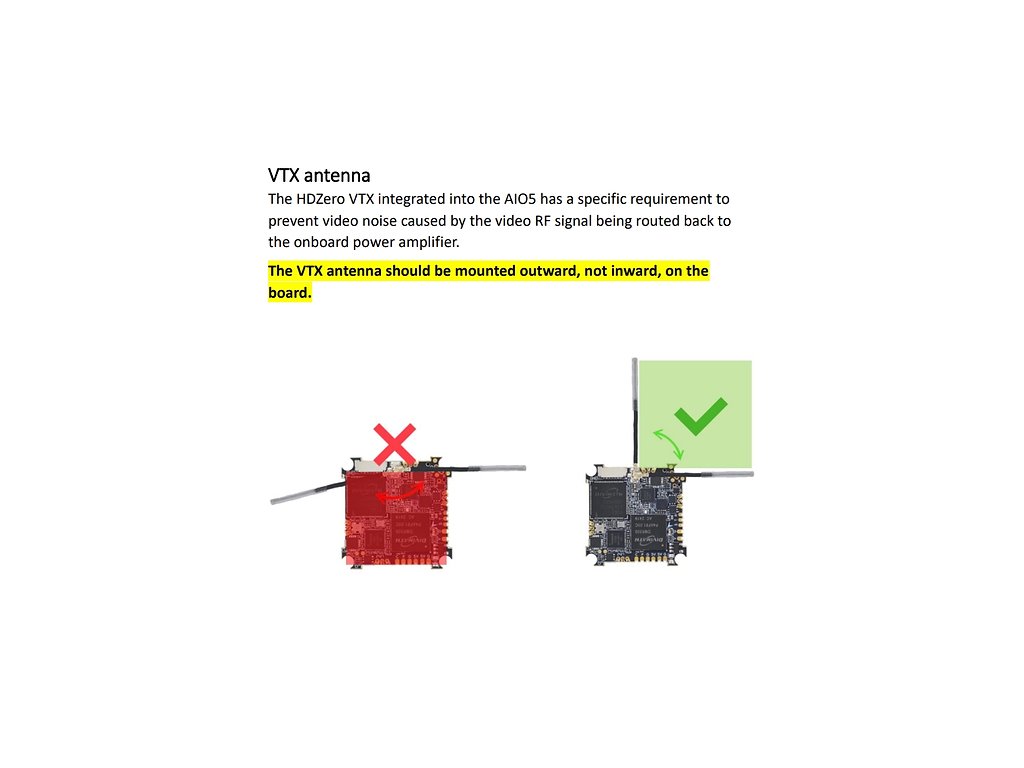

- Connector: UFL with included ultra-lite linear antenna
- Receiver: Built-in SPI ExpressLRS 2.4GHz
- Packet Rate Options: 25Hz/50Hz/150Hz/250Hz/500Hz
- Telemetry Output Power: <12dBm

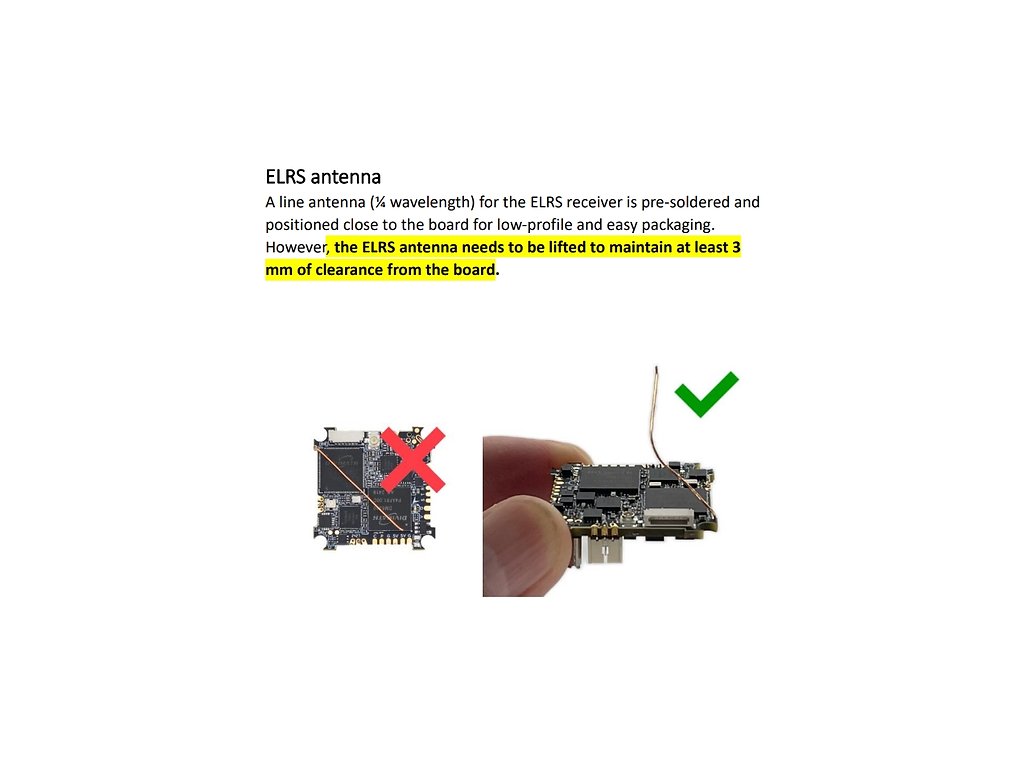

- Pre-soldered enamel wire antenna
- Power Supply: 1S battery (2.5V – 4.35V)
- BEC: Built-in 5V 1A
- Flight Controller Firmware Target: CRAZYBEEF4SX1280
- Board Size: 28.5 x 28.5mm, mounting hole size 25.5 x 25.5mm
- Weight: 5.7g (without motor plugs), 6.3g (with motor plugs)
- Compatibility: Fits popular whoop frames
Included in the Box
- 1x HDZero AIO5 Board
- 1x Power Cable (with inverted angle A30 connector)
- 4x Screws
- 4x Rubber Grommets
- 1x Ultra-Lite Linear VTX Antenna
Additional parameters
| Category: | AIO FC |
|---|---|
| Mounting Size: | 25.5x25.5mm |
| Power Supply: | 1S |
| Continuous Current: | 5A |
| Processor Type: | F4 |
