AIO FC GEPRC GEP-TAKER G4 45A
Code: GP106347Product detailed description

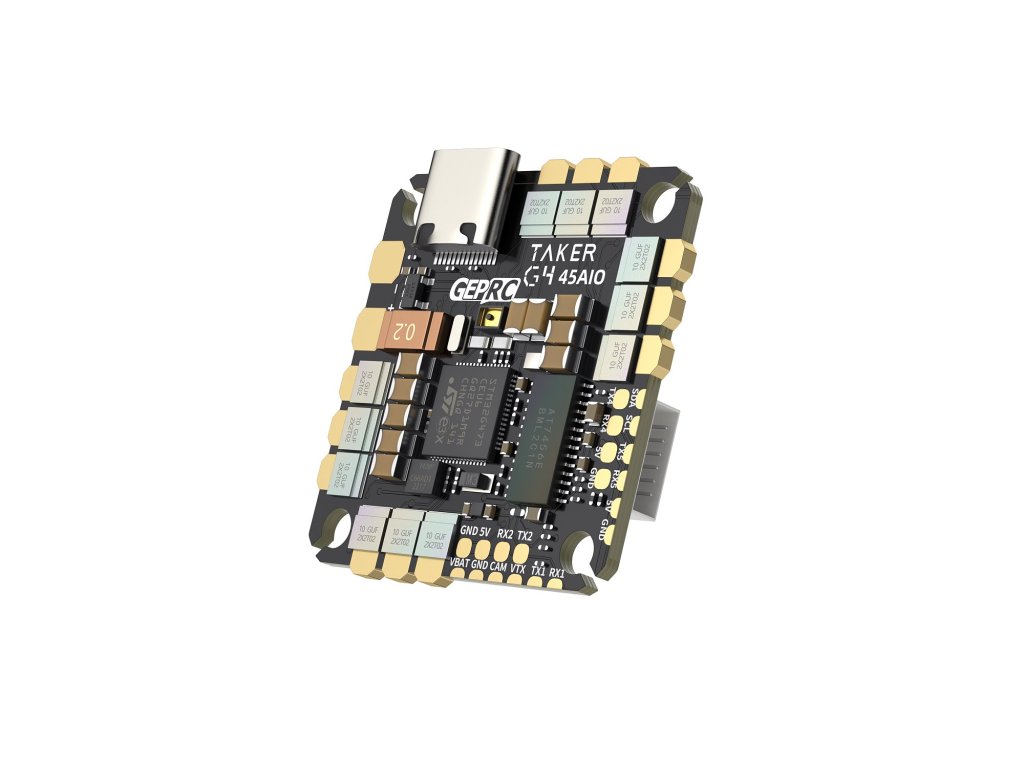

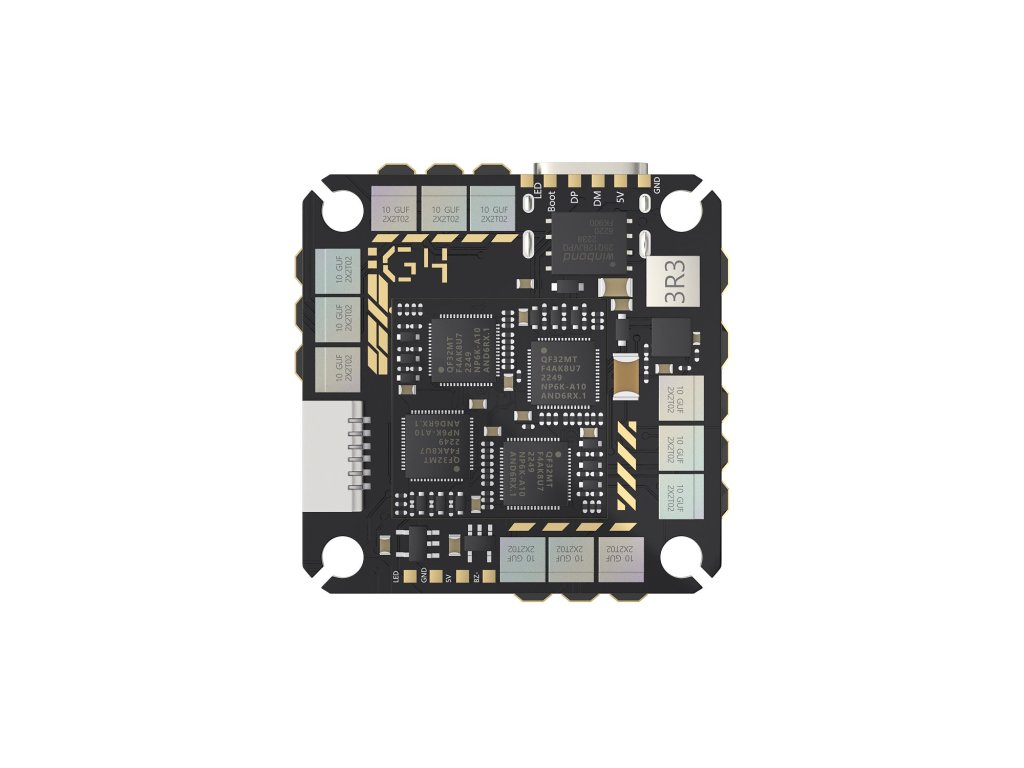

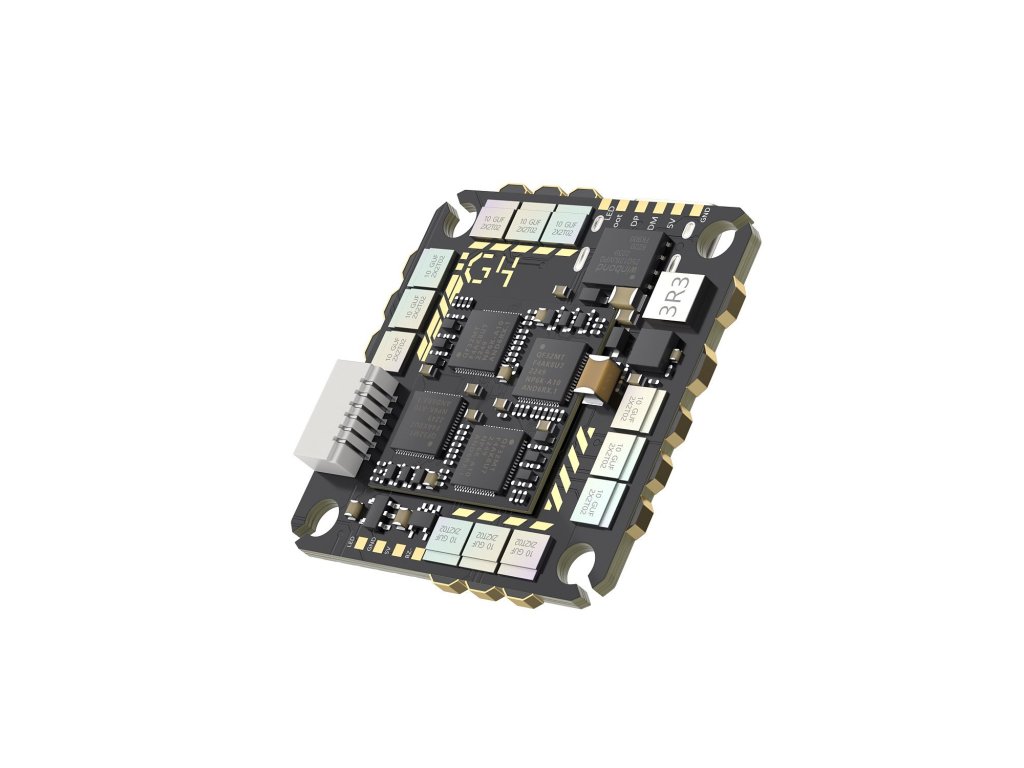

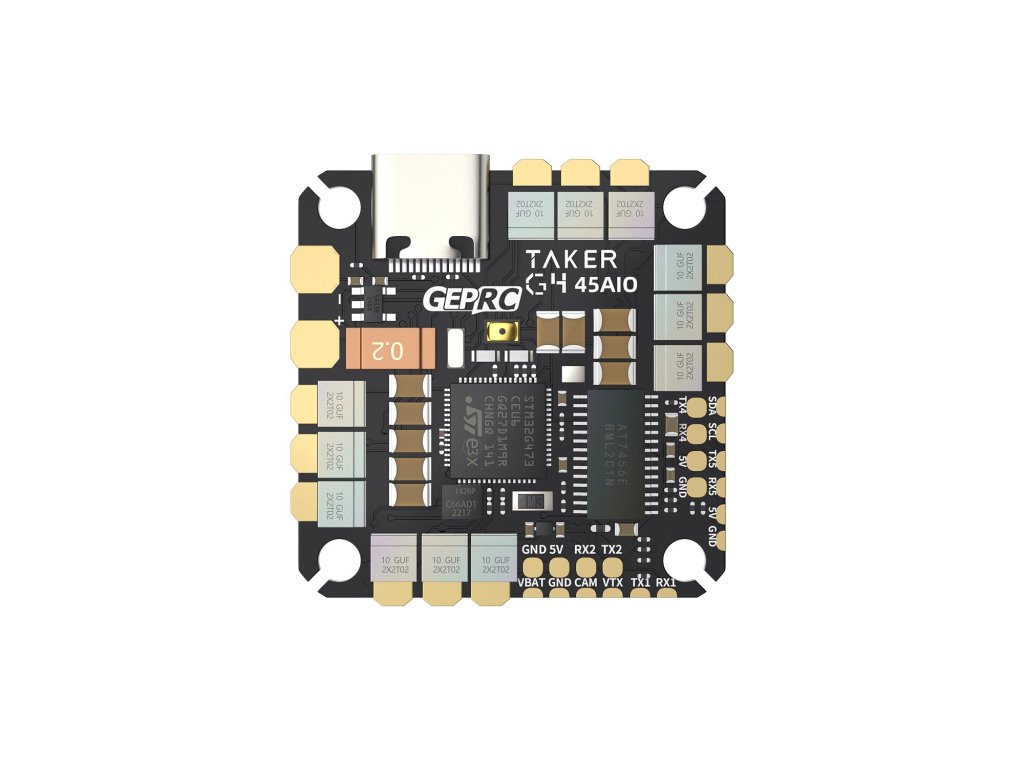

AIO FC GEPRC GEP-TAKER G4 45A TAKER G4 45A AIO is a new AIO flight control developed by the GEPRC team. The FC adopts the G473 main control to achieve better computing power. With its powerful overcurrent capability, the selectivity of the electrical setup is diversified. The whole board is covered with a nano waterproof coating, which gives AIO the appearance of an aura glow and also makes the AIO waterproof. Adopts QF32MT chip, the integrated ESU and MCU motivate FET directly, which is lightweight and space-saving. Features: - Weighs only 9 grams. - The G473 control possesses 170MHZ operating frequency and outstanding computing capability. - The optimized Type-c USB has better versatility. - The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving. Specifications: Model Name: TAKER G4 45A AIO MCU: STM32G473CEU6 IMU: ICM 42688-P Firmware target: TAKERG4AIO OSD: Betaflight OSD w/ AT7456Ev Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5 Buzzer: YES LED: YES USB: Type-c USB BEC output: 5V 3A ESC MCU: QF32MT Continuous Current: 45A Burst Current: 50A (5″) lnput Voltage: 2-6S (LIPO Battery) Supports: Dshot600,Oneshot,Multishot Current meter: YES target: F4A AIO Size: 33.8x34.1mm Board Install hole: 25.5x25.5mm Weight: 9g Package Includes: 1 x GEP-TAKER G4 45A AIO 1 x Cable Set
Additional parameters
| Category: | AIO FC |
|---|---|
| Mounting Size: | G4 |
| Number of blades: | 2-6S |
| Power Supply: | 25.5x25.5mm |
