AIO FC GEPRC GEP-TAKER F411-12A-E 1-2S

Code: GP106153
Not rated
Brand: GEPRC
16158 aio fc geprc gep taker f411 12a e 1 2s
Loading...
64,25 € 53,10 € excl. VAT
In stock (3 pcs)
Delivery to:
26/03/2025
Delivery offer

Detailed information

Product detailed description

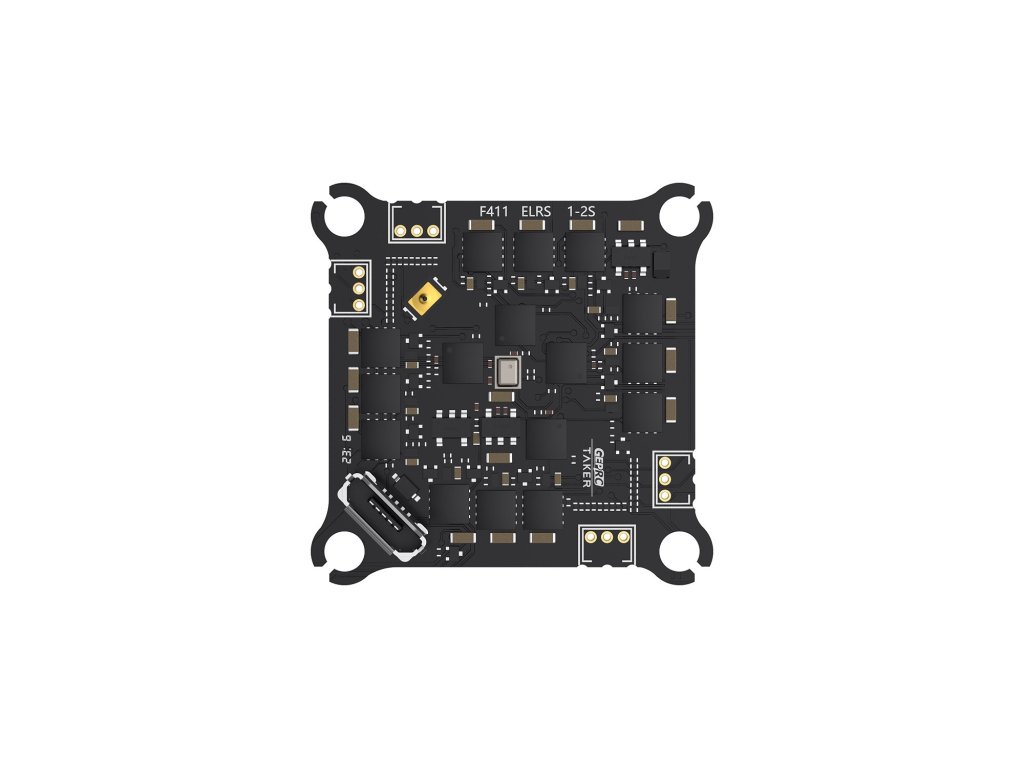

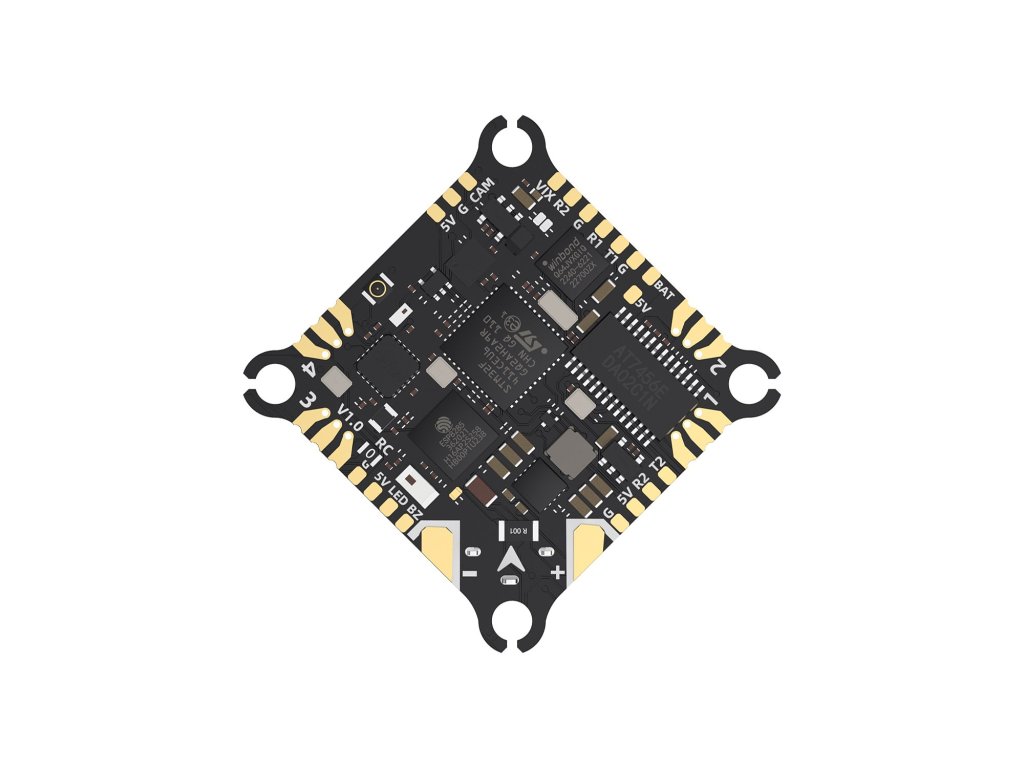

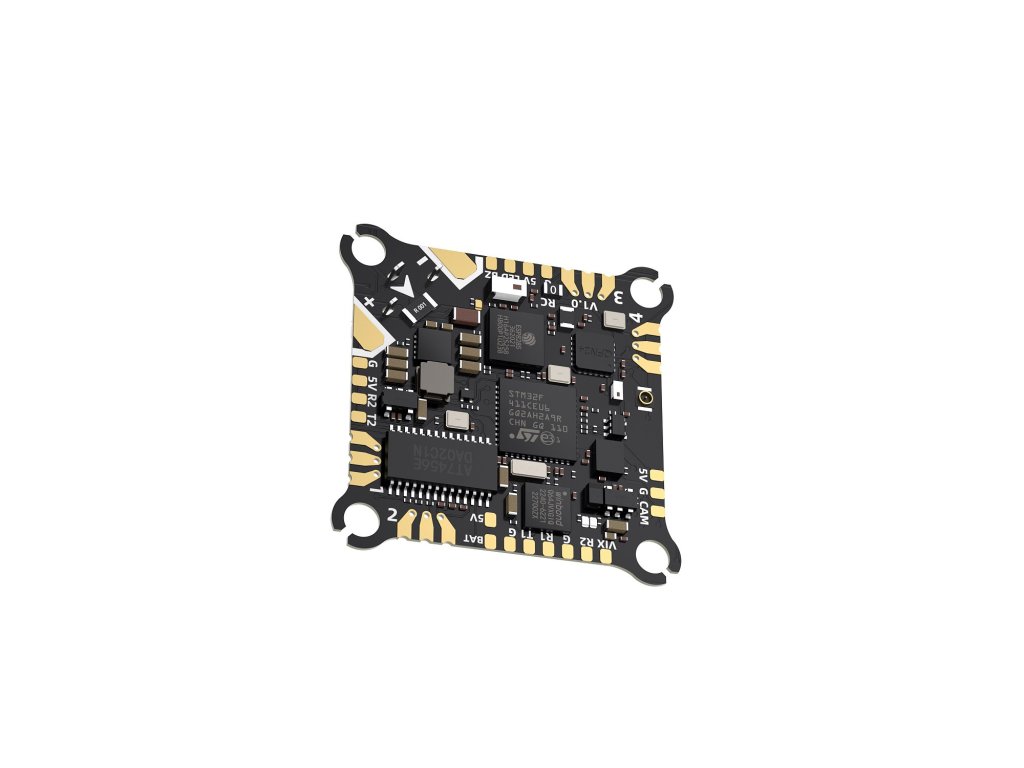

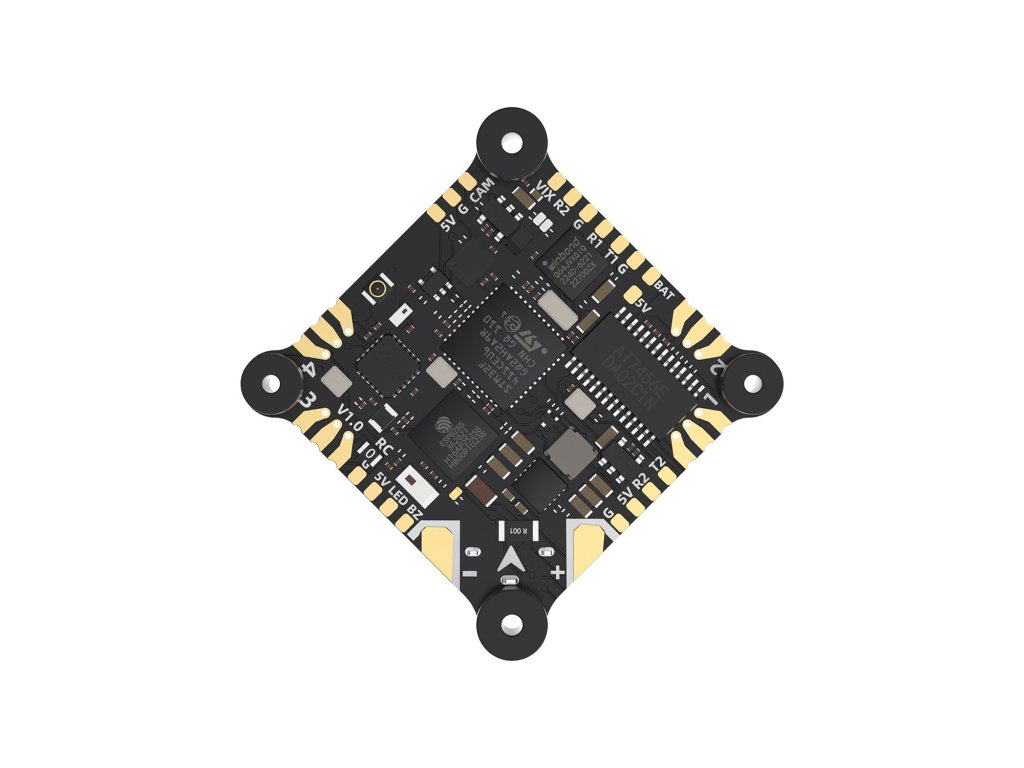

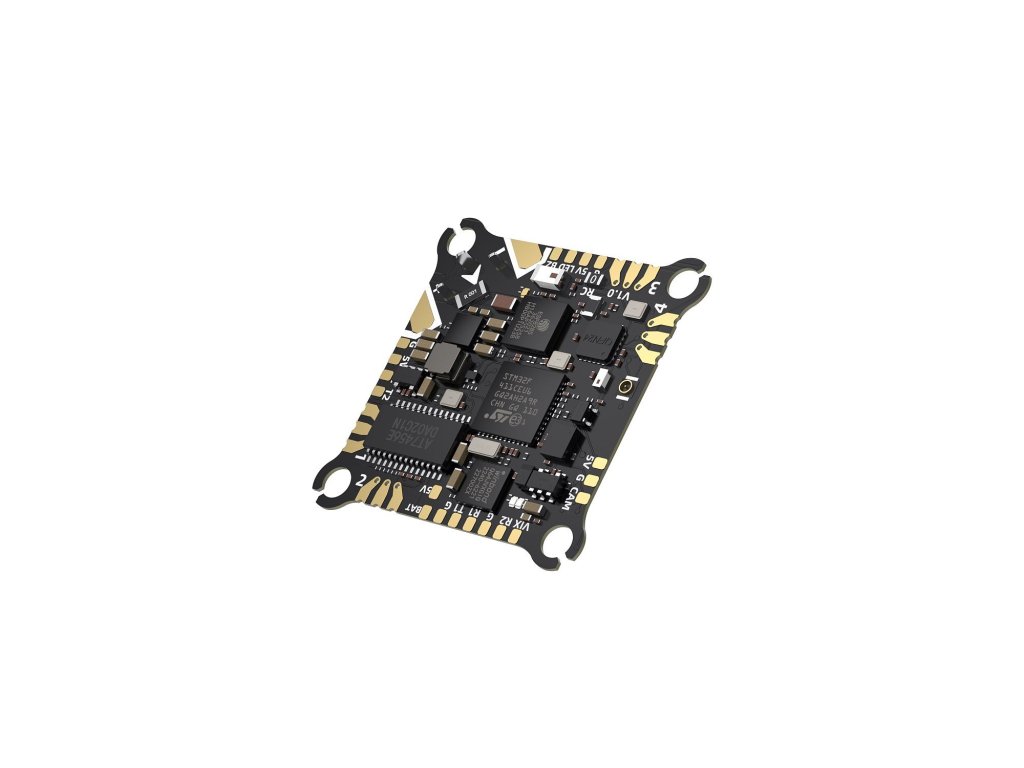

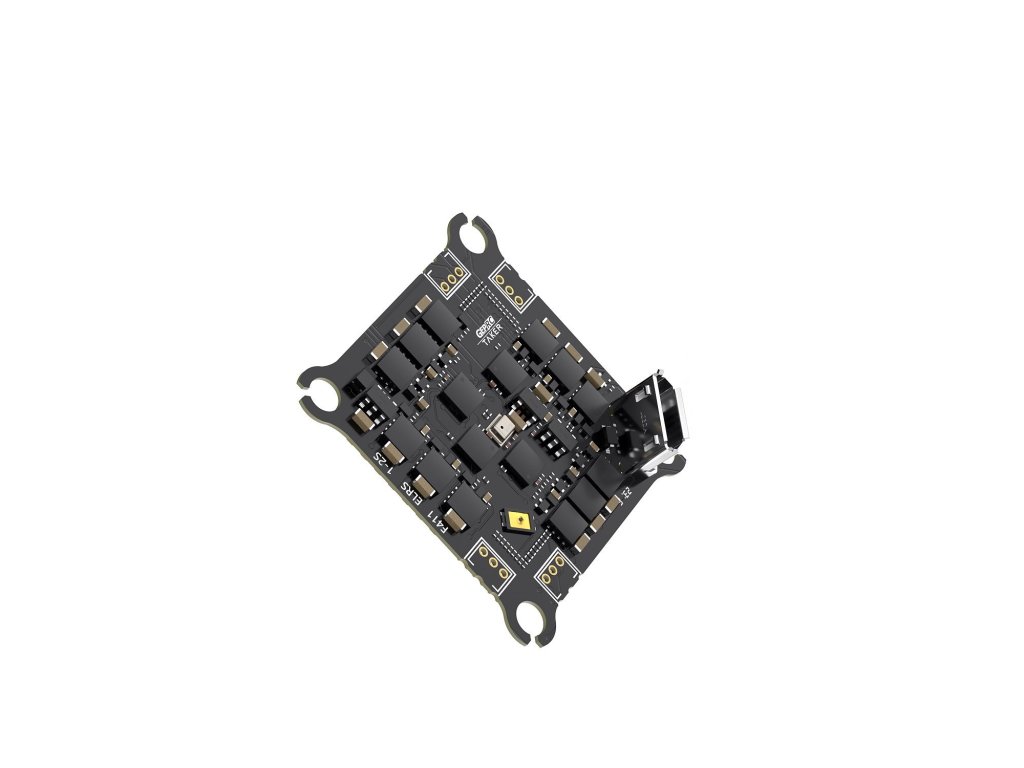

AIO FC GEPRC GEP-TAKER F411-12A-E 1-2S

TAKER F411-12A-E 1-2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2-inch Whoop models or 3-inch toothpick models.

The 12A ESC overcurrent capability has sufficient redundancy on a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The F411 main control is equipped with a BMI270 gyroscope, making the flight feel silky and stable.

Features:

- Highly integrated and lightweight flight system
- Supports 1-2S power supply and has higher battery compatibility
- STM32F411 main control and BMI270 gyroscope solution, the flight feels silky and stable
- The motor wiring is reserved for welding or SH1
- Integrated ELRS2

Specifications:

Model: TAKER F411-12A-E 1-2S AIO
MCU: STM32F411
IMU: BMI270
Firmware Target: TAKERF411
OSD: Betaflight OSD w/ AT7456Ev
UART: T1 R1 / T2 R2
SBUS: R2
Receiver: ELRS2.4G 3.0
Buzzer: Support
LED: Support
USB: Micro USB
ESC MCU: EFM8BB21F16G
Continuous Current: 12A
Burst Current: 13A
Input Voltage: LiPo/LiHv 1S-2S
Support Protocol: Dshot300/600, Oneshot, Multishot
Blackbox: 8MB
Galvanometer: Support
Firmware Target: C-X-30
Size: 30.5mm*30.5mm
Fixing hole size: 25.5mm*25.5mm(M2)
Weight: 4.2g

Package Includes:
1 x TAKER F411-12A-E 1-2S AIO
1 x Cable Set

Additional parameters

Category: AIO FC
Mounting Size: F411
Power Supply: 25.5x25.5mm
Number of blades: 1-2S
