AIO FC BetaFPV Matrix 1S Air Brushless (5 IN 1)

Product detailed description

BetaFPV Matrix 1S Air Brushless Flight Controller (5 IN 1)

Designed with both beginners and enthusiasts in mind, the Matrix 1S Air Brushless Flight Controller delivers robust performance and durability. The no-solder, thicker board design makes it ideal for newcomers, while the lightweight, race-tuned 5 IN 1 version caters to advanced pilots seeking high responsiveness. Both models are rigorously tested to meet competition-grade standards.

Key Features

• Flight Controller

  • MCU: STM32G473CEU6
  • Gyro: ICM42688P
  • Blackbox: 16MB memory
  • Voltage/Current Sensor
  • BEC Output: 5V/3A
  • BetaFlight OSD: AT7456E
  • UART Ports: 4 (dedicated for VTX, RX, and others)
  • Firmware: Betaflight_4.5.0_BETAFPVG473

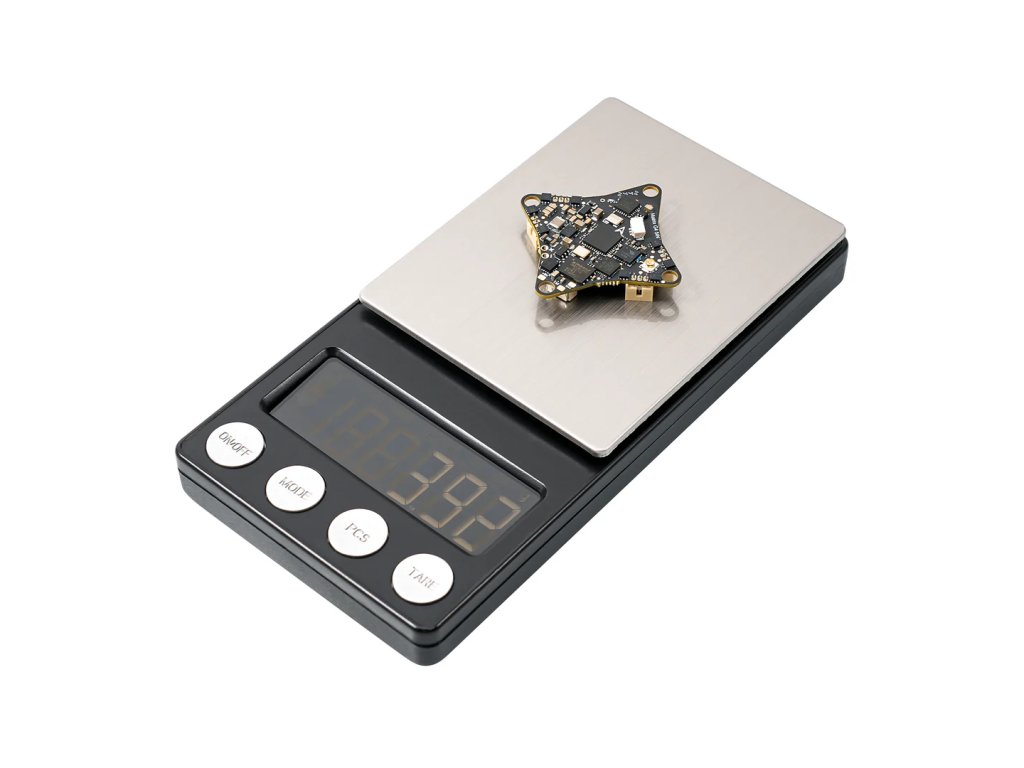

  • Weight: 3.92g

• ESC

  • Power Input: 1S
  • Continuous Current: 5A (8A peak)
  • Protocol: DShot300/600
  • Firmware: A_X_5_96KHz_V0.19.hex

• VTX

  • Power Output: 25/100/200/400mW
  • Frequency: 5.8GHz (48 channels, Raceband)
  • Control: SmartAudio2.0

• Build Details

  • Motor Plug: JST1.25
  • Battery Connector: BT2.0
  • Mounting Hole Size: 26mm x 26mm
