AIO FC BetaFPV Air Brushless (5 IN 1)

Product detailed description

AIO FC BetaFPV Air Brushless (5 IN 1)

The Air Brushless Flight Controller is the first 1S flight controller utilizing the STM32G473CEU6 processor, delivering a 55% increase in computing speed and ultra-responsive performance, surpassing the F411. Equipped with the industry-leading ICM42688P gyro and a built-in 5.8G VTX with power output options from 25 mW to 400 mW, 5IN1 (3.6 g) versions, elevating your drone's precision in movement and stability to new heights. Designed for ultralight 1S whoop drones, it provides finger-tip control for unmatched value and performance, leaving most competitors behind.

Specifications

Flight Controller (FC)

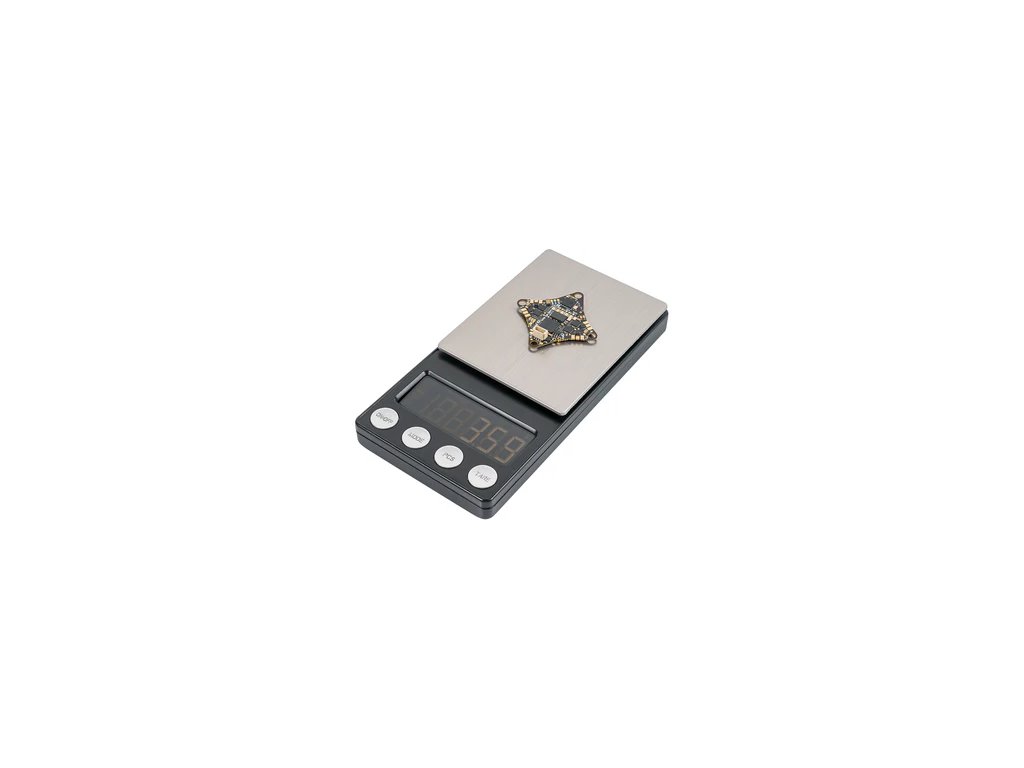

• Weight: 3.6 g (5IN1 Version)
• Mounting Hole Size: 26 mm x 26 mm
• CPU: STM32G473CEU6 (168 MHz)
• Six-Axis Gyro: ICM42688P (SPI connection)
• Blackbox Memory: 16 MB
• Sensors: Voltage & Current
• 5V BEC: 5V 3A
• USB Port: SH1.0 4-Pin
• Built-in ESC: 5A continuous
• Receiver (RX): Serial ELRS 2.4G (V3.4.3) (only for 5IN1 Version)
• 5IN1 Version: FC + ESC + OSD + VTX + RX

Electronic Speed Controller (ESC)

• Input Voltage: 1S
• FC Firmware: Betaflight_4.5.0_BETAFPVG473
• ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
• Supported Signals: D-shot300, D-shot600

Video Transmitter (VTX)

• Output Power: 25/100/200/400/PIT
• Frequency: 5.8 GHz, 48 channels (Raceband: 5658~5917 MHz)
• Channel Selection: SmartAudio2.0
• Modulation: FM
• Frequency Control: PLL
• Frequency Stability: ±100 kHz (Typ.)
• Frequency Precision: ±200 kHz (Typ.)
• Channel Carrier Error: ±1.5 dB
• Antenna Port: 50 Ω
• Operating Temperature: -10 ℃ to +80 ℃

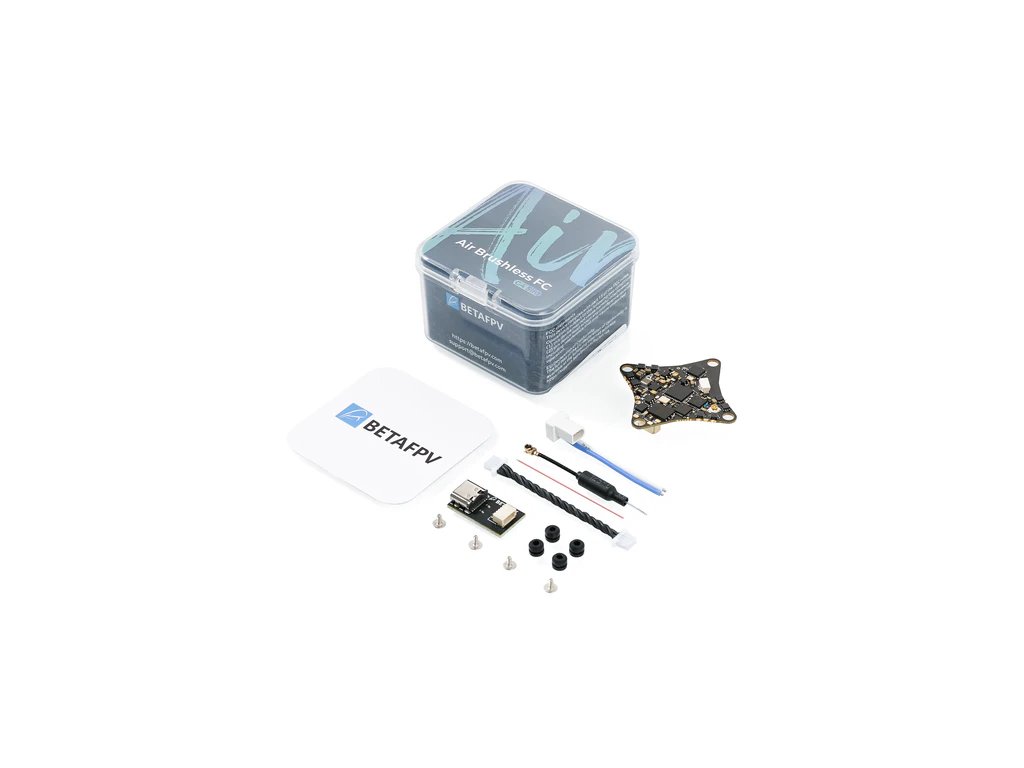

Package Contents

• 1 x Air Brushless Flight Controller
• 1 x 2.4g Antenna (only for 5IN1 Version)
• 1 x Type-C to SH1.0 Adapter
• 1 x SH1.0 4-Pin Adapter Cable
• 1 x 5.8g VTX Antenna
• 1 x BT2.0 U Whoop Cable Pigtail (40 mm)
• 4 x Self-tapping Screws M1.4*4
• 4 x Shock Absorbing Balls
