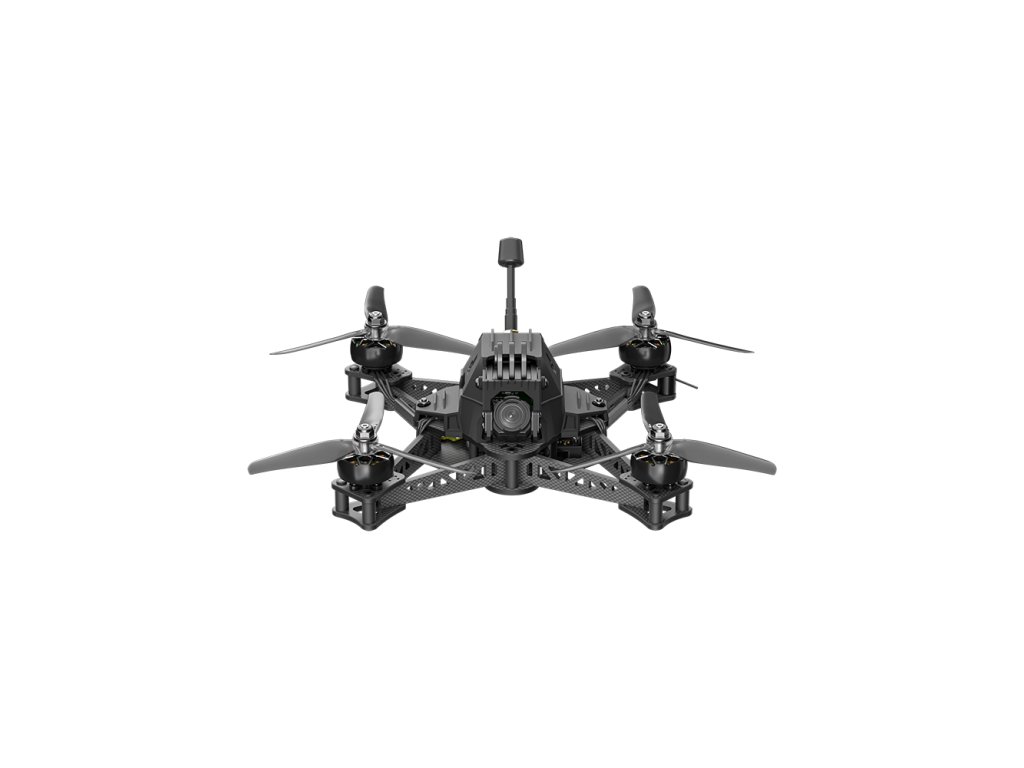

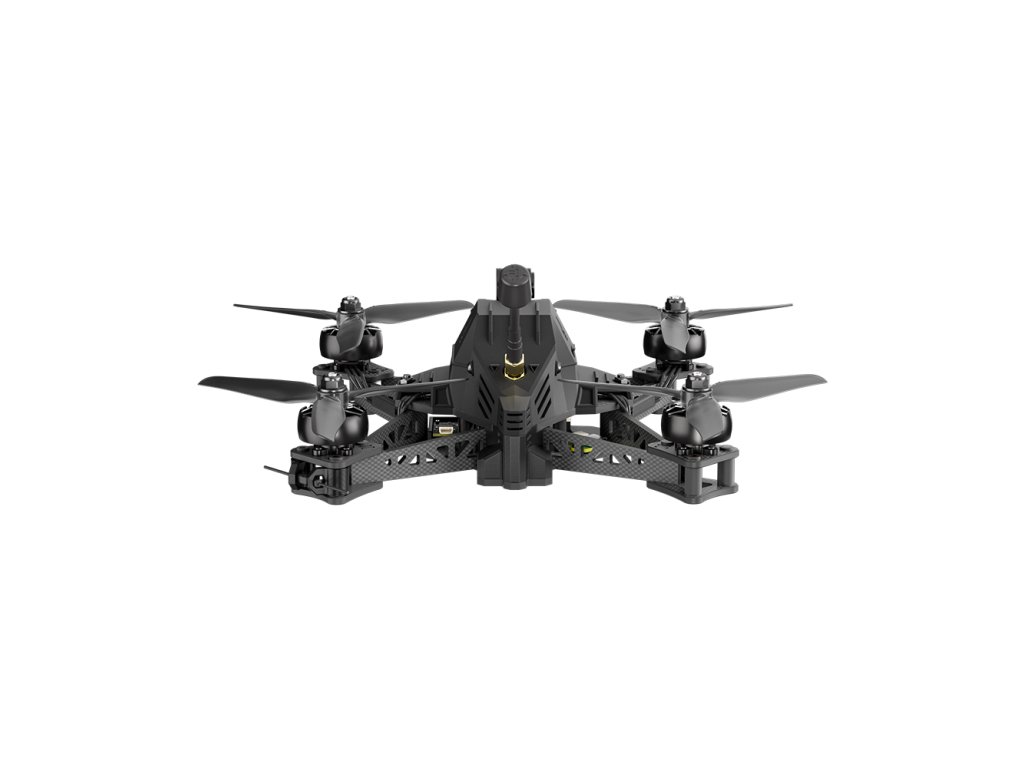

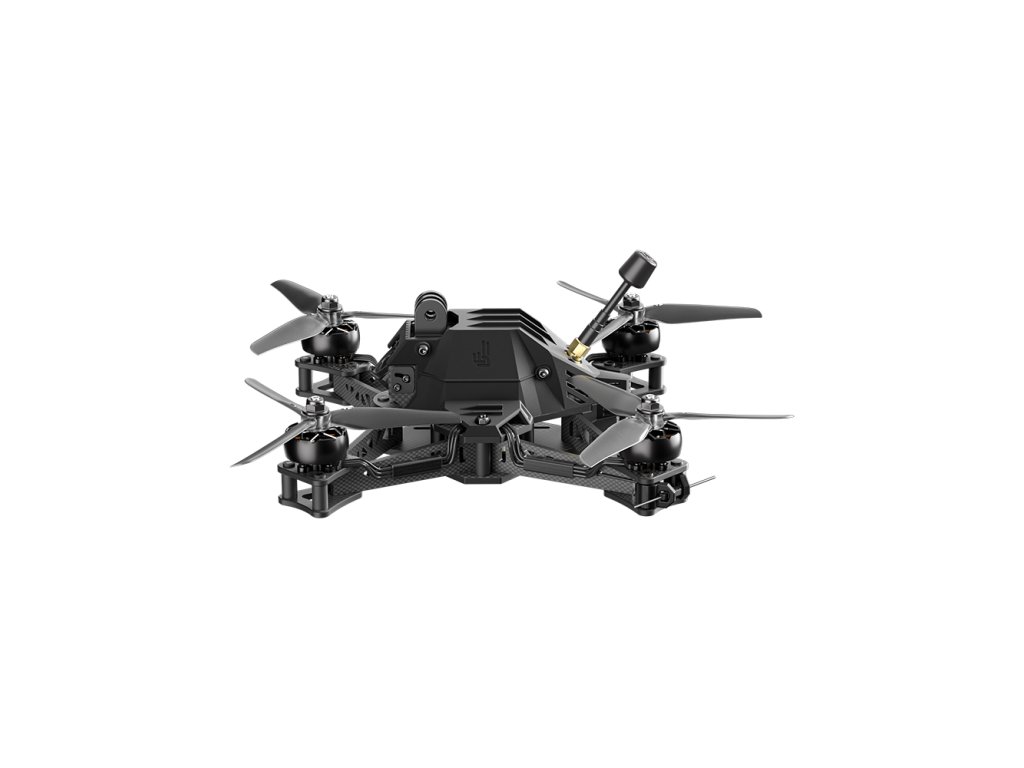

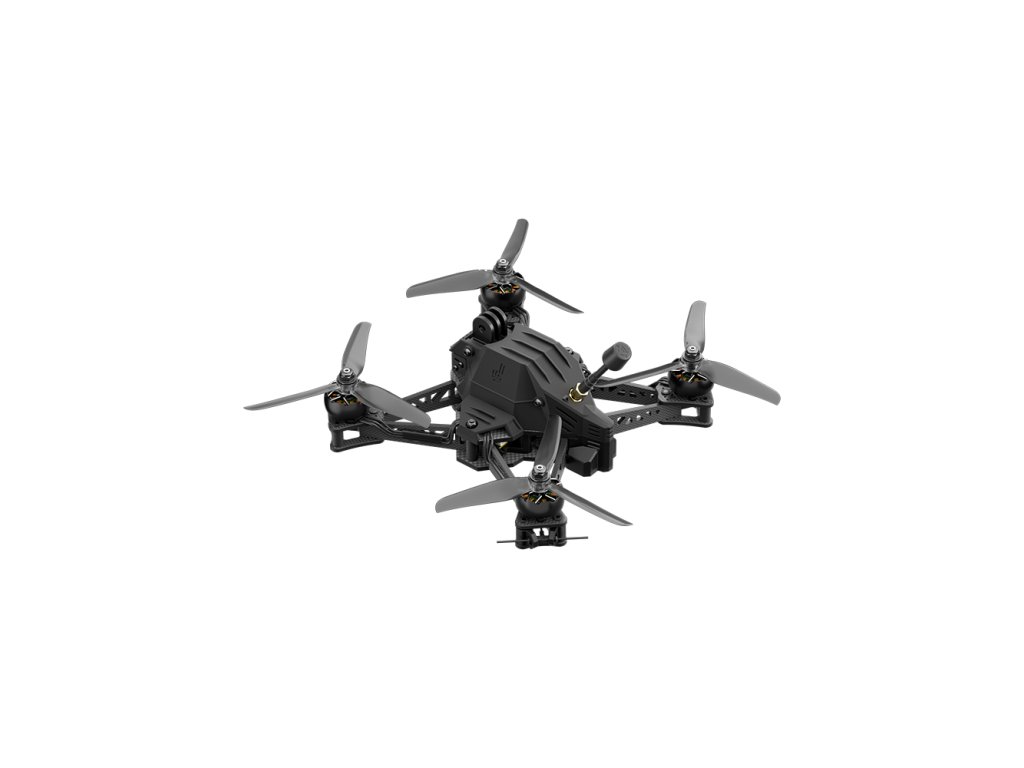

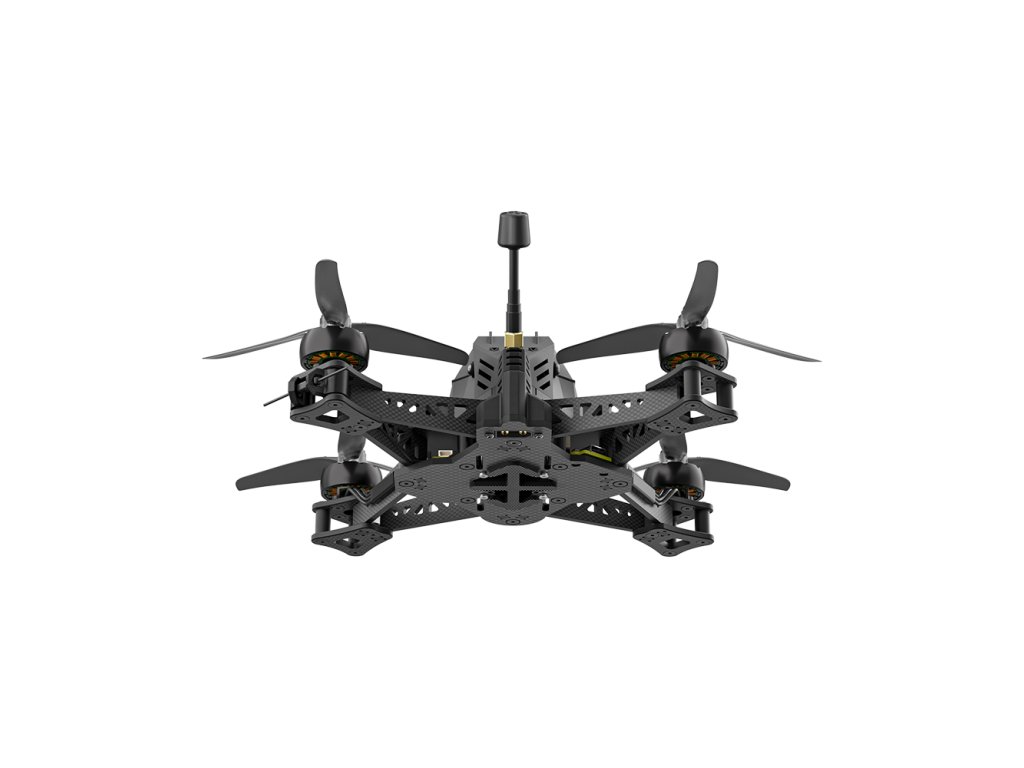

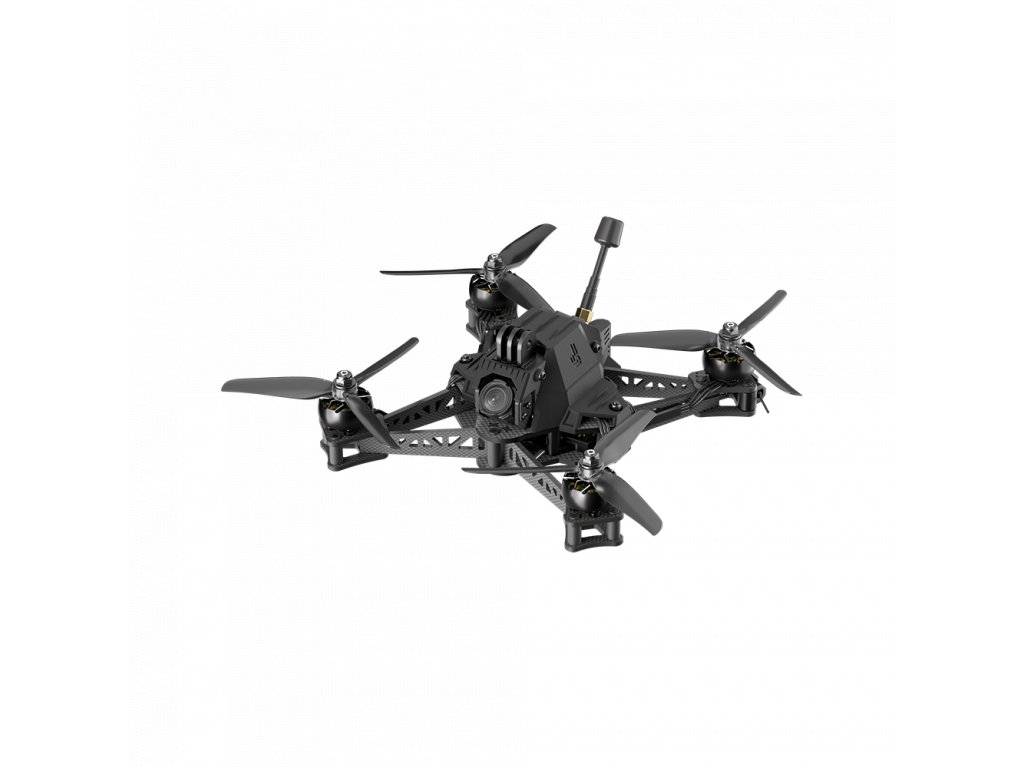

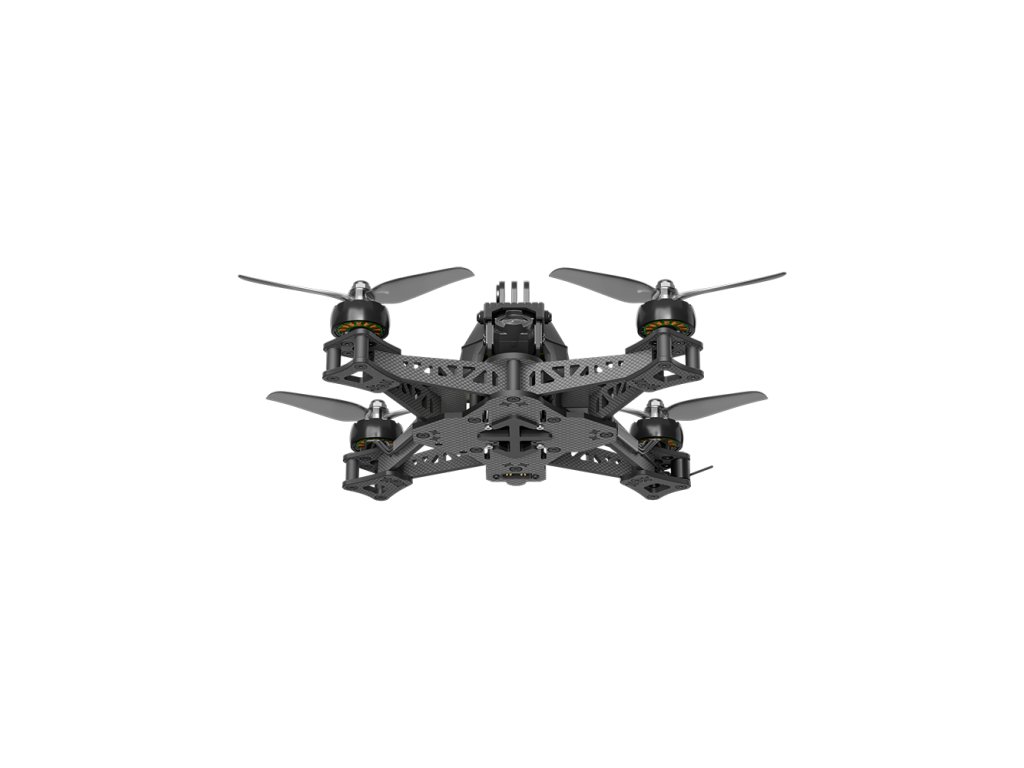

FPV Drone iFlight Afterburner 5 HD O3 Air Unit 6S BNF (No receiver)

Product detailed description

Afterburner 5 HD O3 Air Unit 6S (No receiver)

Features:

- Afterburner has a 20% smaller footprint than traditional 5inch freestyle frames, this allows for easier transportation as well as increased agility and less drag - meaning better all round performance.

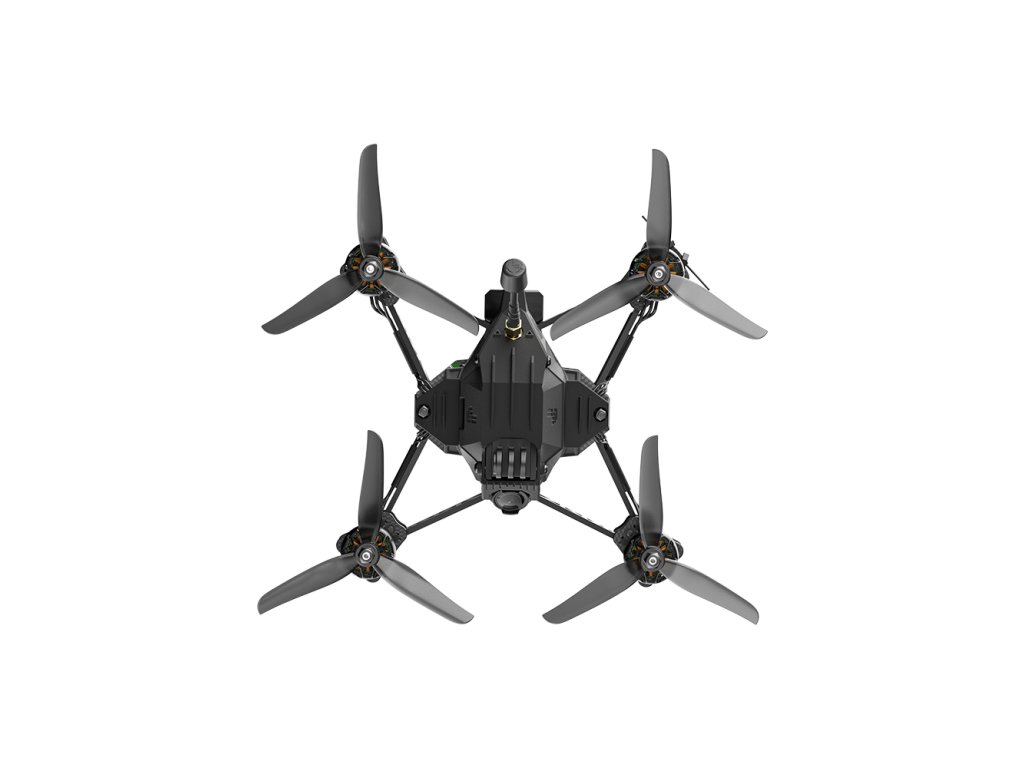

- The aeroshell controls the airflow around the body and within the drone.  As the speed of the drone increases the aero shell acts as an air divider, preventing air from hitting the flat top plate. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

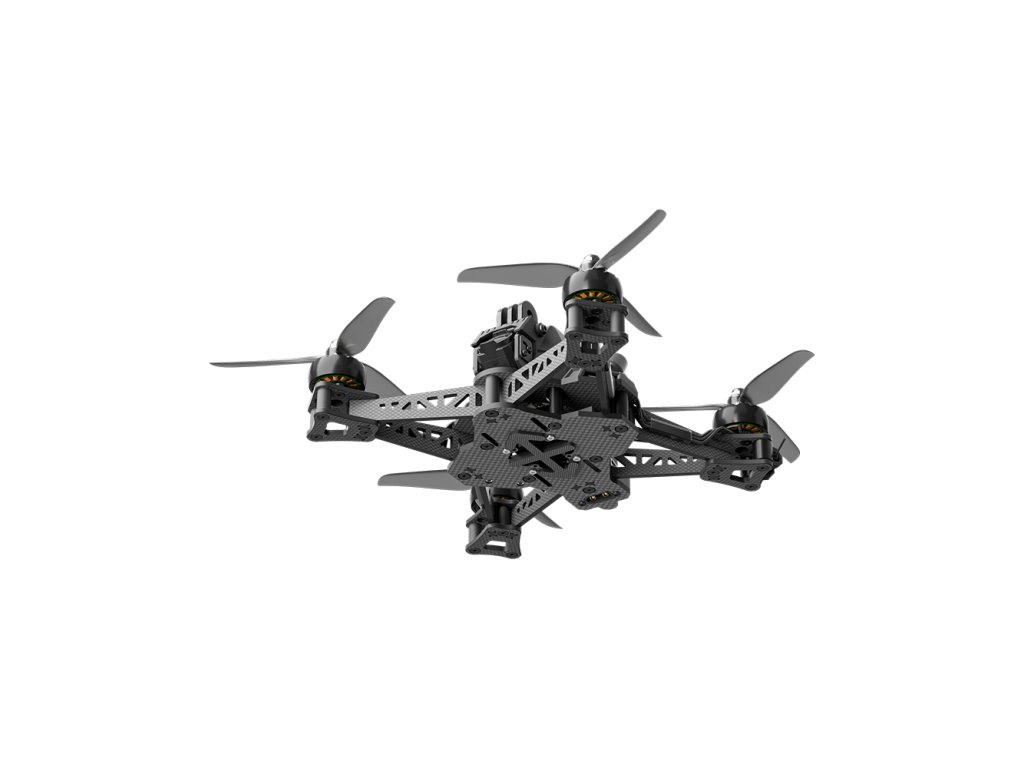

- The star design combined with the trusses ensures great stiffness while keeping the weight down, and perfect balance, delivering exceptional results when it comes to filming with buttery footage.

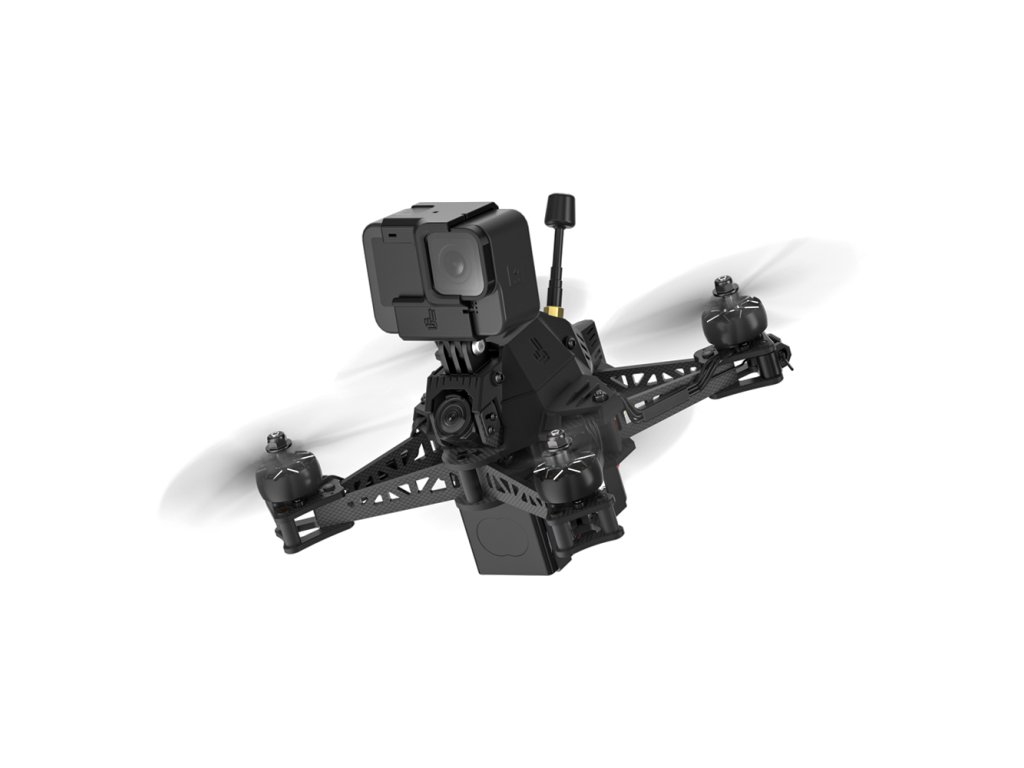

- Bottom Mount Battery. It allows to cause minimal drag possible and completely clears the top of the drone to allow for the Gopro mounting as well as clear line of sight for the GPS.
- No Prop in view with Gopro.
- DJI O3 HD Air Unit Low-Latency Digital Transmission.
- 4K Stabilized Video with 155° Ultra-Wide Angle.
- GPS Module Pre-install.

Specifications:

Product Name: Afterburner 5 O3 6S HD
Receiver Option: No additional receiver
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Geometry: X-Frame
Frame: 210 mm wheelbase
Motor: XING2 2207 1750KV motors
Prop: GEMFAN 5.1X3.6X3 propellers
Weight: 472±7g (Without Battery)
Dimensions (L×W×H): 148x148x64mm
Max Speed: 160km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 11mins with 6S Lipo 1400mAh battery W/O Load
Operating Temperature Range: -10° to 40° C
Antennas: Single Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission
Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
-810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
-810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
-1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
-1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Package Includes:
1 x Afterburner 5 O3 6S HD (No Receiver)
1 x Screw Bag
2 x Battery Strap
2 x Battery pads
