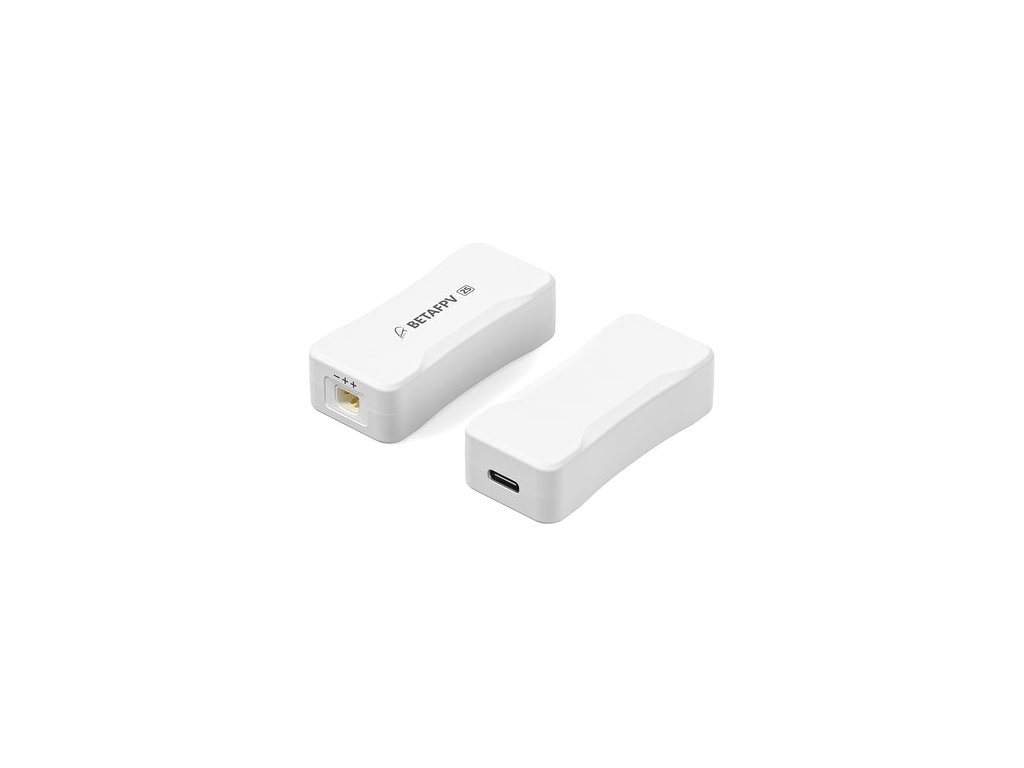

2S Battery Charger BT3.0

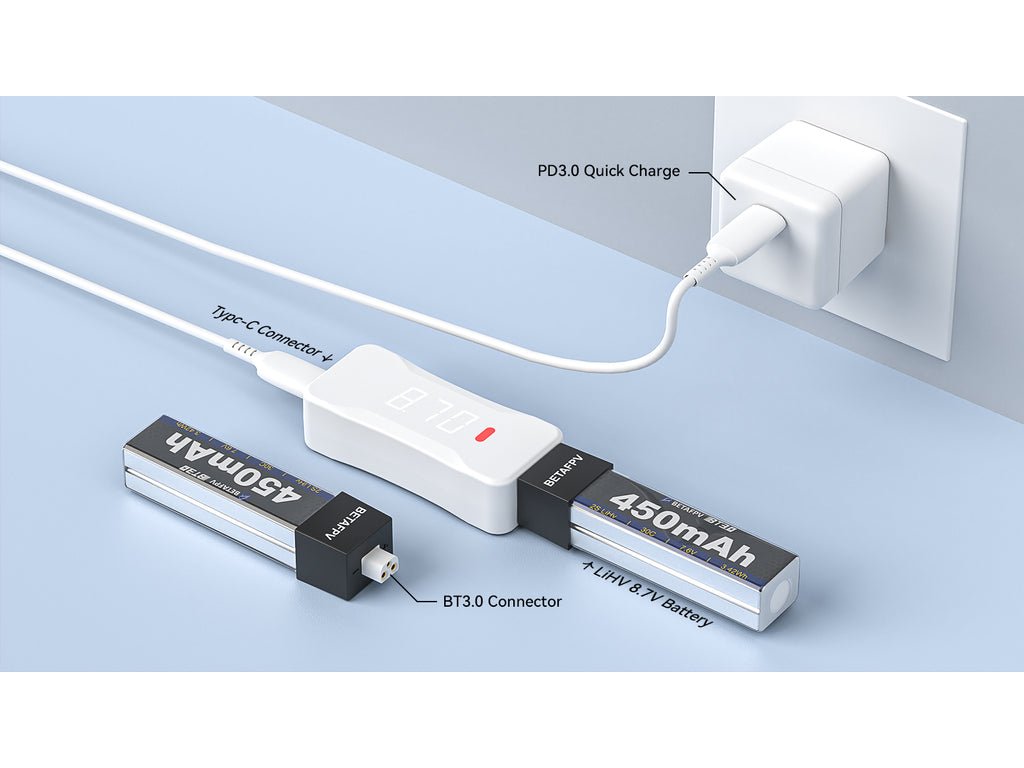

BETAFPV offers 2 versions of the 2S Battery Charger and Voltage Tester, each with different ports - BT3.0 and XH2.54 - capable of charging both LiHV 8.7V and LiPo 8.4V batteries. Not only does it have a digital display function, but it also features 2S battery voltage monitoring capabilities. Additionally, it supports the PD3.0 fast charging protocol. This compact and portable charger is fully functional and user-friendly, and caters to the charging needs of 2S quadcopter enthusiasts, empowering them to recharge their batteries anytime, anywhere.
This charger is designed to charge 2S LiHV batteries(8.7V) with a BT3.0 battery port. Please note that attempting to charge 2S LiPo batteries(8.4V) may pose a risk of overcharging. To ensure safe and optimal charging, we recommend using it with the BETAFPV BT3.0 450mAh 2S LiHV battery. During the charging process, if the digital display shows a voltage exceeding 8.7V (e.g. 9V), please disconnect the power supply immediately and check if there is any issue with the battery or the charger.
Note: LiHV(8.7V) stands for High Voltage Lithium Polymer 2S batteries and LiPo(8.4V) stands for Normal Lithium Polymer Batteries.
Specifications
Battery Type: BT3.0-LiHV(charging voltage:8.7V)
Product Color: White
Input Interface: Type-C USB
Input Voltage Range: 5-12V
Input Power: Maximum 15W
Maximum Input Current: 2.5A
Charging Protocol: PD3.0

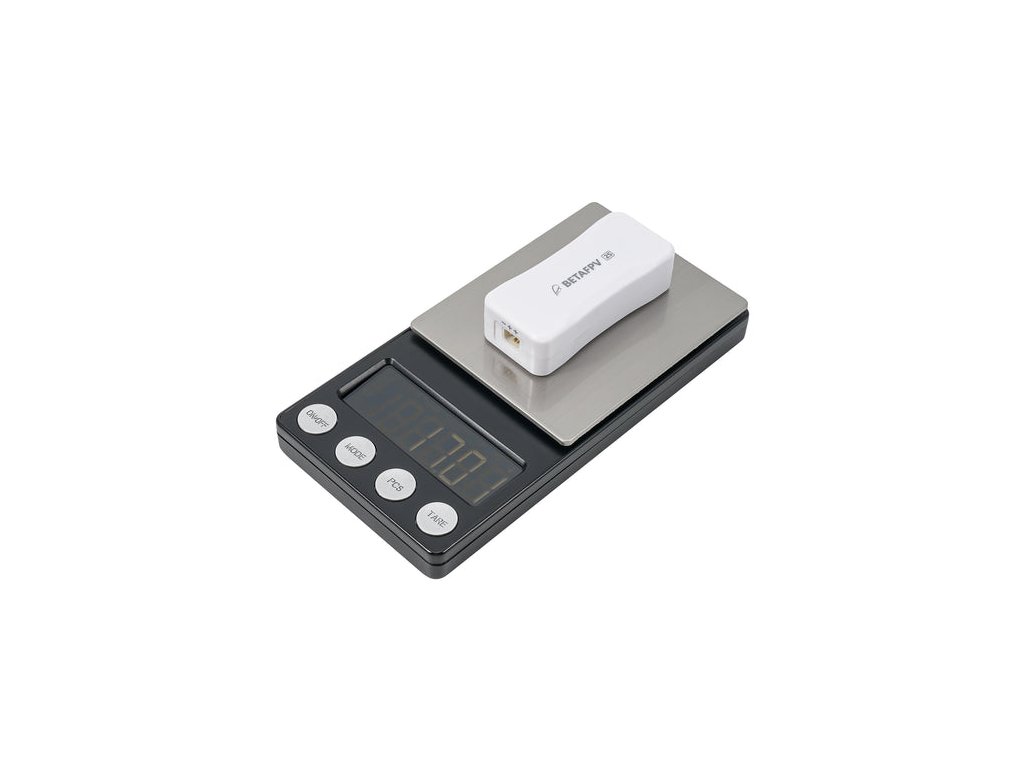

Weight (per charger): 17.0±1.0g
Dimensions (L×W ×H): 61*25*17mm
Battery Capacity Display: LED Digital Display displays the total voltage and individual cell voltage of the 2S battery.
Usage Notes:
- Please note the polarity markings on the device and do not connect the charger in reverse polarity.
- The 2S Battery Charger and Voltage Tester only supports charging for 2S batteries, not 1S batteries.
- The charger can only charge one battery at a time and is not designed for charging two or more batteries simultaneously.
Package Includes:
1 * 2S Battery Charger and Voltage Tester BT3.0
1 * 70*50mm Manual in Chinese and English
1 * 100*150mm Anti-static Bag
1 * Service Card/pre>
