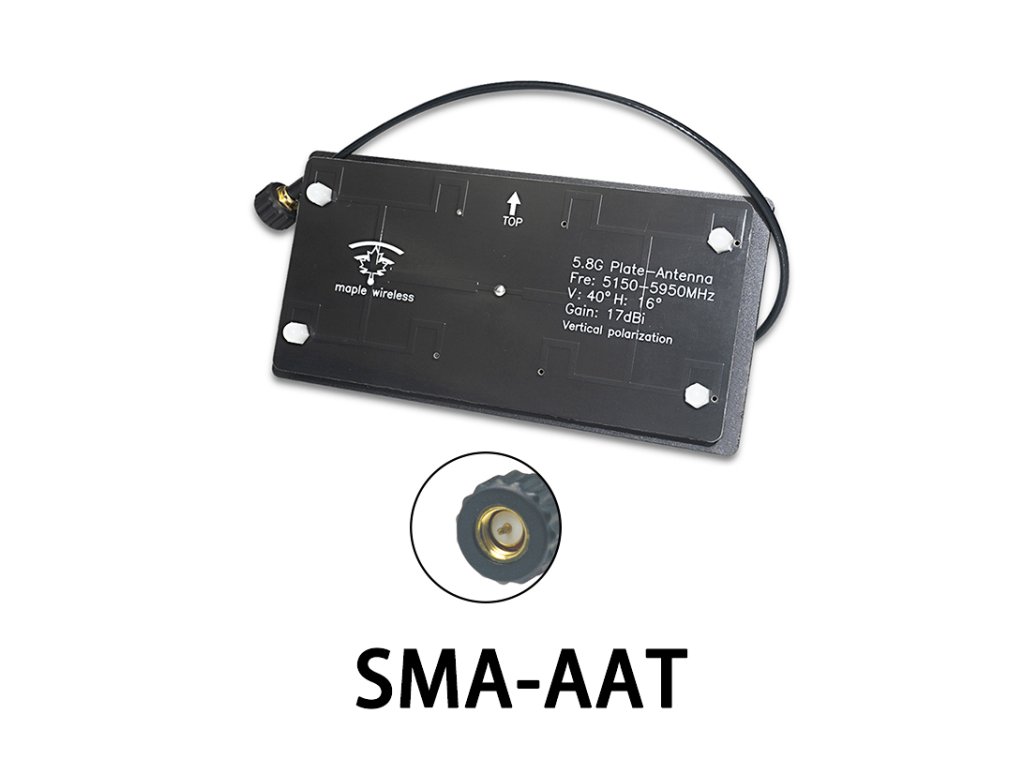

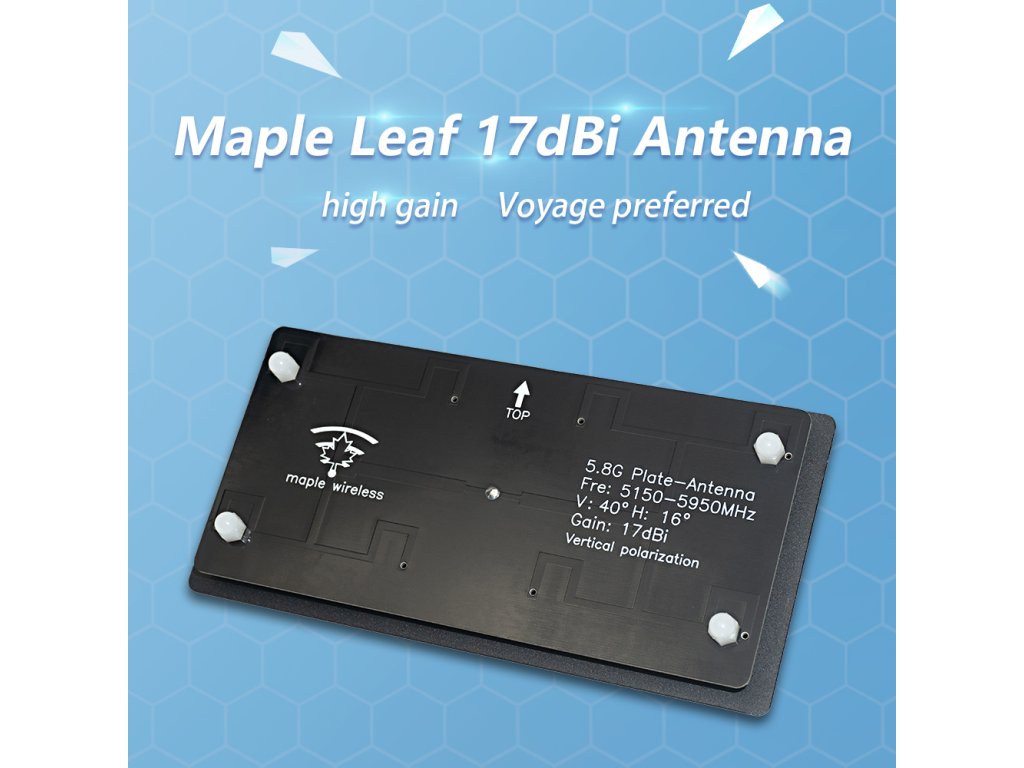

Antenna Maple Wireless 17dB directional (SMA-AAT)
Code: P003-SMA-AATProduct detailed description

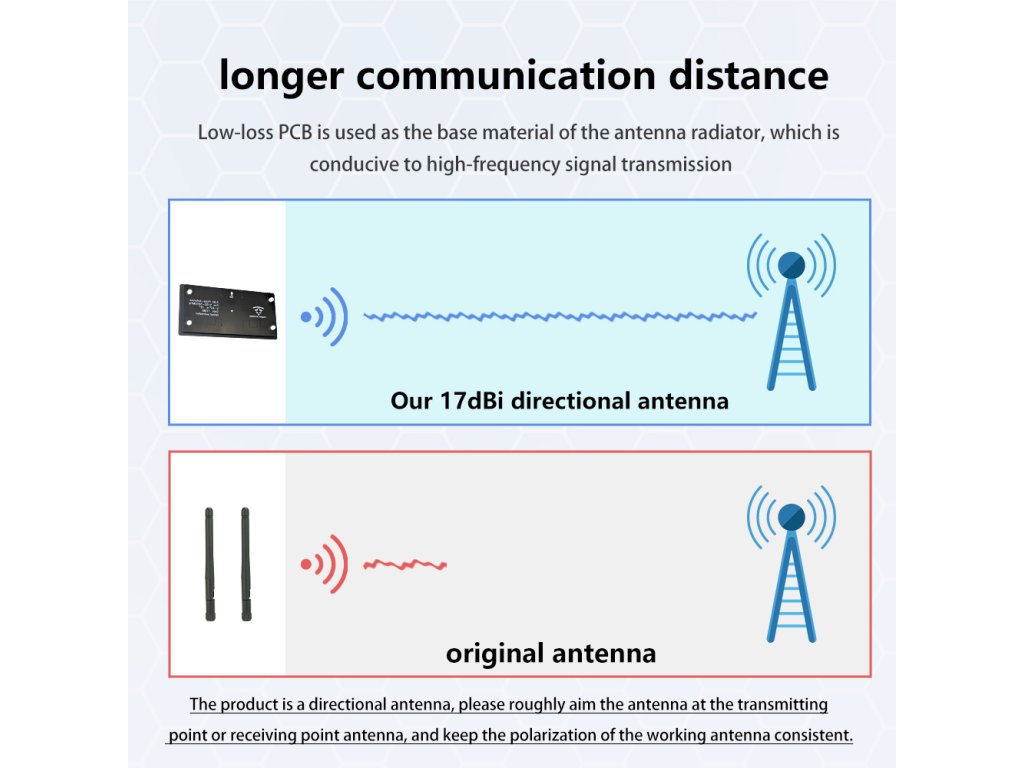

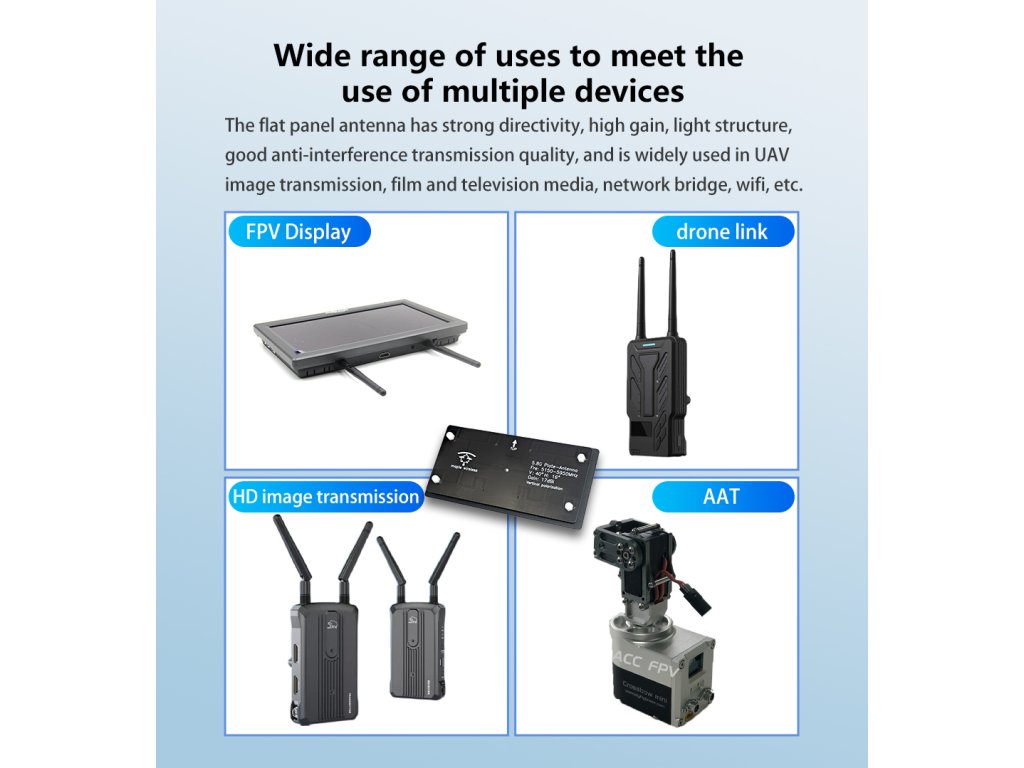

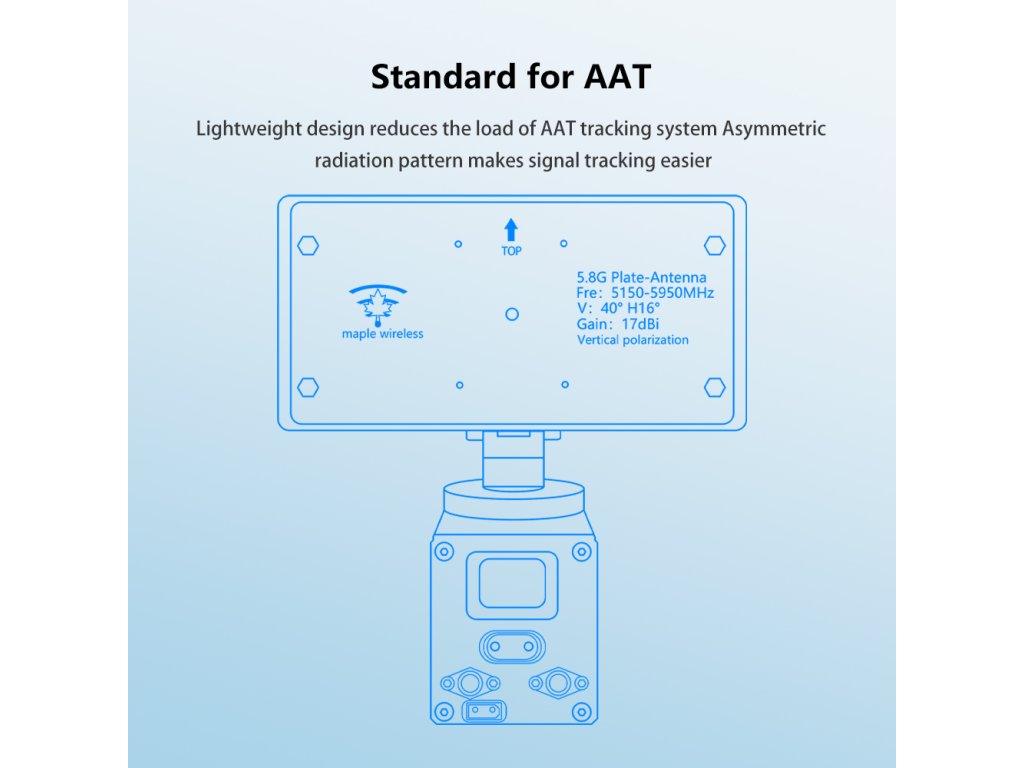

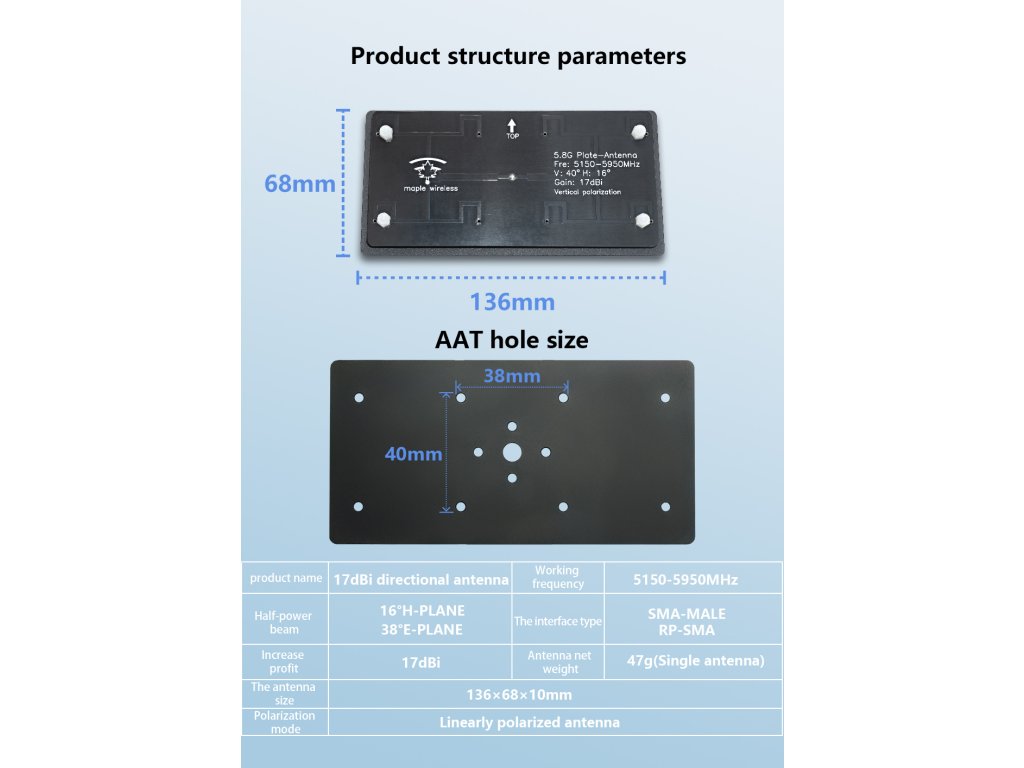

17dB directional antenna (SMA-AAT) The Maple 5.8G-17dB antenna is a high-gain directional antenna that is vertically polarized when the antenna is used parallel to the ground. The corresponding transmitting rod antenna also needs to be used vertically on the ground. After the increase of antenna gain, the horizontal azimuth Angle of the antenna is relatively narrow, about 16°, which has high requirements for users and is more suitable for long-distance or supporting closed-loop AAT work. Specifications: Frequency: 5.8G Gain: 17dBi Bandwidth: 5180-5950MHz Size: 136*68*10mm Package includes: 1x 17dB directional antenna (SMA-AAT)
Additional parameters
| Category: | Goggle Antennas |
|---|---|
| Connector Type: | SMA |
| Frequency: | 5.8GHz |
| Length: | 136mm |
| Polarization: | Linear polarization |
| The item has been sold out… | |
