Antenna Maple Wireless 17dB directional (RP-AAT)

Code: P003-RP-AAT
Not rated
€25,41 €21 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

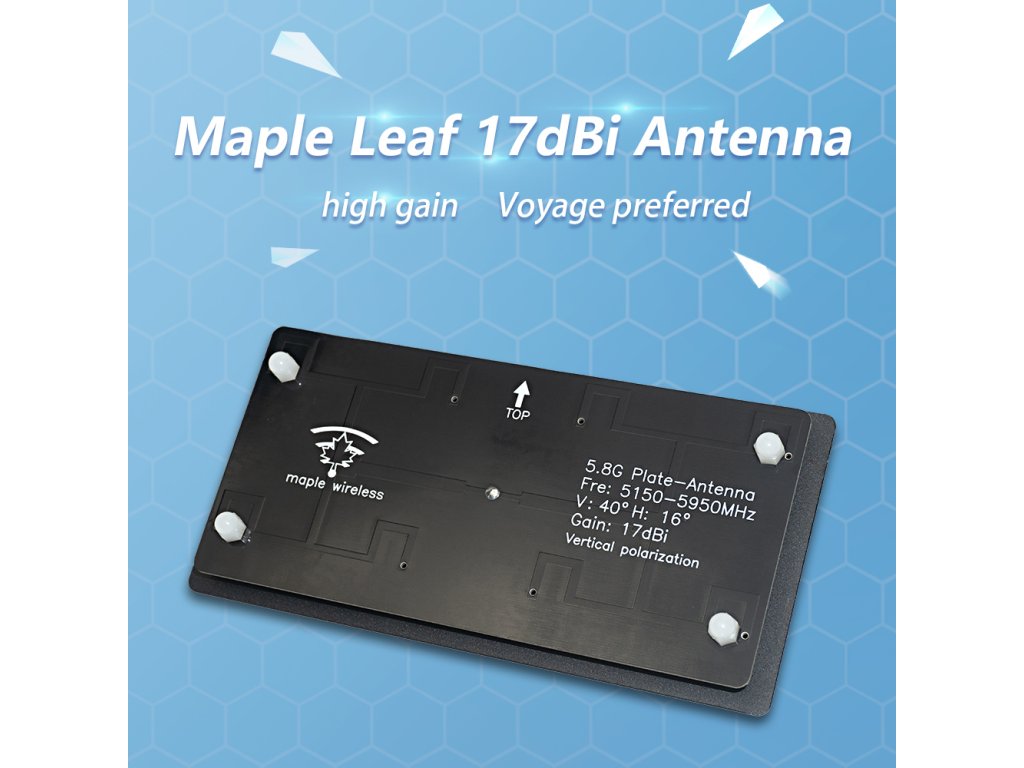

17dB directional antenna (RP-AAT)

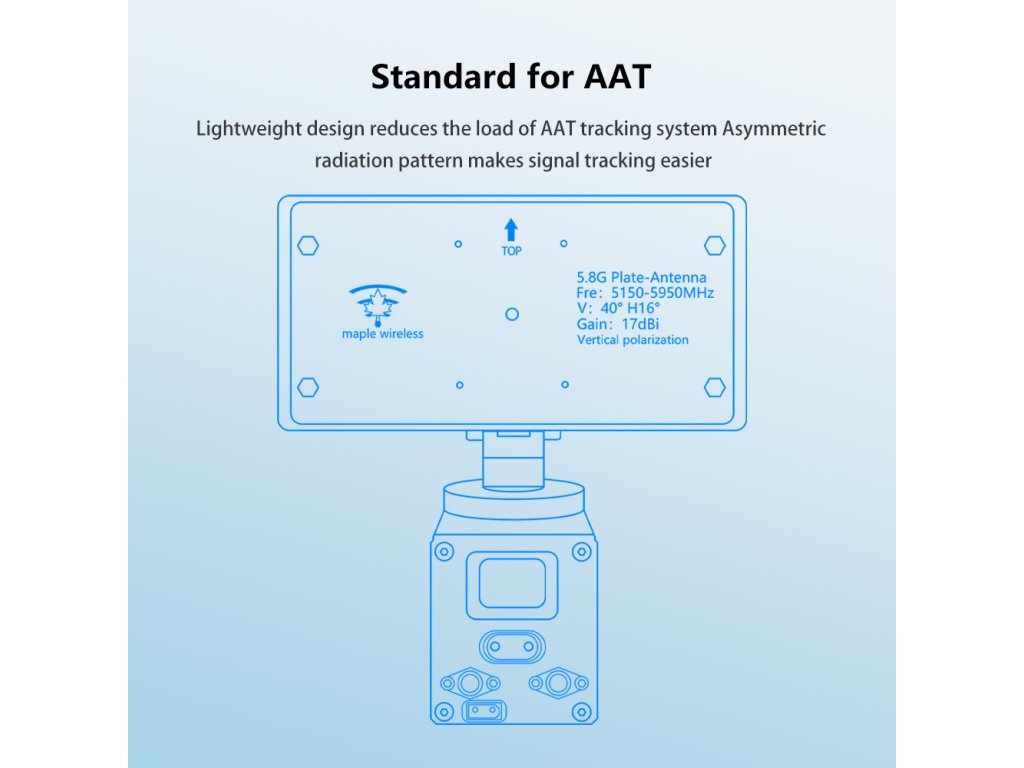

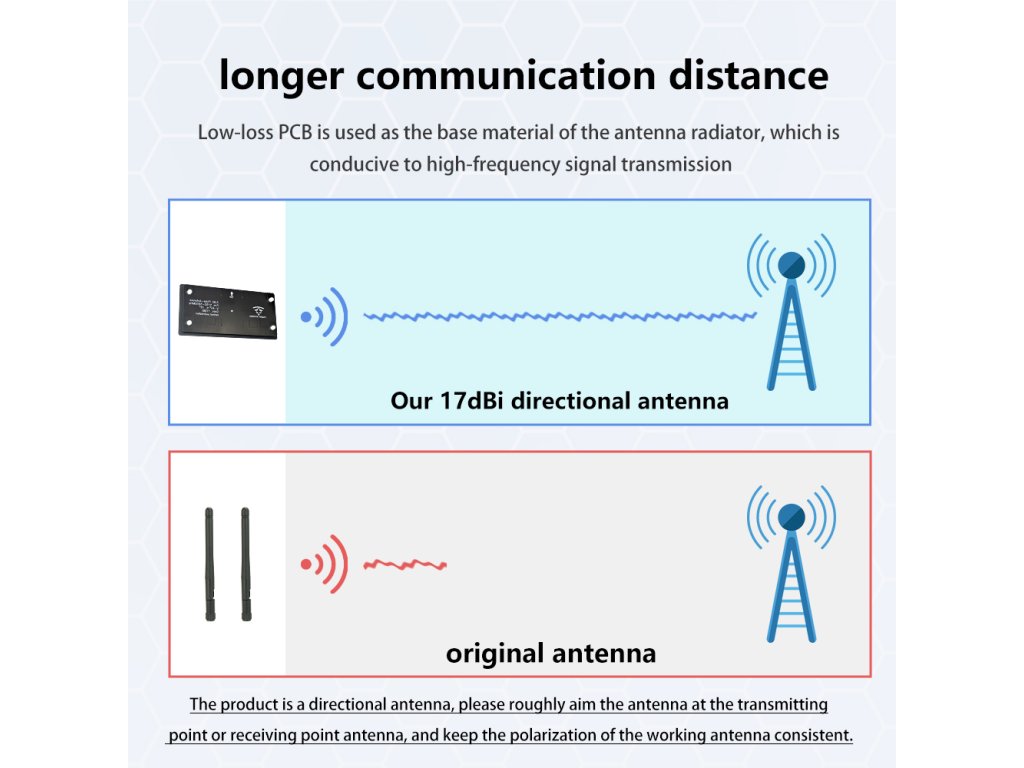

The Maple 5.8G-17dB antenna is a high-gain directional antenna that is vertically polarized when the antenna is used parallel to the ground. The corresponding transmitting rod antenna also needs to be used vertically on the ground. After the increase of antenna gain, the horizontal azimuth Angle of the antenna is relatively narrow, about 16°, which has high requirements for users and is more suitable for long-distance or supporting closed-loop AAT work.

Specifications:

Frequency: 5.8G
Gain: 17dBi
Bandwidth: 5180-5950MHz

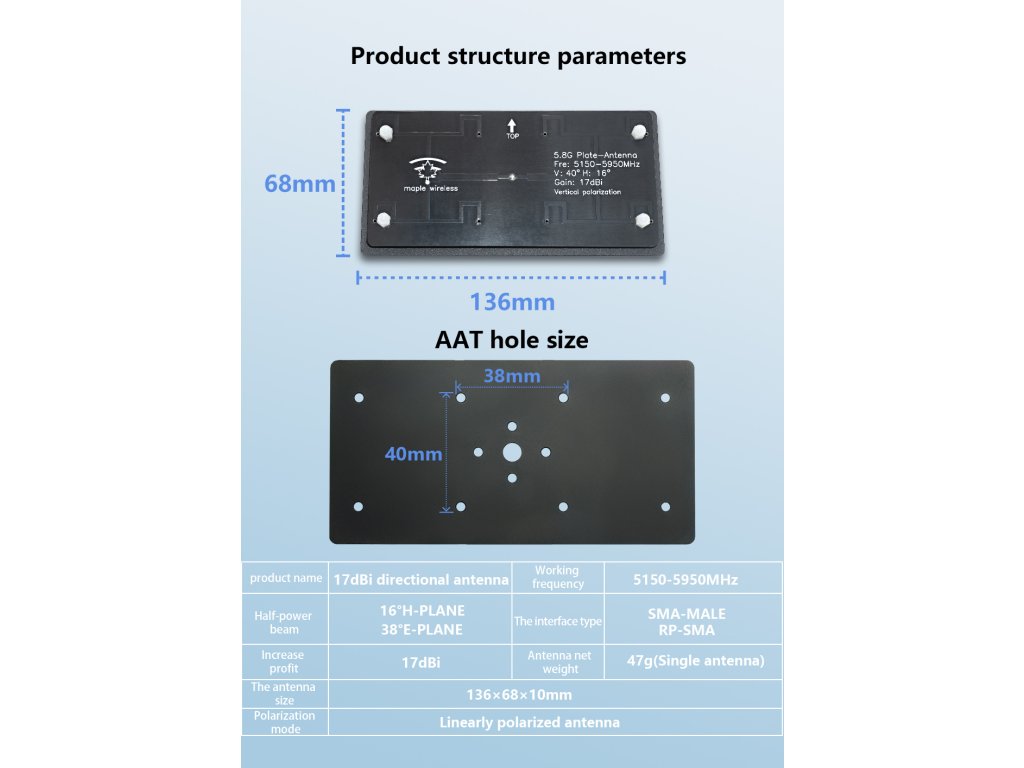

Size: 136*68*10mm

Package includes:
1x 17dB directional antenna (RP-AAT)

Additional parameters

Category: Goggle Antennas
Connector Type: RP-SMA
Frequency: 5.8GHz
Length: 136mm
Polarization: Linear polarization
