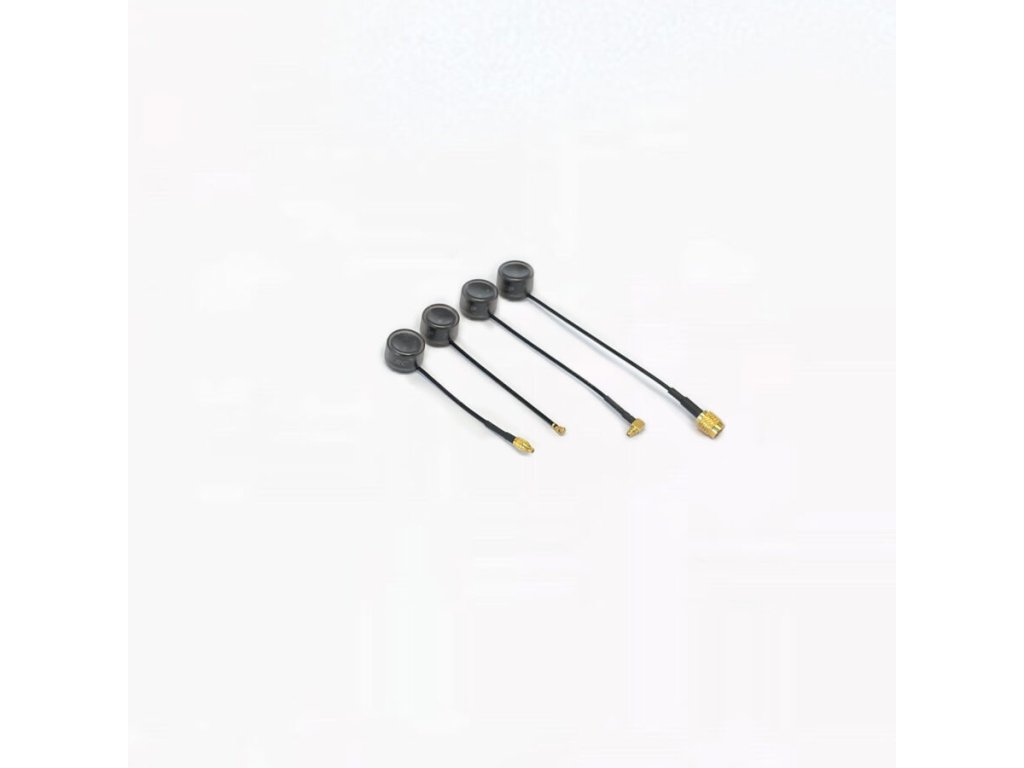

Antenna TrueRC CORE MMCX (LHCP, side feed)
Code: 0608597255522Product detailed description
CORE MMCX (LHCP, side feed) This is a special version of the CORE 5.8 omnidirectional antenna with side exit cable, great to bury inside an airplane’s wing or fuselage. Features: - Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing - Clear indication of polarization direction - Smooth radiation pattern with even gain in all directions - Excellent axial ratio and efficiency - Side exit cable for novel mounting options - Exclusive knurled True-SMA for easy tightening Specifications: Model: CORE 5.8 SIDE FEED Gain: 1.9dBic Connector&Cable Length: MMCX 85mm Polarization: LHCP Cross-Polar Rejection: -10 to -20dB, (3.2%) Bandwidth: 5.5GHz-6.1GHz Radiation Efficiency: 98% SWR: <=1.2:1 Weight: Vary with connector/cable option Dimensions(head): 16.9mm dia. x 13.1mm height. Cable: TrueRC RG178 coax
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Length: | 100mm |
| Frequency: | 5.8GHz |
| Polarization: | LHCP |
| Connector Type: | MMCX |
| The item has been sold out… | |
