Controller Skydroid H30

Detailní popis produktu

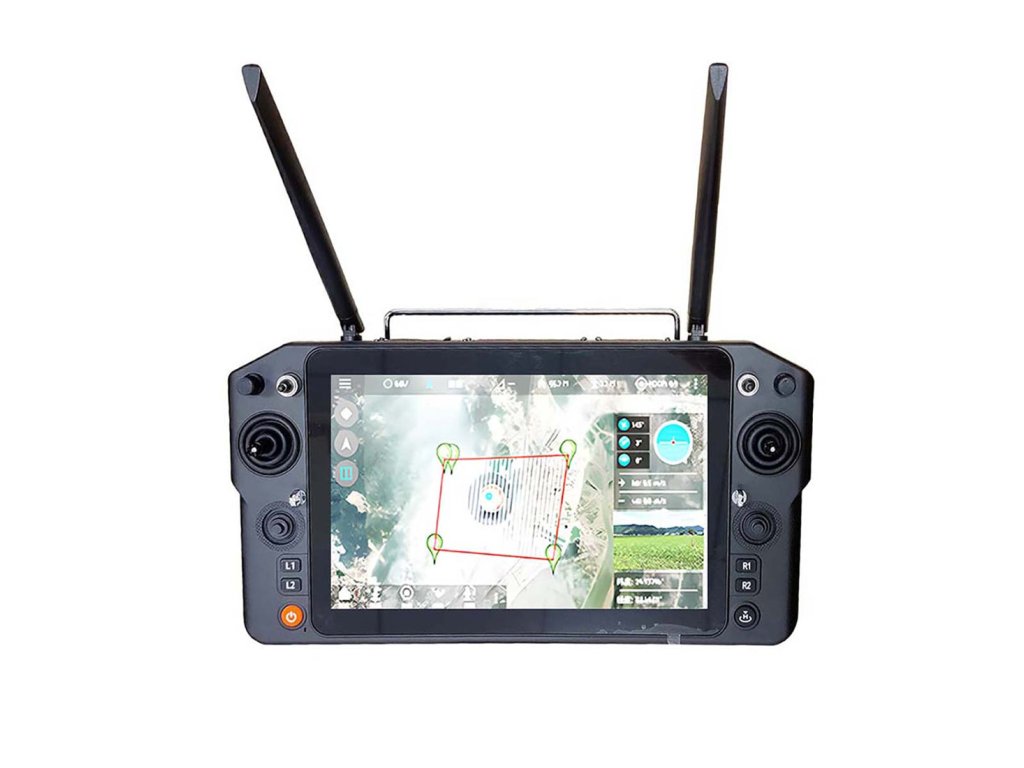

Remote Controller Skydroid H30

The Skydroid H30 Remote Controller is a high-performance solution designed for demanding applications in industrial, commercial, and unmanned systems. Powered by the Qualcomm 660 processor and running on the embedded Android 9.1 system, the H30 offers seamless integration, smoother operation, and enhanced functionality.

Key Features

- Equipped with a Qualcomm 660 processor for fast and reliable performance.
- Embedded Android 9.1. Provides an intuitive user interface with support for advanced features, including 3D mapping.
- Supports 1.4GHz / 2.4GHz / 800MHz frequencies. Offers low latency, long transmission range, and strong anti-interference capabilities.
- High-Definition Display. 10.1-inch industrial-grade sunlight-readable touchscreen. Dustproof and wear-resistant for durability in harsh environments.
- Extended Connectivity. Multiple ports for versatile usage: USB, 4G SIM slots, LAN, audio, HDMI, TF card, and TYPE-C interfaces.
- Long-Range Transmission. Maximum image transmission and control range of up to 10 km, ensuring reliable performance over long distances.
- Robust Build. IP67-rated protection for water and dust resistance.
A highly durable structure is suitable for tough working conditions.


Specifications:

Display: 10.1” Industrial Touchscreen + Sunlight Readable
Resolution: 1920 x 1200
RAM: 4G
Storage: 64G
Touch Panel: 10-Point Capacitive Touchscreen
Network Ports: 2 x RJ45
External Ports:
- 1 x USB
- 4G SIM Slot
- LAN Port
- Audio
- HDMI
- TF Card Slot
- TYPE-C
Serial Ports: 2 x TCP Socket
Charging Port: Type-C
Endurance: 5 Hours
Battery Capacity: 20000mAh
Antenna: Dual Antennas (1.4GHz / 2.4GHz / 800MHz)
Working Frequency: 1.4GHz / 2.4GHz / 800MHz
Transmission Power: 25dBM
Control Range: More than 10KM
Channels: 16 Channels
Auxiliary Channels and Controls:
- Main Joystick x2
- Sub Joystick x2
- Toggle Switch x4
- Rotary Switch x2
- Buttons x8
Processor: Qualcomm 660
Protection: IP67
Operating System: Android 9.1
Operating Temperature: -10°C - 55°C
Dimensions: 361mm (L) x 393.2mm (W) x 102.4mm (H)
Weight: 2KG

Package Includes:
1x Remote Controller Skydroid H30
