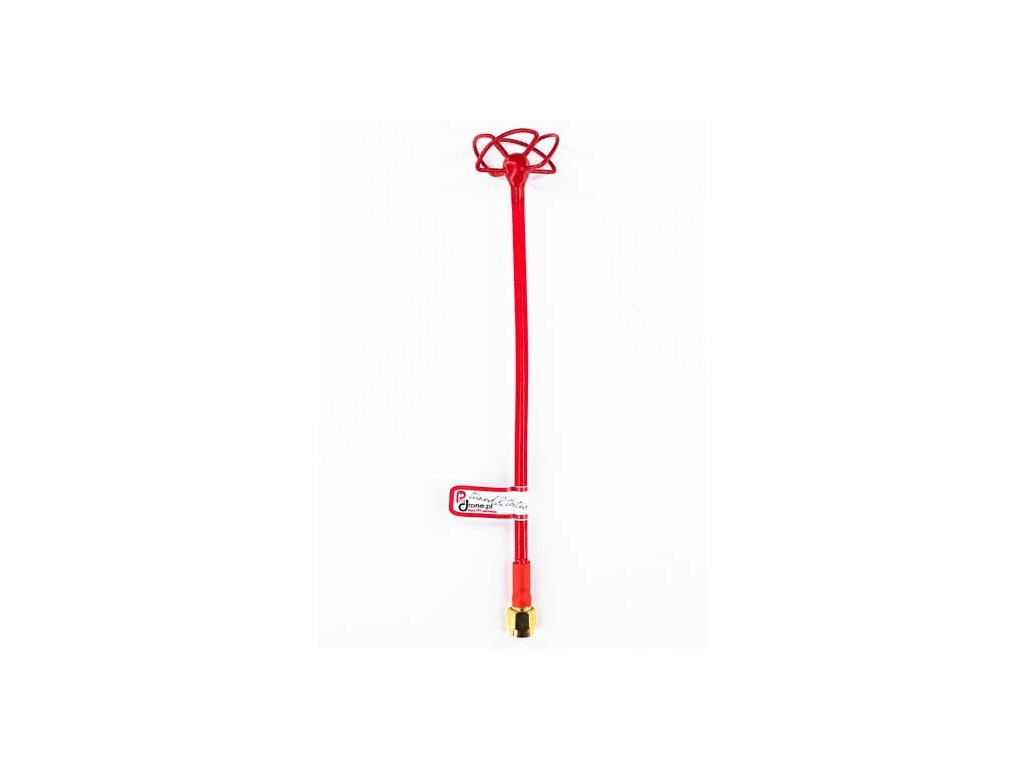

Antenna Prodrone Cloverleaf 5.8GHz SMA LHCP
Code: 11566Product detailed description
Antenna Prodrone Cloverleaf 5.8GHz SMA LHCP The Cloverleaf (SPW) Antenna with Long Cable (LHCP Version) is a 4-lobe circularly polarized RX antenna, designed for reliable FPV signal reception. It features omnidirectional coverage with a gain of approximately 2 dBi, ensuring stable performance across a 5640-5950 MHz bandwidth. The antenna is built with high-quality RG402 cables (mainly from Belden or Suhner), providing durability and minimal signal loss. With a cable length of ~13cm, it offers flexible mounting options. Specifications: Bandwidth: 5640-5950 MHz Omnidirectional antenna. Gain: 2 dBi Cable length: 13cm Antenna conductor: 1.2mm silver covered hardened pure copper wire Polarisation: LHCP vSWR: lower than 1.3 Connector: SMA Weight of antenna: 6g Package Includes: 1x Antenna Prodrone Cloverleaf 5.8GHz SMA LHCP
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Length: | 130mm |
| Frequency: | 5.8GHz |
| Polarization: | LHCP |
| Connector Type: | SMA |
